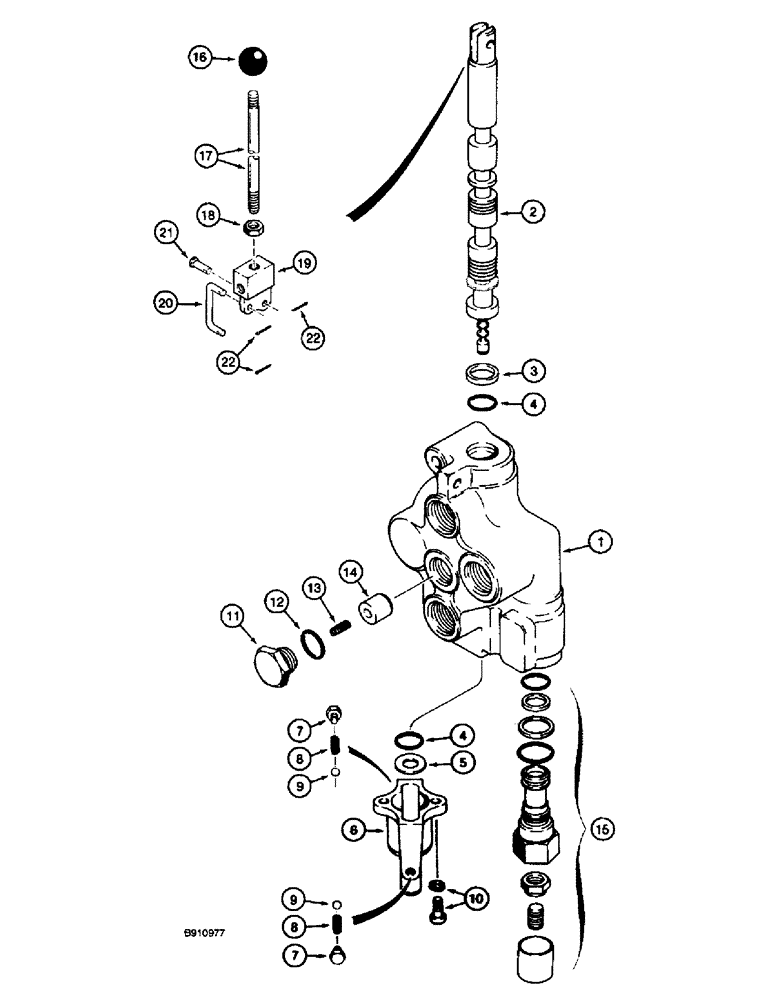

Запчасти Case 660 (8-114) - REMOTE HYDRAULIC CONTROL VALVE - H674317 (08) - HYDRAULICS

H674317

VALVE

ASSEMBLY - control, remote hydraulic, Hydra-Borer or hydraulic tool, no longer available, order 107081A1 control valve, see Fig. 8-115A, Includes: Ref. 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - control valve

1шт.

3

H438926

WIPER SEAL

WIPER - spool

1шт.

4

H438030

O-RING

- spool

2шт.

H674863

DETENT

ASSEMBLY - control valve, Includes: Ref. 5 - 10

1шт.

5

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

6

N9540

COVER

HOUSING - detent

1шт.

7

N9505

ADJUSTMENT SCREW,5/16" - 24 x 3/16"

- detent

2шт.

8

N9506

COIL SPRING

SPRING - detent

2шт.

9

NSS

NOT SOLD SEPARAT

BALL - steel

2шт.

10

NSS

NOT SOLD SEPARAT

SCREW - with lockwasher

2шт.

H673572

KIT

- load check, Includes: Ref. 11 - 14

1шт.

11

NSS

NOT SOLD SEPARAT

PLUG - load check, Includes: Ref. 12

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

13

NSS

NOT SOLD SEPARAT

SPRING - load check

1шт.

14

NSS

NOT SOLD SEPARAT

POPPET - load check

1шт.

15

H438925

VALVE, PRESSURE RELI

VALVE ASSEMBLY - relief

1шт.

16

A14051

GRIP

KNOB - control lever

1шт.

17

H438923

HANDLE

ROD - control lever

1шт.

18

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

1шт.

19

H438924

BLOCK

- pivot

1шт.

20

H438042

ARM

LINK - C-type

1шт.

21

427-4077

CLEVIS PIN,1/4" x .770"

PIN, CLEVIS, , Hardened 1/4" x .770"

1шт.

22

432-412

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

3шт.
