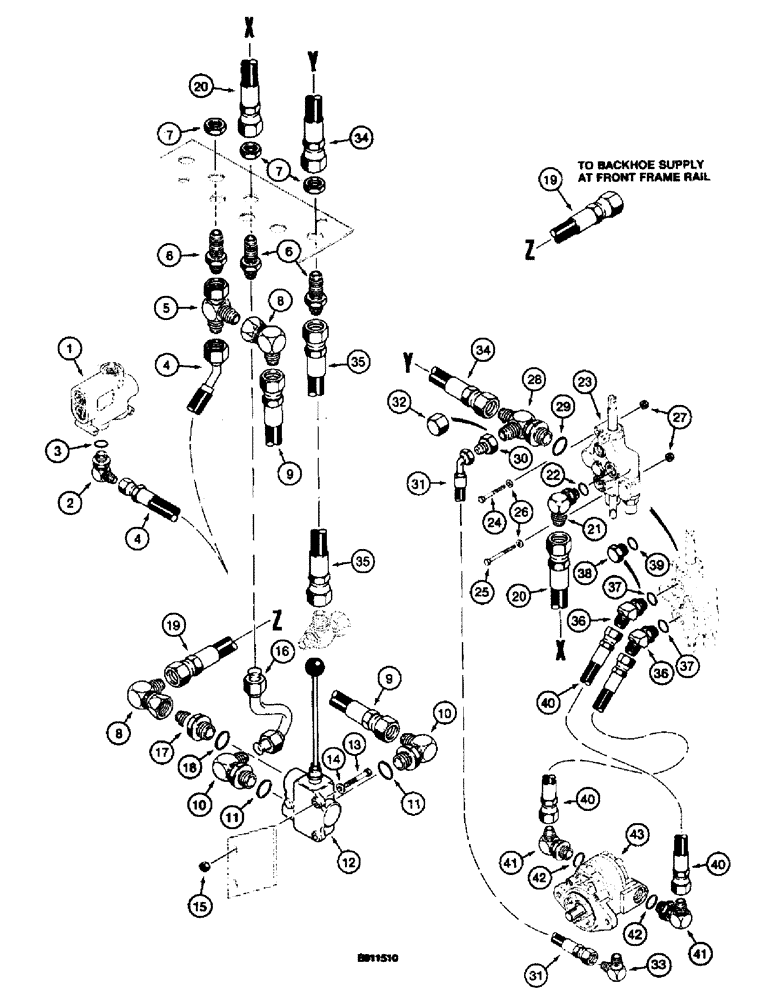

Запчасти Case 660 (8-106) - HYDRA-BORER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

H672904

VALVE

ASSEMBLY - priority flow divider, parts list Fig. 5-14

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

H438111

HOSE ASSY.

HOSE - 381 mm (15 inch) long, prority flow divider valve to tee at rear bulkhead plate

1шт.

5

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

- 1-1/16-12 inch flare branch x flare x swivel

1шт.

6

218-676

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

ADAPTER - straight, 1-1/16-12 inch flare x bulkhead flare

3шт.

7

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, bulkhead, 1-1/16 inch NF

3шт.

8

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 inch flare x swivel

2шт.

9

D55773

HOSE

- 521 mm (20-1/2 inch) long, bulkhead tee to selector valve inlet

1шт.

10

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, 1-1/16-12 flare x 1-5/16-12 inch adj O-ring boss, Includes: Ref. 11

2шт.

11

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

12

L55038

VALVE

ASSEMBLY - selector, Hydra-Borer and backhoe, parts list Fig. 8-112

1шт.

13

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

2шт.

14

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

15

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

2шт.

16

H674700

TUBE,19.1 mm OD

- supply, "A" port of selector valve to remote hydraulic control valve

1шт.

17

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 1-5/16-12 inch O-ring boss

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

19

H439345

HOSE

- 2032 mm (80 inch) long, port "B" of selector valve to backhoe supply connection at front frame rail

1шт.

20

H439238

HOSE

- 686 mm (27 inch) long, supply , port "A"of selector valve to inlet port of remote hydraulic control valve

1шт.

21

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 1-1/16-12 flare x 7/8-14 inch adj O-ring boss, Includes: Ref. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

23

REF

INSTRUCTION

VALVE ASSEMBLY - control, remote hydraulic, Hydra-Borer or backhoe, see Fig. 8-114 or 8-115A for correct assembly and components

1шт.

24

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

1шт.

25

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

1шт.

26

H426775

WASHER

- flat, special, hardened

2шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

28

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 1-1/16-12 inch flare branch x flare x adj O-ring boss

1шт.

29

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

30

218-795

REDUCER,37 Degree, 3/4" x 3/8" Tube

ADAPTER - reducing, 3/4 tube OD x 9/16-18 inch flare

1шт.

31

H438496

HOSE

- 1380 mm (54-5/16 inch) long, motor case drain to return tee at valve

1шт.

32

218-754

CAP,37 Degree, 9/16"-18

- hex, 9/16-18 inch, installed on item 30 when Hydra-Borer attachment is not used, if used

1шт.

33

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 3/4-16 flare x 1/2 inch PT, case drain hose to motor

1шт.

34

H439239

HOSE

- 482 mm (19 inch) long, return, remote control, Serial Range: valve-bulkhead

1шт.

35

H438142

HOSE

- 560 mm (22 inch) long, return, Serial Range: bulkhead-tee

1шт.

36

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref 36

2шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

38

86512512

PLUG,7/8" - 14 ORB

- hex, 7/8-14 inch O-ring boss, Installed in control valve when Hydra-Borer is not used

2шт.

39

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

40

D20358

HOSE

- 1168 mm (46 inch) long, control valve to Hydra-Borer drive motor

2шт.

41

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 42

2шт.

42

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

43

H654814

MOTOR

ASSEMBLY - hydraulic, Hydra-Borer, parts list Fig. 8-110, mounting hardware on Fig. 9-88

1шт.
