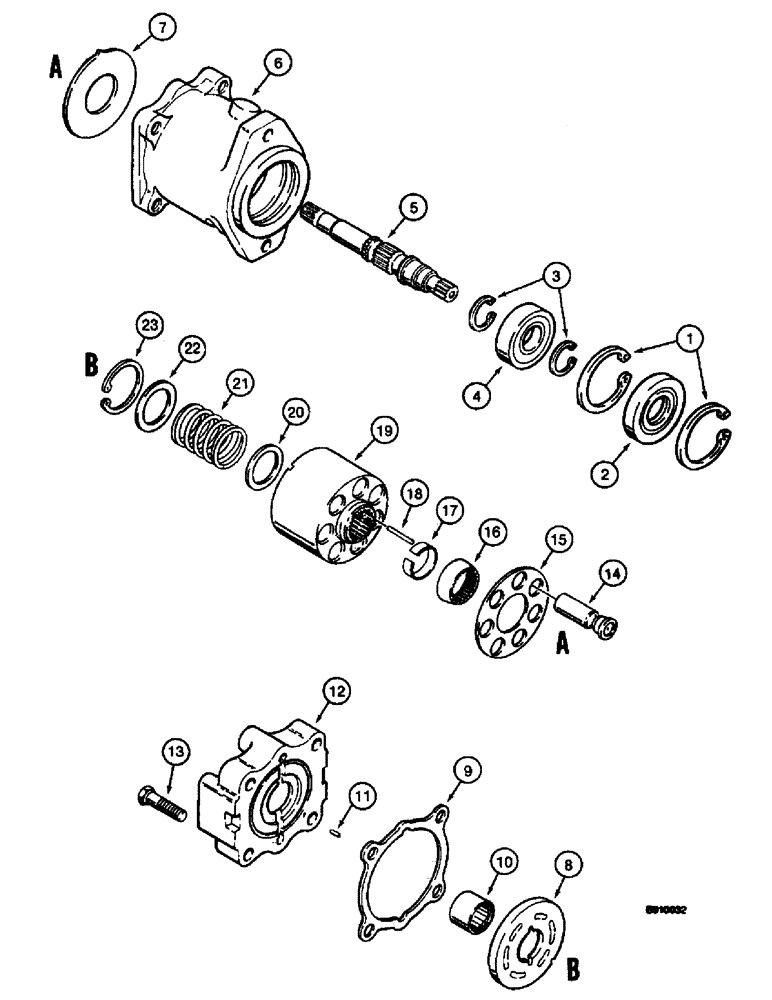

Запчасти Case 660 (8-104) - PLOW MOTOR - H673911, FOR ALL UNITS EXCEPT INTEGRAL QUAD (08) - HYDRAULICS

H673911

HYDRAULIC MOTOR

MOTOR ASSEMBLY - plow, see Fig. 9-110 for mounting, Includes: Ref. 1 - 23

1шт.

1

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

Ring, Snap, , Seal 2.812", Int, #281

2шт.

2

N14103

SEAL

- shaft

1шт.

3

100-11137

SNAP RING,#137, Ext

Ring, Snap, , bearing #137, Ext

2шт.

4

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

BEARING - ball, shaft

1шт.

5

4902/10003

SHAFT

- motor

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING - motor

1шт.

7

N14617

WASHER

PLATE - thrust, piston

1шт.

8

N13197

PLATE

- wear

1шт.

9

N13198

GASKET

- cover

1шт.

10

1277297C1

NEEDLE BEARING

- needle, shaft

1шт.

11

38-11207

LOCK PIN,4.76mm OD x 11.11mm L, Slotted

Pin, 3/16" x 7/16", Slotted

1шт.

12

NSS

NOT SOLD SEPARAT

COVER - motor

1шт.

13

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

4шт.

4902/10015

SET

BLOCK ASSEMBLY - cylinder, Includes: Ref. 14 - 23

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON - cylinder block

7шт.

15

NSS

NOT SOLD SEPARAT

RETAINER - piston

1шт.

16

4902/10008

GUIDE

- retainer

1шт.

17

4902/10009

SLEEVE

RING - retaining, guide

1шт.

18

110873A1

PIN,2.38mm OD x 33.53mm L

- retaining, Serial Range: guide-shaft

3шт.

19

4902/10011

CYLINDER BLOCK

BLOCK - cylinder

1шт.

20

4902/10012

DISC

SEAT - spring, spring retaining

1шт.

21

4902/10013

SPRING

- cylinder block

1шт.

22

4902/10014

DISC

SEAT - spring, cover end

1шт.

23

NSS

NOT SOLD SEPARAT

RING - snap, spring

1шт.
