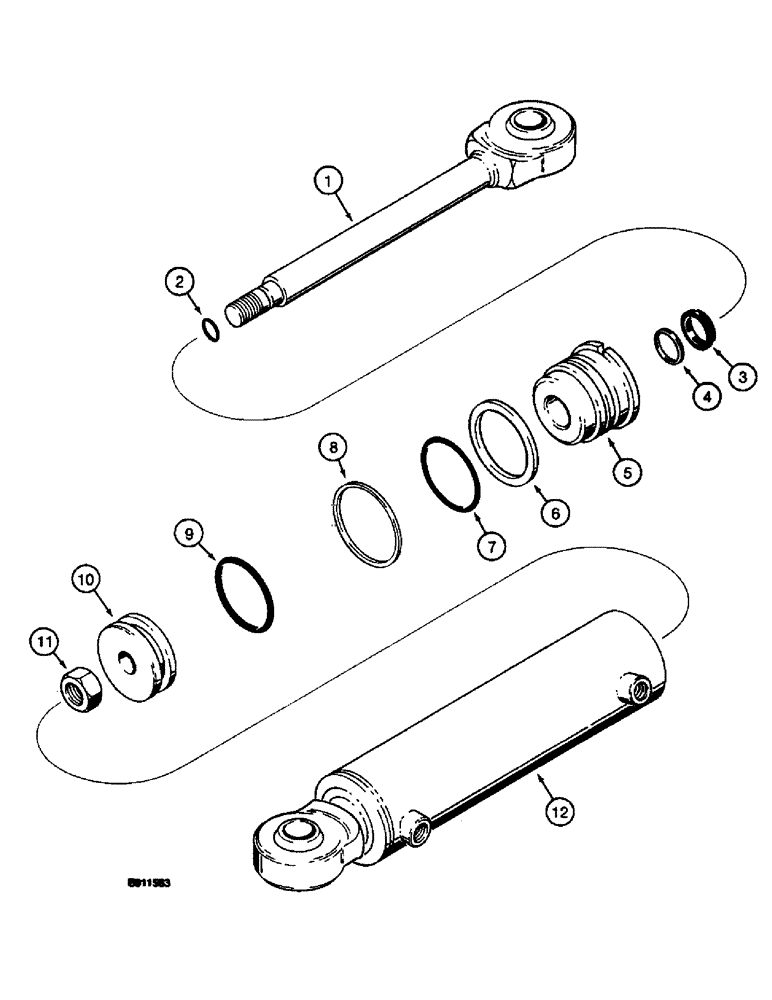

Запчасти Case 660 (8-102) - PLOW BLADE STEERING CYLINDER - H674932 (08) - HYDRAULICS

H674932

STEERING CYLINDER

CYLINDER ASSEMBLY - 64 (2-1/2) ID x 203 mm (8 inch) stroke, plow blade steering, see Fig. 9-110 for mounting, Includes: Ref. 1 - 12

1шт.

1

N8521

ROD

- piston

1шт.

2

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

-016, 70 Duro, .614" ID x .070" Thk, Piston rod

1шт.

Part of Seal Kit, P/N H674943

1шт.

3

H755793

RETAINER

WIPER - piston rod

1шт.

Part of Seal Kit, P/N H674943

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of Seal Kit, P/N H674943

1шт.

5

N8519

GLAND

- cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of Seal Kit, P/N H674943

1шт.

7

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

Part of Seal Kit, P/N H674943

1шт.

8

H207027

LOCK ASSY

WIRE - gland locking

1шт.

Part of Seal Kit, P/N H674943

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of Seal Kit, P/N H674943

1шт.

10

H247023

PISTON

- cylinder

1шт.

11

230-46112

LOCK NUT,3/4"-16, GA

NUT - hex, self-locking, 3/4 inch NF

1шт.

12

N8520

TUBE,1.01" ID x 2.5" OD x 13.84" L

- cylinder

1шт.

H674943

GASKET KIT

KIT - seal, Includes: Ref. 2, 3, 4, 6, 7, 8 and 9

1шт.
