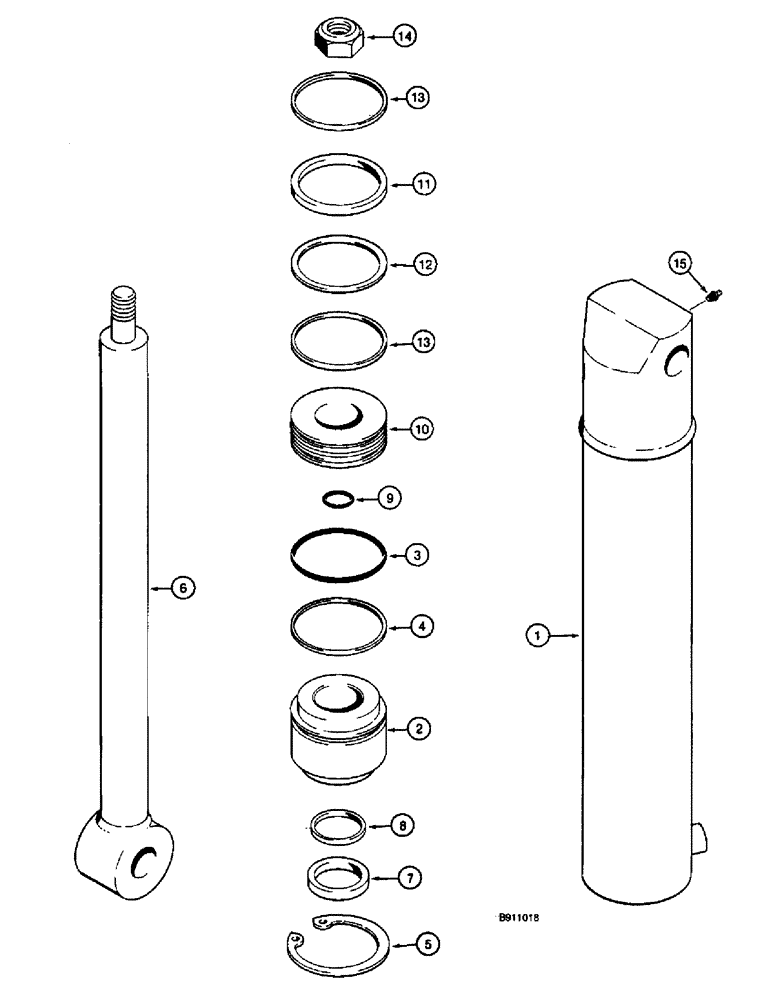

Запчасти Case 660 (8-100) - PLOW LIFT CYLINDER - H673790 (08) - HYDRAULICS

H673790

CYLINDER

ASSEMBLY - 89 (3-1/2) ID x 461 mm (16-3/8 inch) stroke, plow lift, Includes: Ref. 1 - 15

1шт.

1

100435A1

TUBE

- cylinder

1шт.

2

100434A1

HEAD

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of Seal Kit, P/N 100437A1

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of Seal Kit, P/N 100437A1

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining, gland

1шт.

Part of Seal Kit, P/N 100437A1

1шт.

6

100436A1

ROD

- piston

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of Seal Kit, P/N 100437A1

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of Seal Kit, P/N 100437A1

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of Seal Kit, P/N 100437A1

1шт.

10

100433A1

PISTON

- cylinder

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of Seal Kit, P/N 100437A1

1шт.

12

NSS

NOT SOLD SEPARAT

RING - backup, piston seal

1шт.

Part of Seal Kit, P/N 100437A1

1шт.

13

NSS

NOT SOLD SEPARAT

RING - wear, piston

2шт.

Part of Seal Kit, P/N 100437A1

1шт.

14

H438714

LOCK NUT,7/8" - 14

- hex, self-locking, special

1шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

100437A1

SEAL KIT

- cylinder seal repair, Includes: Ref. 3, 4, 5, 7, 8, 9, 11, 12 and 13

1шт.
