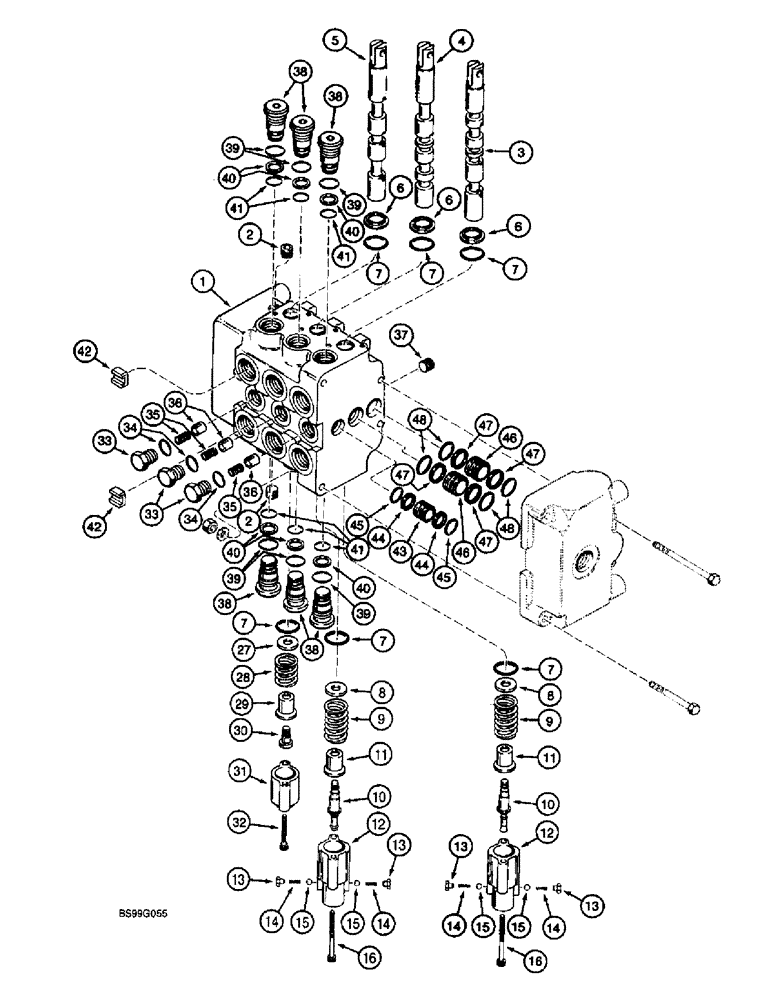

Запчасти Case 660 (8-097A) - PLOW CONTROL VALVE - 130806A1, WITH LEVERS MOUNTED HORIZONTALLY, INLET AND OUTLET SECTION (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
130806A1
VALVE
ASSEMBLY - control, plow, complete parts list on Figs. 8-93A, 8-97A and 8-98, Includes: Ref. 1 - 48
1шт.
369952A1
VALVE
SECTION ASSEMBLY - control valve, lift, swing and steering, 3 spool outlet, Includes: Ref. 1 - 37; No Longer Available As An Assembly, Order Components
1шт.
1
NSS
NOT SOLD SEPARAT
BODY - section
1шт.
2
221-841
PLUG
- hex socket, 1/4 inch PT
2шт.
3
NSS
NOT SOLD SEPARAT
SPOOL - float in
1шт.
4
NSS
NOT SOLD SEPARAT
SPOOL - float out
1шт.
5
NSS
NOT SOLD SEPARAT
SPOOL - section
1шт.
6
H438926
WIPER SEAL
WIPER - spool
3шт.
7
H438030
O-RING
- spool
6шт.
101491A1
KIT
- float in detent, Includes: Ref. 8 - 16
2шт.
8
NSS
NOT SOLD SEPARAT
WASHER - flat, special
1шт.
9
NSS
NOT SOLD SEPARAT
SPRING - return, spool
1шт.
10
NSS
NOT SOLD SEPARAT
SPOOL - detent
1шт.
11
NSS
NOT SOLD SEPARAT
SPACER - spring
1шт.
12
NSS
NOT SOLD SEPARAT
CAP - detent end
1шт.
13
NSS
NOT SOLD SEPARAT
PLUG - detent
2шт.
14
N9506
COIL SPRING
SPRING - detent
2шт.
15
NSS
NOT SOLD SEPARAT
BALL - steel
2шт.
16
NSS
NOT SOLD SEPARAT
SCREW - cap
2шт.
H438021
SET
KIT - spring centering, Includes: Ref. 27 - 32
1шт.
27
495-11034
WASHER,5/16", SAE
5/16" SAE (flat, 11/32 x 11/16 x 1/16")
1шт.
28
N9539
TENSION SPRING
SPRING - centering, return
1шт.
29
NSS
NOT SOLD SEPARAT
SPACER - spring
1шт.
30
NSS
NOT SOLD SEPARAT
BOLT - shoulder
1шт.
31
NSS
NOT SOLD SEPARAT
CAP - detent end
1шт.
32
62-31024
SCREW,Hex Soc Hd, #10-32 x 1 1/2"
BOLT - hex socket, No. 10 NF x 1-1/2 inch
2шт.
H438024
SET
KIT - load check, Includes: Ref. 33 - 36
3шт.
33
H438231
PLUG
- load check, load check, Includes: Ref. 34
1шт.
35
NSS
NOT SOLD SEPARAT
SPRING - load check
1шт.
36
NSS
NOT SOLD SEPARAT
POPPET - load check
1шт.
37
H438960
PLUG
- seal
1шт.
H438954
PLUG
ASSEMBLY - body, Includes: Ref. 38 - 41
6шт.
38
NSS
NOT SOLD SEPARAT
PLUG - body
1шт.
39
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
40
H438339
GASKET
RING - backup, O-ring
1шт.
41
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
42
101484A1
LARGE PLATE
PLATE - orifice
2шт.
43
H438029
TUBE
SLEEVE - body, small, Includes: Ref. 44 and 45
1шт.
44
H438044
GASKET
RING - backup
2шт.
45
238-6015
O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro
2шт.
46
H438028
TUBE
SLEEVE - body, large, Includes: Ref. 47 and 48
2шт.
47
NSS
NOT SOLD SEPARAT
RING - backup
2шт.
48
238-6211
O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro
Sleeve -211, 90 Duro, .796" ID x .139" Thk
2шт.
34
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
Выбрано товаров: 44
