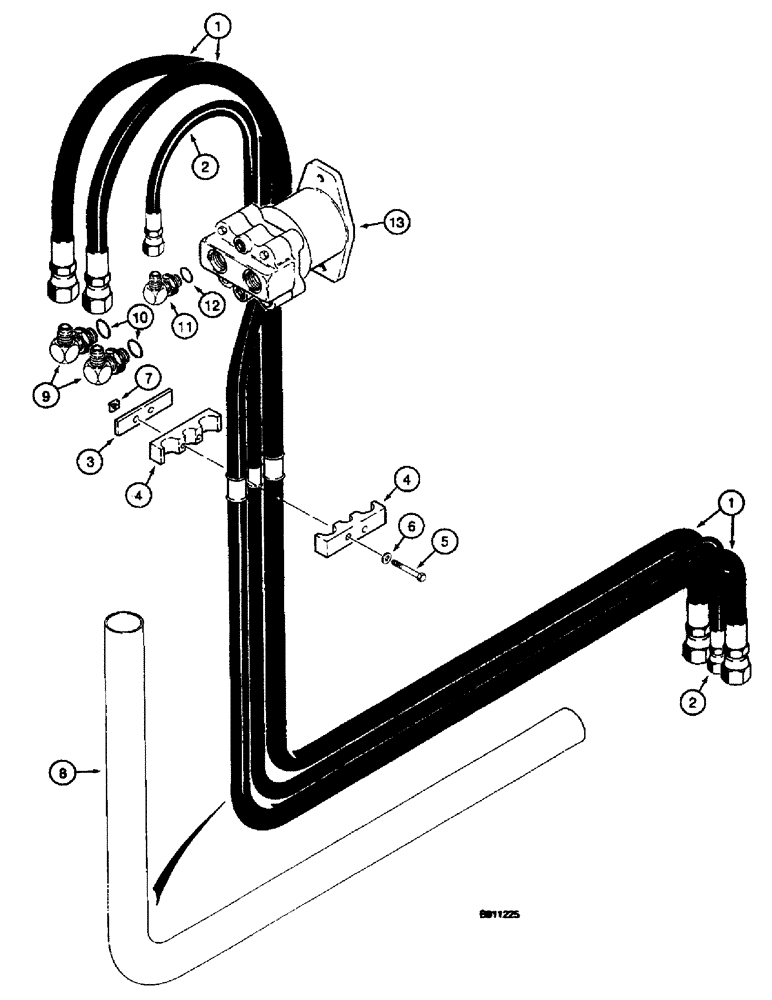

Запчасти Case 660 (8-090) - PLOW HYDRAULIC CIRCUIT, PLOW MOTOR SUPPLY AND RETURN LINES, FROM REAR BULKHEAD PLATE (08) - HYDRAULICS

1

H438196

HOSE ASSY.

HOSE - 3000 mm (118-1/8 inch) long, rear bulkhead plate to plow motor, "A" and "B" ports

2шт.

2

H438084

HOSE ASSY.

HOSE - 2921 mm (115 inch) long, plow motor to rear bulkhead plate, case drain

1шт.

3

H438204

BAR

- clamp

1шт.

4

H439256

BLOCK

- clamp

2шт.

5

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

2шт.

6

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

7

84899

SQUARE NUT,Sq, 3/8"-16, G2

- square, 3/8 inch NC

2шт.

8

H438197

SLEEVE

- nylon, plow motor hoses

2шт.

9

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, 1-1/16-12 flare x 1-5/16-12 inch adj O-ring boss, Includes: Ref. 10

2шт.

10

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

11

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 7/8-14 flare x 3/4-16 inch adj O-ring boss, Includes: Ref. 12

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
