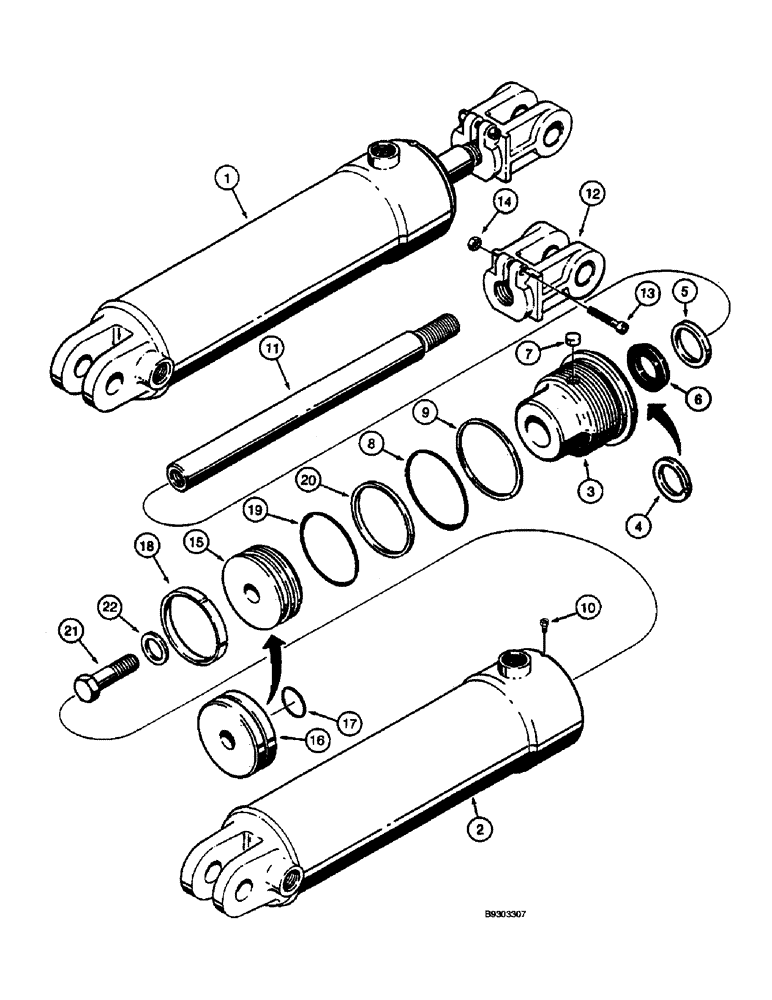

Запчасти Case 660 (8-085K) - HYDRAULIC CRUMBER CYLINDER (08) - HYDRAULICS

1

G34197

CYLINDER ASSY.

CYLINDER ASSEMBLY - 76 (3) ID x 254 mm (10 inch) stroke, hydraulic crumber, Includes: Ref. 1 - 22

1шт.

2

G34199

TUBE,16.69" L

- cylinder

1шт.

G104241

GLAND

ASSEMBLY - cylinder, replaces G104244 gland assembly, Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

G109092

SEAL,31.37mm ID x 44.63mm OD x 3.05mm Thk

- buffer, narrow, if used

1шт.

Part of Seal Kit, P/N 1543318C2

1шт.

5

D95141

WIPER SEAL

WIPER - piston rod

1шт.

Part of Seal Kit, P/N 1543318C2

1шт.

6

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- U-cup, piston rod, wide

1шт.

Part of Seal Kit, P/N 1543318C2

1шт.

6

G100775

SEAL

- U-cup, piston rod, service option, used in extreme hot or cold

1шт.

7

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

8

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Part of Seal Kit, P/N 1543318C2

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of Seal Kit, P/N 1543318C2

1шт.

10

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 ", If used

1шт.

11

113978A1

STEM

ROD - piston, 32 mm (1-1/4 inch)

1шт.

12

G34262

CLEVIS,1" - 12

- adjustable, piston rod, Includes: Ref. 13 and 14

1шт.

13

61-33828

HEX SOC SCREW,3/8"-16 x 1 3/4"

BOLT - hex socket, 3/8 NC x 1-3/4 inch, replaces 61-628 screw

1шт.

14

25-106

NUT,3/8"-16, G5

- hex, 3/8 inch NC

1шт.

15

G34202

PISTON

- cylinder, double groove, if used

1шт.

16

G104106

PISTON

- cylinder, single groove, if used

1шт.

17

238-5026

O-RING,0.07" Thk x 1.239" ID, -26, Cl 5, 75 Duro

-026, 70 Duro, 1.239" ID x .070" Thk, Used with Ref. 16 only (Replaces A59066)

1шт.

Part of Seal Kit, P/N 1543318C2

1шт.

18

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear, piston, used with Ref. 15 only

1шт.

Part of Seal Kit, P/N 1543318C2

1шт.

19

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

(Replaces A28318 O-ring) -230, 70 Duro, 2.484" ID x .139" Thk

1шт.

Part of Seal Kit, P/N 1543318C2

1шт.

20

G32034

RING

- backup, piston O-ring

1шт.

Part of Seal Kit, P/N 1543318C2

1шт.

21

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

22

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, hardened, special

1шт.

1543318C2

SEAL KIT

KIT -seal, replaces G105510 kit and G34205 kit, Includes: Ref. 4, 5, 6 (except G100775), 8, 9, 17, 18, 19 and 20

1шт.
