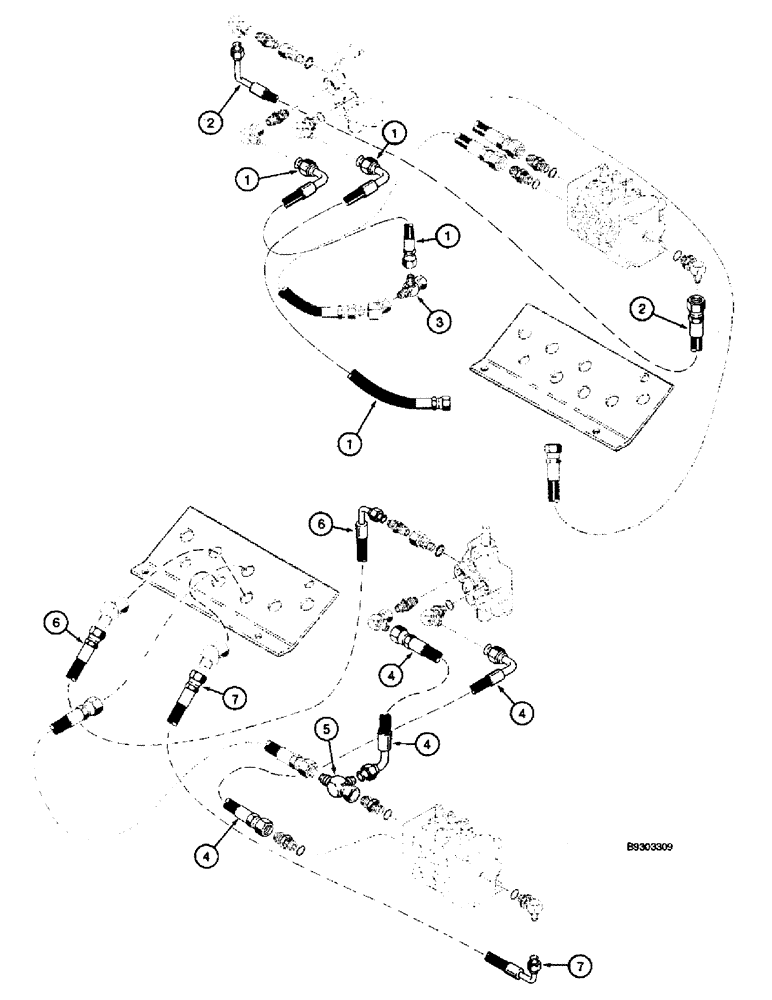

Запчасти Case 660 (8-085G) - CRUMBER HYDRAULIC CIRCUIT FOR QUAD OPTIONS (08) - HYDRAULICS

1

108421A1

HOSE ASSY.

HOSE - 955 mm (37-5/8 inch) long, supply and return

2шт.

2

108666A1

HOSE

- 875 mm (34-7/16 inch) long, power beyond

1шт.

3

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

- 1-1/16-12 inch flare branch x flare x swivel, read

1шт.

4

108665A1

HOSE ASSY.

HOSE - 475 mm (18-3/4 inch) long, supply and return

2шт.

5

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- swivel, 7/8-14 inch flare branch x flare x adj straight thread

1шт.

6

106519A1

HOSE

- 660 mm (26 inch) long, return from plow control valve

1-2шт.

7

H438246

HOSE ASSY.

HOSE - 660 mm (26 inch) long, rear bulkhead plate to plow control valve

1шт.
