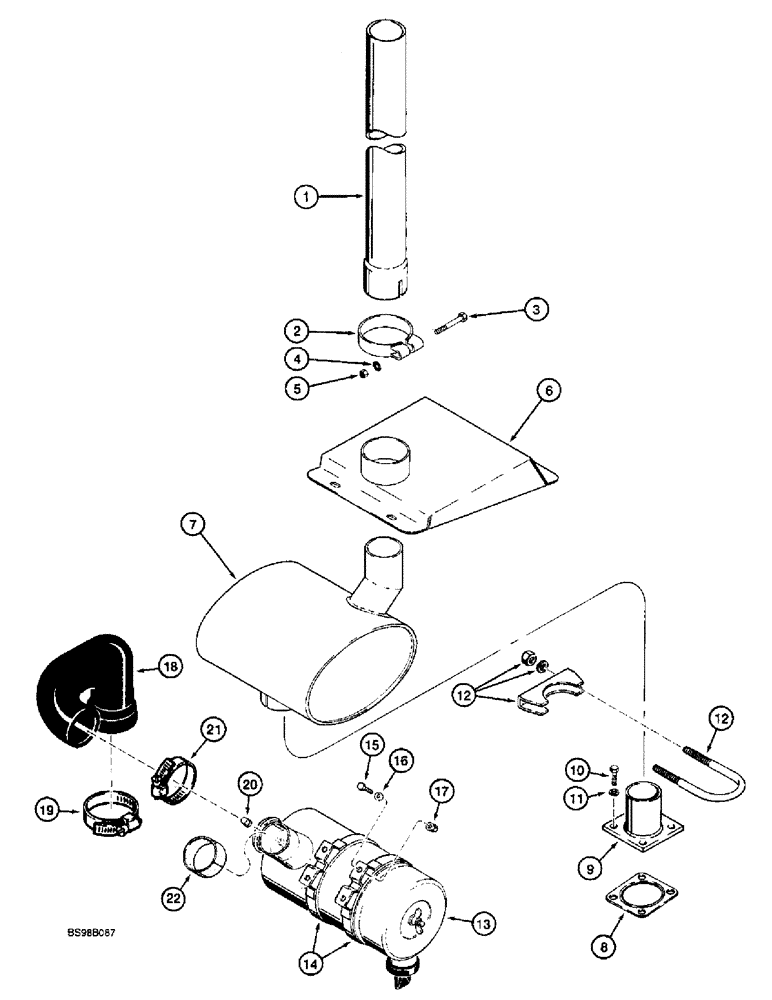

Запчасти Case 660 (2-07A) - ENGINE AIR INTAKE AND EXHAUST SYSTEM, USED ON MODELS WITH 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

R50444

PIPE

- exhaust

1шт.

2

R42854

CLAMP

- exhaust pipe

1шт.

3

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

1шт.

4

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

1шт.

5

129-770

NUT,3/8"-16, G5

- hex, 3/8 inch NC

1шт.

6

294477A1

COVER

- muffler, see Fig. 9-3A, Ref. 25

1шт.

7

278916A1

MUFFLER

- engine exhaust

1шт.

See Fig. 9-16 for muffler shield used on units equipped with backhoe attachment.

1шт.

8

J912220

GASKET,0.4mm Thk

- steel

1шт.

9

L129963

ADAPTER

-, Serial Range: engine-muffler

1шт.

10

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

4шт.

11

892-11010

LOCK WASHER,M10

4шт.

12

A27115

CLAMP

- muffler, includes hardware

1шт.

13

1347840C2

AIR CLEANER

CLEANER ASSEMBLY - air, parts list Fig. 2 - 8

1шт.

14

L113910

CLAMP

- air cleaner mounting, includes hardware

2шт.

15

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

16

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

17

231-5146

FLANGE NUT,3/8"-16

4шт.

18

H437010

INTAKE AIR HOSE,63.50 mm ID, 76.20 mm ID x 149.00 mm, SAE 20R4 CLASS D2

- Air cleaner 63.50 mm ID, 76.20 mm ID x 149.00 mm, SAE 20R4 CLASS D2

1шт.

19

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - adj, 3-1/16 - 4 inch dia

1шт.

20

221-522

CAP,1/8" NPT

- pipe, 1/8 inch

1шт.

21

214-1444

HOSE CLAMP,58.6mm - 82.5mm

CLAMP, HOSE, , Adj. #44, 2.31/3.25 Type F Worm

1шт.

22

H438535

SEAL

- air inlet

1шт.
