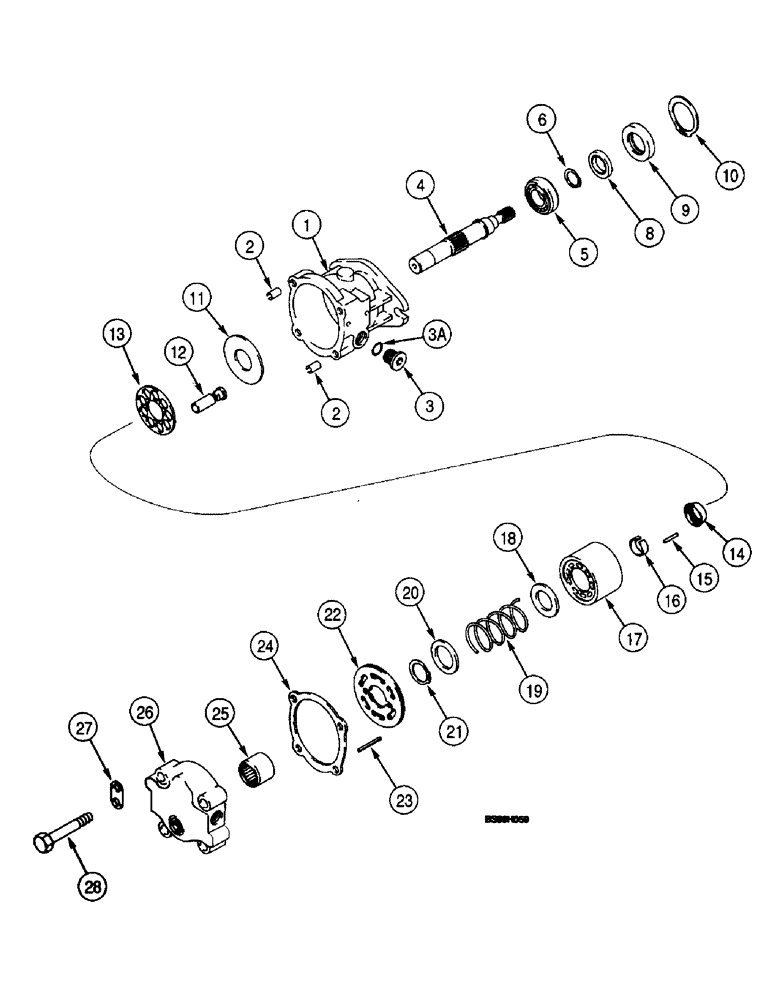

Запчасти Case 660 (8-085A) - TRENCHER DRIVE MOTOR - 239920A2, FOR ALL TRENCHERS EXCEPT INTEGRAL QUAD (08) - HYDRAULICS

239920A2

HYDRAULIC MOTOR

MOTOR ASSEMBLY - trencher drive, Includes: Ref. 1 - 30

1шт.

1

251668A1

HOUSING

- motor

1шт.

2

N13994

SPACER

PIN - roll, special, housing to rear cover

2шт.

3

86625138

PLUG,7/18" - 14

Includes Ref. 3A Hex Soc, 7/8"-14 ORB

3шт.

3a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

251667A1

SHAFT

- motor

1шт.

5

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

BEARING - ball

1шт.

6

100-11137

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

2шт.

8

N14103

SEAL

- lip, shaft

1шт.

9

241589A1

SEALING WASHER,38.1mm ID x 71.75mm OD x 2.16mm Thk

- seal support

1шт.

10

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

Ring, Snap, 2.812", Int, #281

2шт.

11

100700A1

PLATE

- thrust

1шт.

100706A1

CYLINDER BLOCK

BLOCK ASSEMBLY - cylinder, Includes: Ref. 12 - 21

1шт.

12

NSS

NOT SOLD SEPARAT

PISTON - cylinder block

9шт.

13

NSS

NOT SOLD SEPARAT

RETAINER - piston

1шт.

14

NSS

NOT SOLD SEPARAT

GUIDE - retainer

1шт.

15

NSS

NOT SOLD SEPARAT

PIN - retaining, Serial Range: guide-shaft

3шт.

16

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

17

NSS

NOT SOLD SEPARAT

BLOCK - cylinder

1шт.

18

NSS

NOT SOLD SEPARAT

SEAT - spring, block end

1шт.

19

NSS

NOT SOLD SEPARAT

SPRING - cylinder block

1шт.

20

NSS

NOT SOLD SEPARAT

SEAT - spring, cover end

1шт.

21

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

22

100702A1

LARGE PLATE

PLATE - valve

1шт.

23

38-11210

LOCK PIN,3/16" x 5/8", Slotted

1шт.

24

100701A1

GASKET

- cover

1шт.

25

F62094

NEEDLE BEARING

BEARING - needle, shaft

1шт.

26

253471A1

PLUG

COVER - end, with ports

1шт.

27

100703A1

PLATE, SPACER

BRACKET - lifting

1шт.

28

826-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

- hex, 10 - 1.5 x 80 mm, class 10.9

4шт.

29

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Not shown, Includes: Ref. 30 Hex Hd, 1 1/16"-12 ORB

2шт.

30

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.
