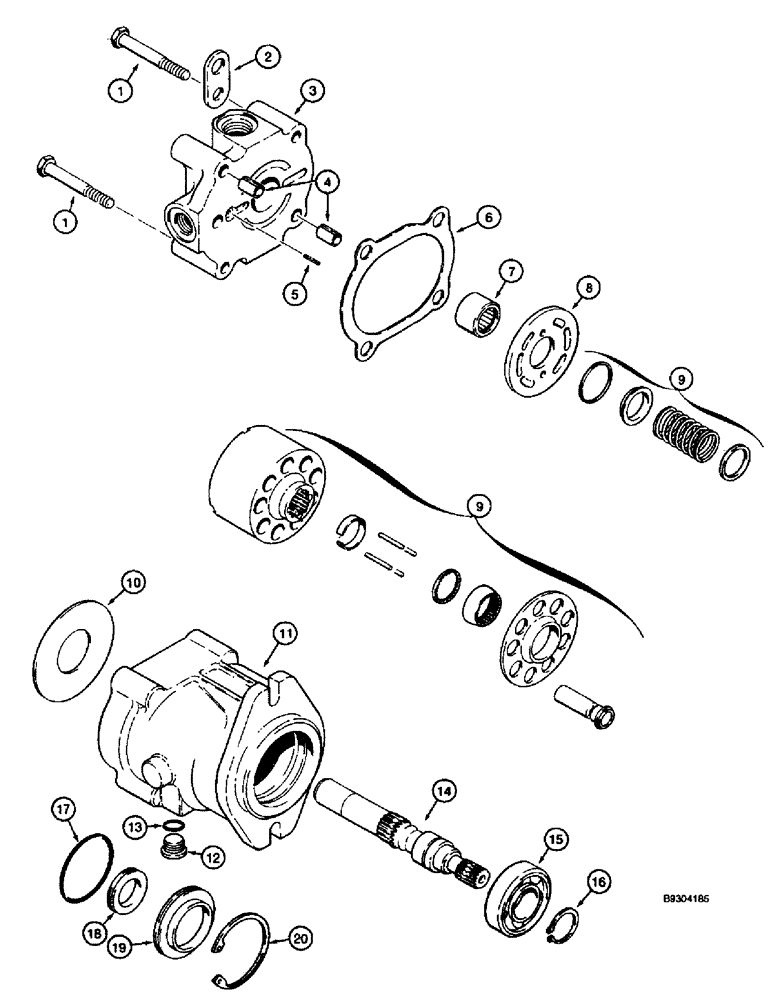

Запчасти Case 660 (8-084) - TRENCHER DRIVE MOTOR - H674235, FOR ALL TRENCHERS EXCEPT INTEGRAL QUAD (08) - HYDRAULICS

H674235

MOTOR

ASSEMBLY - trencher drive, no longer available, see Fig. 8-85A when replacing complete pump, Includes: Ref. 1 - 19

1шт.

1

826-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

- hex, 10 - 1.5 x 80 mm, class 10.9

4шт.

2

100703A1

PLATE, SPACER

BRACKET - lifting

1шт.

3

100708A1

CAP

COVER - motor

1шт.

4

N13994

SPACER

PIN - roll, special, cover locating

2шт.

5

38-11210

LOCK PIN,3/16" x 5/8", Slotted

1шт.

6

100701A1

GASKET

- cover

1шт.

7

F62094

NEEDLE BEARING

BEARING - needle, shaft

1шт.

8

100702A1

LARGE PLATE

PLATE - valve

1шт.

9

100706A1

CYLINDER BLOCK

BLOCK ASSEMBLY - cylinder, component parts not serviced separately

1шт.

10

100700A1

PLATE

- thrust

1шт.

11

100698A1

HOUSING

- motor

1шт.

12

238-5147

O-RING,0.103" Thk x 2.675" ID, -147, Cl 5, 75 Duro

1шт.

13

100707A1

SHAFT

- motor

1шт.

14

700510R91

BALL BEARING

BEARING - ball

1шт.

15

100-16118

SNAP RING,#118, Ext

Ring, Snap, #118, Ext

1шт.

16

238-5147

O-RING,0.103" Thk x 2.675" ID, -147, Cl 5, 75 Duro

1шт.

17

100699A1

SEAL

- shaft

1шт.

18

100704A1

CARRIER FLANGE SEAL

CARRIER - seal

1шт.

19

103-21300

SNAP RING,3.00", Int, #300

Ring, Snap, 3.00", Int, #300

1шт.
