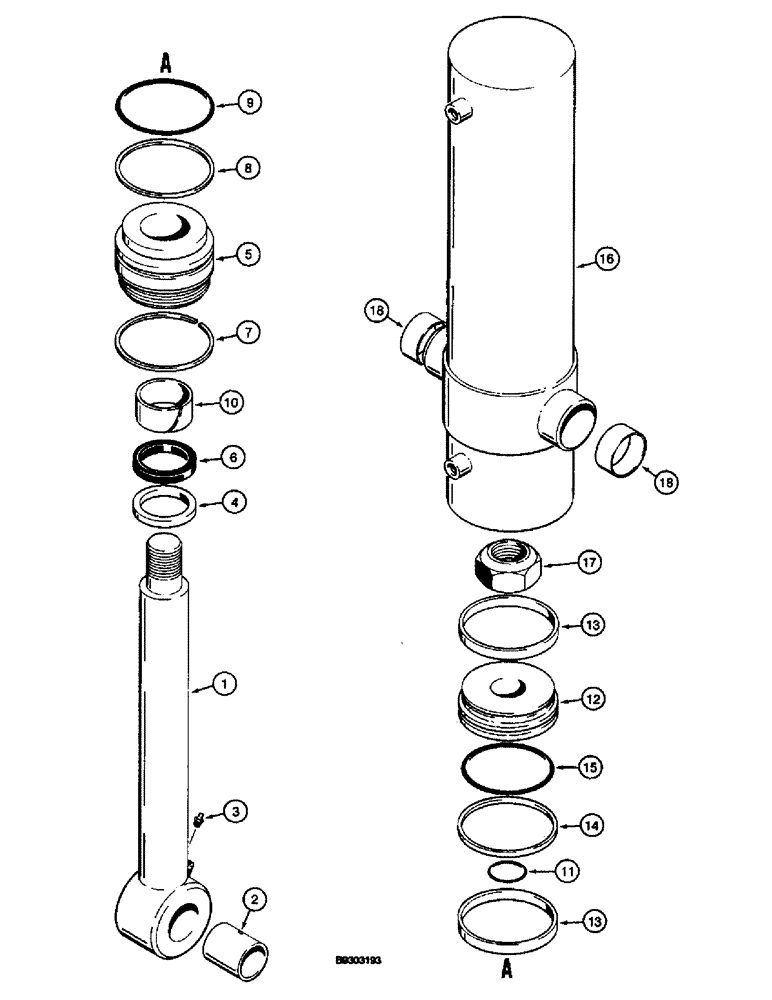

Запчасти Case 660 (8-082) - TRENCHER BOOM LIFT CYLINDER - H672822, FOR ALL TRENCHERS EXCEPT INTEGRAL QUAD (08) - HYDRAULICS

H672822

CYLINDER

ASSEMBLY - 102 (4) ID x 419 mm (16-1/2 in) stroke, trencher boom lift, no longer available, when replacing complete cylinder, order 221702A1 (Fig. 8-83A), (1) 221253A1 lower mounting pin, (1) 219-1 grease fitting (Fig. 9-42), Includes: Ref. 1- 18

1шт.

H438436

ROD

ASSEMBLY - piston, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

2

H438669

BUSHING,38.3mm ID x 47.75mm OD x 57.15mm L

- piston rod

1шт.

3

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4-28 special threads x 1/2 inch

1шт.

4

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of Seal Kit, P/N H674686

1шт.

5

H438437

HEAD

GLAND - piston

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - U-cup, gland

1шт.

Part of Seal Kit, P/N H674686

1шт.

7

NSS

NOT SOLD SEPARAT

LOCK - gland, nylon

1шт.

Part of Seal Kit, P/N H674686

1шт.

8

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of Seal Kit, P/N H674686

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of Seal Kit, P/N H674686

1шт.

10

NSS

NOT SOLD SEPARAT

RING - wear, gland

1шт.

Part of Seal Kit, P/N H674686

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - piston, inner

1шт.

Part of Seal Kit, P/N H674686

1шт.

12

H438434

PISTON

- cylinder

1шт.

13

NSS

NOT SOLD SEPARAT

RING - wear, piston

2шт.

Part of Seal Kit, P/N H674686

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - piston, outer

1шт.

Part of Seal Kit, P/N H674686

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - piston, outer

1шт.

Part of Seal Kit, P/N H674686

1шт.

16

H438435

SLEEVE CYLINDER

TUBE - cylinder

1шт.

17

232-24020

LOCK NUT,1 1/4"-12, GB

NUT, LOCK, 1 1/4"-12, GB

1шт.

18

105814A1

BUSHING

- trunnion

2шт.

H674686

GASKET KIT

KIT - boom cylinder seal repair, Includes: Ref. 4, 6, 7, 8, 9, 10, 11, 13, 14 and 15

1шт.
