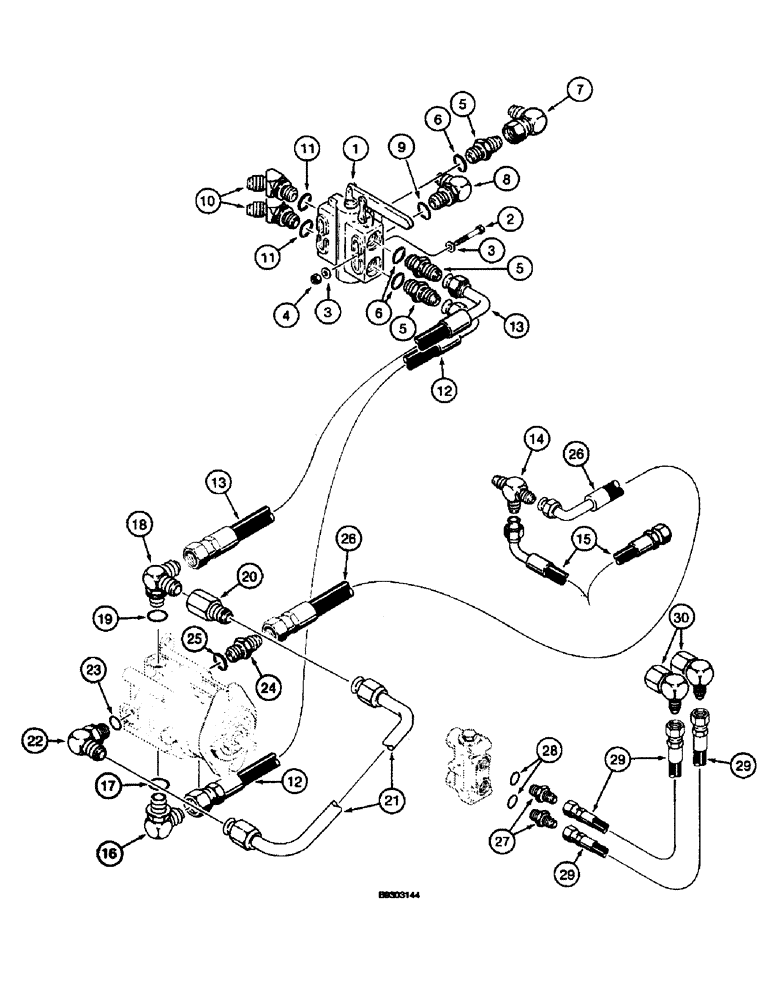

Запчасти Case 660 (8-079A) - INTEGRAL QUAD HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

H672979

VALVE

ASSEMBLY - selector, trencher/plow, parts list Fig. 8-80

1шт.

Use H438011 hose (Fig. 8-74, Ref. 1) from standard trencher between high loop bulkhead and "B" port at selector valve. Use H438012 hose (Fig. 8-74, Ref. 2) from standard trencher between low loop bulkhead and "A" port at selector valve.

1шт.

2

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

3

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

4

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

5

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, "A", "C", and "D" ports of selector valve, Incl. Ref. 6

3шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

7

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 inch flare x swivel, "A" port of selector valve

1шт.

8

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss, "B" port of selector valve, Incl." Ref. 9

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

10

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 45 degree, 1-1/16-12 inch flare x adf O-ring boss, "E" and "F" ports of selector vavle, Includes: Ref. 11

2шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

12

120632A1

HOSE

- 535 mm (21 inch) long, trencher high loop, bottom of trencher motor to "C" port of selector valve

1шт.

13

120633A1

HOSE

- 660 mm (26 inch) long, trencher low loop, top of trencher motor to "D" port of selector valve

1шт.

14

218-595

TEE,7/8"-14, 37 Degree

- 7/8-14 inch flare, case drain hoses

1шт.

15

H439398

HOSE

-350 mm (13-3/4 inch) long, case drain tee to bulkhead case drain fitting

1шт.

16

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, 1-1/16-12 inch flare x 1-5/16-12 inch adj O-ring boss, Includes: Ref 17

1шт.

17

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

18

218-5197

TEE,1 5/16"-12, 37 Degree x1 1/16"-12 x 1 5/16"-12, O-Ring Br

- 1-5/16-12 adj O-ring branch x fl x 1-1/16-12 inch fl, Includes: Ref. 19

1шт.

19

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

20

111975A1

FITTING

ADAPTER - straight, special, 0.075 inch orifice, special

1шт.

21

H675110

TUBE,12.7 mm OD

- trencher drive motor flush

1шт.

22

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 23

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

24

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss, Incl. Ref 25

1шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

26

120629A1

HOSE

- 940 mm (37 inch) long, case drain, trencher

1шт.

27

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 O-ring boss, Includes: Ref. 28

2шт.

28

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

29

H438959

HOSE

- 762 mm (30 inch) long, right-hand rear console to lockout valve, see Fig. 8-10 for circuit to right-hand rear console

2шт.

29

H438959

HOSE

- 762 mm (30 inch) long, right-hand rear console to lockout valve, see Fig. 8-10 for circuit to right-hand rear console

2шт.

30

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel

2шт.
