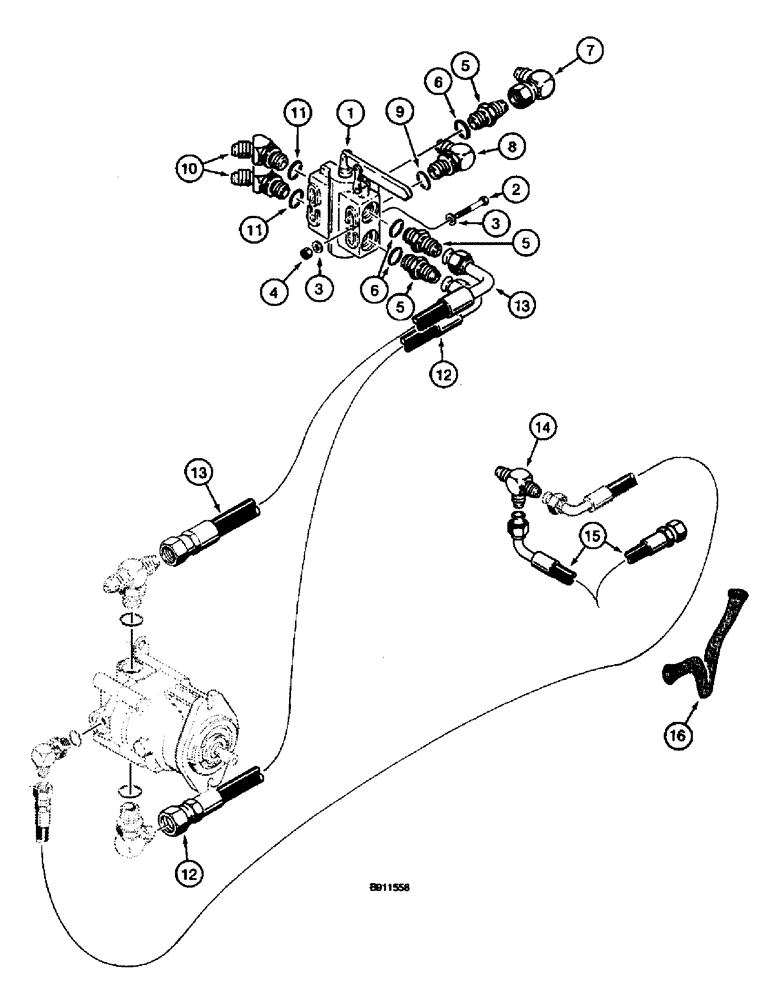

Запчасти Case 660 (8-078) - QUAD HYDRAULIC CIRCUIT, FOR QUAD WITH BOLT-ON TRENCHER FRAME (08) - HYDRAULICS

1

H672979

VALVE

ASSEMBLY - selector, trencher/plow, parts list Fig. 8-80

1шт.

Use H438011 hose (Fig. 8-74, Ref. 1) from standard trencher between high loop bulkhead and "B" port at selector valve. Use H438012 hose (Fig. 8-74, Ref. 2) from standard trencher between low loop bulkhead and "A" port at selector valve.

1шт.

2

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

3

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

4

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

5

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, "A", "C" and "D" ports of selector valve, Incl. Ref. 6

3шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

7

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16/12 inch flare x swivel, "A" port of selector valve

1шт.

8

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss, "B" port of selctor valve, Incl. Ref. 9

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

10

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 45 degree, 1-1/16-12 inch flare x adj O-ring boss, "E" and "F" ports of selector valve, Includes: Ref. 11

2шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

12

H439395

HOSE

- 630 mm (24-7/8 inch) long, trencher high loop, bottom of trencher motor to "C" port of selector valve

1шт.

13

H439396

HOSE

- 590 mm (23-1/4 inch) long, trencher low loop, top of trencher motor to "D" port of selector valve

1шт.

14

218-595

TEE,7/8"-14, 37 Degree

-7/8-14 inch flare, case drain hoses

1шт.

15

H439398

HOSE

- 350 mm (13-3/4 inch) long, case drain drain tee to bulkhead case drain fitting

1шт.

16

D131814

SLEEVE

- hose protector, trencher motor case drain hose

1шт.
