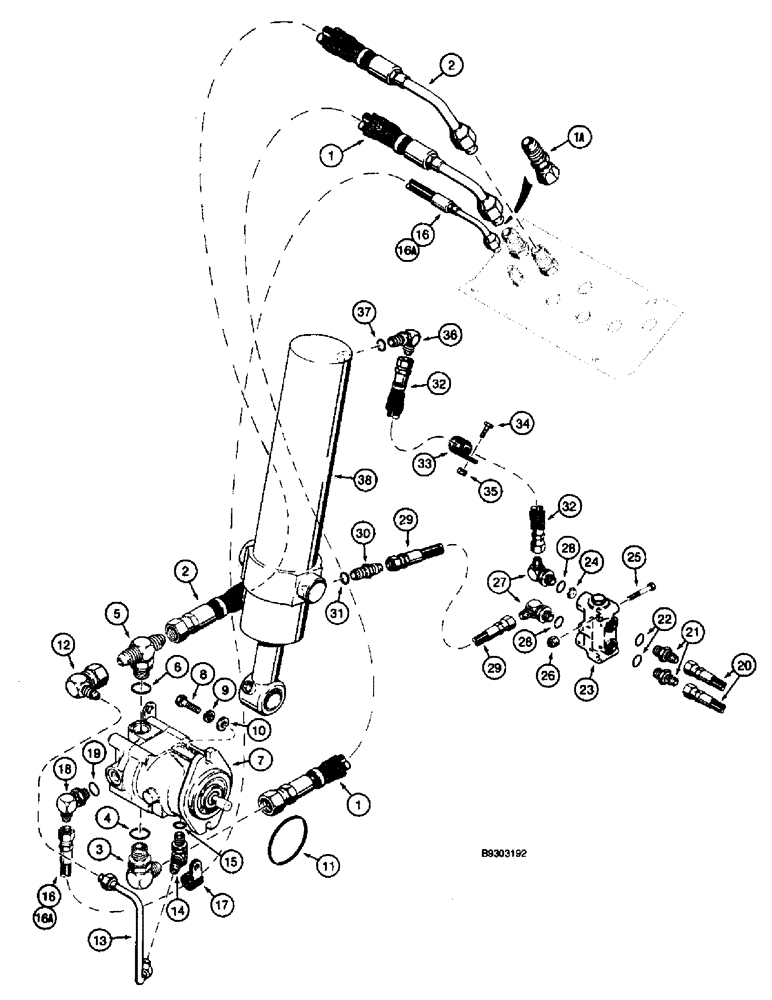

Запчасти Case 660 (8-074) - CENTERLINE OR OFFSET TRENCHER DRIVE, AND BOOM LIFT HYD. CIRCUIT, REAR BULKHEAD PLATE TO MOTOR & CYL. (08) - HYDRAULICS

1

H438011

HOSE ASSY.

HOSE - 864 mm (34 inch) long, trencher drive motor high loop, "A" port

1шт.

1a

102061A1

FITTING

ADAPTER - straight, special, at bulkhead fitting for trencher drive motor high loop, used with offset trencher

1шт.

2

H438012

HOSE ASSY.

HOSE - 940 mm (37 inch) long, trencher drive motor low loop, "B" port

1шт.

3

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss, trencher drive motor, "A" port, Incl. Ref. 4

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

5

218-5185

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 1-1/16-12 inch adj O-ring branch x flare x flare, "B" port, Includes: Ref. 4

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

7

H674235

MOTOR

ASSEMBLY - trencher drive, parts list Fig. 8-84

1шт.

8

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

10

H274894

WASHER

- flat, special

2шт.

11

238-5242

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

Motor to flywheel cover -242, 70 Duro, 3.984" ID x .139" Thk

1шт.

12

H439263

FITTING

ELBOW - 90 degree, special, at tee

1шт.

13

H675067

TUBE,12.7 mm OD

- trencher drive motor flush, elbow at low loop to case

1шт.

14

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adj O-ring boss, Includes: Ref. 15

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

16

H437994

HOSE ASSY.

HOSE - 1143 mm (45 inch) long, case drain, centerline trencher

1шт.

16a

H439386

HOSE

- 1308 mm (51-1/2 inch) long, case drain, offset trencher

1шт.

17

L129099

CLAMP

- P-type, 7/8 inch dia, uses existing trencher drive flywheel cover hardware

1шт.

18

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, rear case drain port, Incl. Ref. 19

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

20

H438959

HOSE

- 762 mm (30 inch) long, bulkhead plate to lockout valve

2шт.

21

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes: Ref. 22

2шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

23

H672547

VALVE

ASSEMBLY - lockout, trencher, parts list Fig. 5-16, Includes: Ref. 24

1шт.

24

H270603

ORIFICE

PLATE - orifice, 0.055 inch, included with H672547 valve assembly, see Fig. 5-16 for complete listing of valve components

1шт.

25

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

2шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

27

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss, Incl. Ref. 28

2шт.

28

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

29

D81836

HOSE

- 406 mm (16 inch) long, lockout valveto trencher boom lift cylinder, rod end

1шт.

30

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 31

1шт.

32

109641A1

HOSE

- 525 mm (20-3/4 inch) long, with sleeve, lockout valve to trencher boom lift cylinder, closed end

1шт.

33

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type 5/8", Insul, 3/8" Bolt

1шт.

34

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

35

231-5146

FLANGE NUT,3/8"-16

1шт.

36

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 37

1шт.

38

H672822

CYLINDER

ASSEMBLY - 102 (4) ID x 419 mm (16-1/2 inch) stroke, trencher boom lift, parts list Fig. 8-82, see Fig. 9-42 for cylinder mounting

1шт.

31

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

37

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
