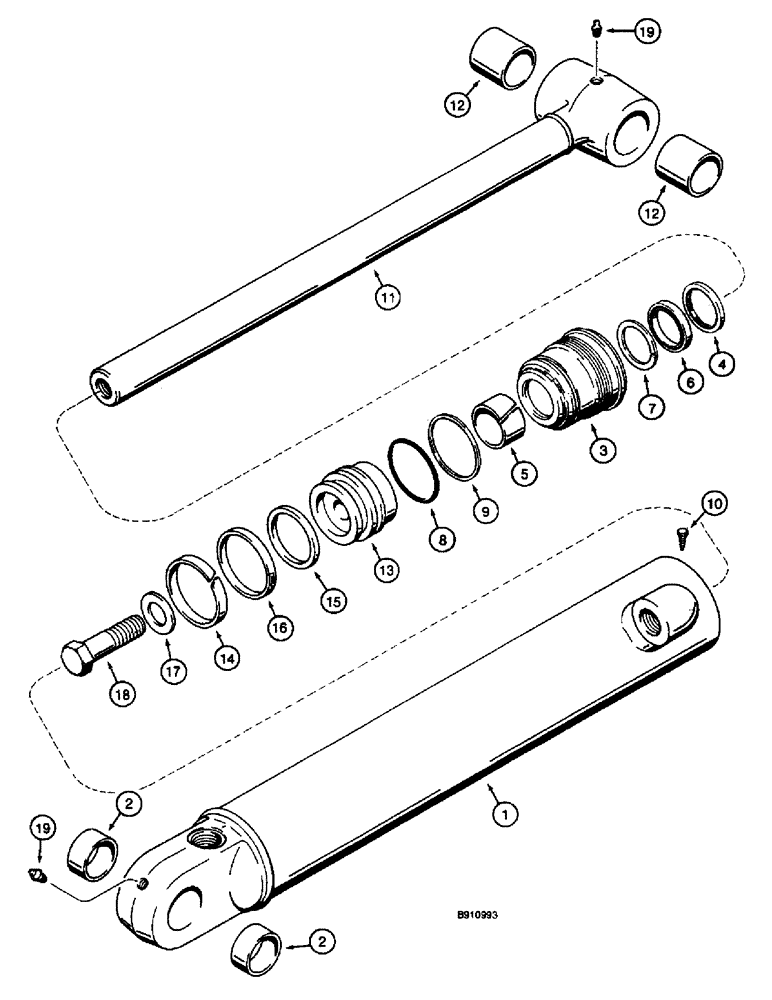

Запчасти Case 660 (8-070) - BACKHOE BUCKET CYLINDER - 1346397C2 (08) - HYDRAULICS

1346397C2

CYLINDER ASSY.

CYLINDER ASSEMBLY - 70 (2-3/4) ID x 559 mm (22 inch) stroke, backhoe bucket, Includes: Ref 1 - 19

1шт.

1346398C2

TUBE

ASSEMBLY - cylinder, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube

2шт.

1346404C1

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

Part of Seal Kit, P/N 1346409C1

1шт.

5

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center, Gland

1шт.

Part of Seal Kit, P/N 1346409C1

1шт.

6

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

- U-cup, piston rod, wide, with O-ring

1шт.

Part of Seal Kit, P/N 1346409C1

1шт.

6

G100776

SEAL

- U-cup, piston rod, service option - severe heat or cold, piston rod

1шт.

7

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

- piston rod, narrow, with groove

1шт.

Part of Seal Kit, P/N 1346409C1

1шт.

8

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

Gland -230, 70 Duro, 2.484" ID x .139" Thk

1шт.

Part of Seal Kit, P/N 1346409C1

1шт.

9

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of Seal Kit, P/N 1346409C1

1шт.

10

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

1346405C1

PISTON ROD

ROD ASSEMBLY - piston, 38 mm diameter, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

ROD - piston, 38 mm diameter

1шт.

12

D31141

BUSHING,38.33mm ID x 47.63mm OD x 41.15mm L

- 41 mm (1-5/8 inch) long

2шт.

13

1346408C1

JACK PISTON

PISTON - cylinder

1шт.

14

G105187

RING

- wear, piston

1шт.

Part of Seal Kit, P/N 1346409C1

1шт.

15

G104439

RING

- seal

1шт.

Part of Seal Kit, P/N 1346409C1

1шт.

16

G104454

SEALING RING,Locking, 65.89mm ID x 71.02mm OD x 6.96mm Thk

- piston, expandable, outer

1шт.

Part of Seal Kit, P/N 1346409C1

1шт.

17

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, hardened, special

1шт.

18

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

- hex, 3/4 NF x 2-1/2 inch, grade 8

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32

2шт.

1346409C1

SEAL KIT

KIT - seal, Includes: Ref. 4 - 9 (except G100776) and 14 -16

1шт.
