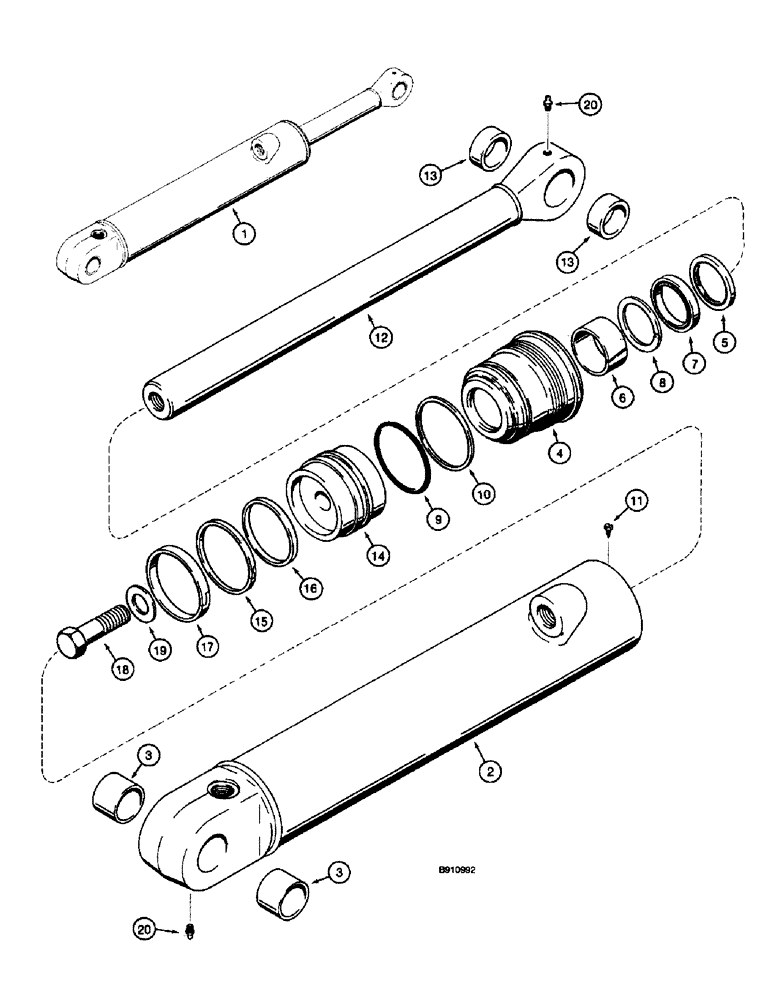

Запчасти Case 660 (8-068) - BACKHOE DIPPER CYLINDER - 1346411C2 (08) - HYDRAULICS

1

1346411C2

CYLINDER ASSY.

CYLINDER ASSEMBLY - 76 (3) ID X 498 mm (19-5/8 inch) stroke, backhoe dipper, Includes: Ref. 2 - 20

1шт.

2

1346412C1

TUBE

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

R10754

BUSHING

- cylinder tube

2шт.

1346429C1

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer

1шт.

Part of Seal Kit, P/N G110050

1шт.

6

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center, Gland

1шт.

Part of Seal Kit, P/N G110050

1шт.

7

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

- U-cup, piston rod, wide, with O-ring

1шт.

Part of Seal Kit, P/N G110050

1шт.

7

G100776

SEAL

- U-cup, piston rod, service option - severe heat or cold, piston rod

1шт.

8

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

- piston rod, narrow, grooved

1шт.

Part of Seal Kit, P/N G110050

1шт.

9

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

Gland -231, 70 Duro, 2.609" ID x .139" Thk

1шт.

Part of Seal Kit, P/N G110050

1шт.

10

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of Seal Kit, P/N G110050

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

12

1346414C1

PISTON ROD

ROD ASSEMBLY - piston, 38 mm (1-1/2 inch ) diameter, Includes: Ref. 13

1шт.

13

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

1шт.

14

1543369C1

PISTON

- cylinder

1шт.

15

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of Seal Kit, P/N G110050

1шт.

16

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING - backup, piston seal

1шт.

Part of Seal Kit, P/N G110050

1шт.

17

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear, piston

1шт.

Part of Seal Kit, P/N G110050

1шт.

18

25974R1

BOLT,Hex, 1" - 14 x 2 1/2", Gr 8

- hex, 1 NF x 2-1/2 inch, grade 8

1шт.

19

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- flat, special, hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

G110050

KIT

- seal, cylinder repair, Includes: Ref. 5 - 10 (except G100776) and 15 - 17

1шт.
