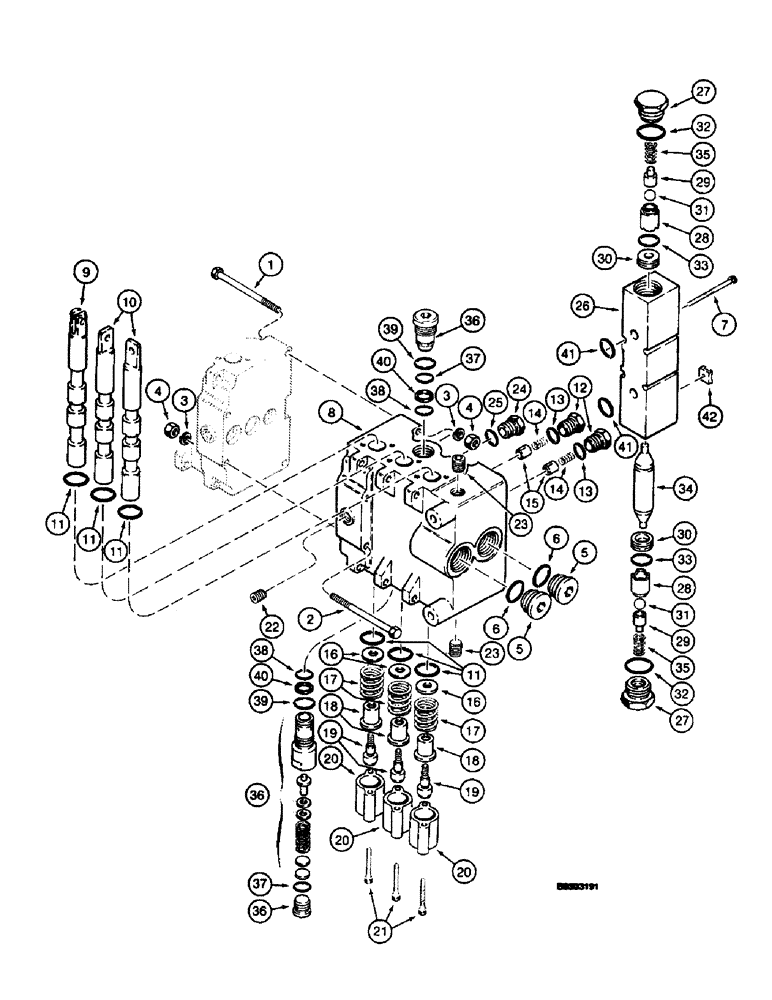

Запчасти Case 660 (8-058) - BACKHOE CONTROL VALVE - H674500, OUTLET SECTION (08) - HYDRAULICS

H674500

VALVE

ASSEMBLY - control, backhoe, parts list Figs. 8-52 - 8-58, see Fig. 9-22 for mounting, Includes: Ref. 1 - 42

1шт.

1

414-448

BOLT,Hex, 1/4" - 28 x 3", Gr 5

- hex, 1/4 NF x 3 inch

2шт.

2

414-436

BOLT,Hex, 1/4" - 28 x 2-1/4", Gr 5

2шт.

3

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

4

425-114

NUT,1/4"-28, G5

4шт.

5

86625138

PLUG,7/18" - 14

Includes Ref. 6 Hex Soc, 7/8"-14 ORB

2шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

7

62-31040

HEX SOC SCREW,#10 - 32 x 2 1/2"

BOLT - hex socket, No. 10 NF x 2-1/2 inch

4шт.

H674528

HYD VALVE SECTION

SECTION ASSEMBLY - outlet, Includes: Ref. 8 - 24

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - outlet section

1шт.

9

NSS

NOT SOLD SEPARAT

SPOOL - stabilizer

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - dual control

2шт.

11

H438030

O-RING

- spool

6шт.

H438024

SET

KIT - load check, Includes: Ref. 12 - 15

2шт.

12

H438231

PLUG

- load check

1шт.

14

NSS

NOT SOLD SEPARAT

SPRING - poppet

1шт.

15

NSS

NOT SOLD SEPARAT

POPPET - load check

1шт.

H438021

SET

KIT - spring centering, Includes: Ref. 16 - 21

3шт.

16

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

17

N9539

TENSION SPRING

SPRING - centering

1шт.

18

NSS

NOT SOLD SEPARAT

SPACER - spring

1шт.

19

NSS

NOT SOLD SEPARAT

BOLT - shoulder, special

1шт.

20

NSS

NOT SOLD SEPARAT

CAP - end

1шт.

21

62-31024

SCREW,Hex Soc Hd, #10-32 x 1 1/2"

BOLT - hex socket, No. 10 NF x 1-1/2 inch

2шт.

22

H438960

PLUG

- seal

1шт.

23

221-841

PLUG

- hex socket, 1/4 inch PT

2шт.

24

H438231

PLUG

- load check, Includes: Ref. 25

1шт.

100405A1

BLOCK ASSY.

VALVE ASSEMBLY - pilot check, Includes: Ref. 26 - 35

1шт.

26

NSS

NOT SOLD SEPARAT

BODY - pilot check

1шт.

27

NSS

NOT SOLD SEPARAT

PLUG - pilot check

2шт.

28

NSS

NOT SOLD SEPARAT

SLEEVE - pilot check

2шт.

29

NSS

NOT SOLD SEPARAT

RETAINER - ball

2шт.

H674531

KIT

- pilot check, Includes: Ref. 30 - 33

1шт.

30

NSS

NOT SOLD SEPARAT

SEAT - pilot check

2шт.

31

NSS

NOT SOLD SEPARAT

BALL - pilot check

2шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

33

G33686

O-RING,0.07" Thk x 0.61" ID

- 5/8 ID x 1/16 inch wide

2шт.

34

NSS

NOT SOLD SEPARAT

PLUNGER - pilot check

1шт.

35

NSS

NOT SOLD SEPARAT

SPRING - pilot check

2шт.

H438945

VALVE, PRESSURE RELI

VALVE ASSEMBLY - circuit relief, 3000 psi, Includes: Ref. 36 - 40

2шт.

36

NSS

NOT SOLD SEPARAT

VALVE - relief

1шт.

H674536

O-RING

KIT - seal, circuit relief valve, Includes: Ref. 37 - 40

1шт.

38

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

39

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

40

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

41

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

Check assembly -113, 90 Duro, .549" ID x .103" Thk

2шт.

42

H438941

ORIFICE

PLATE - orifice, 2.388 mm (0.094 inch)

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

37

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
