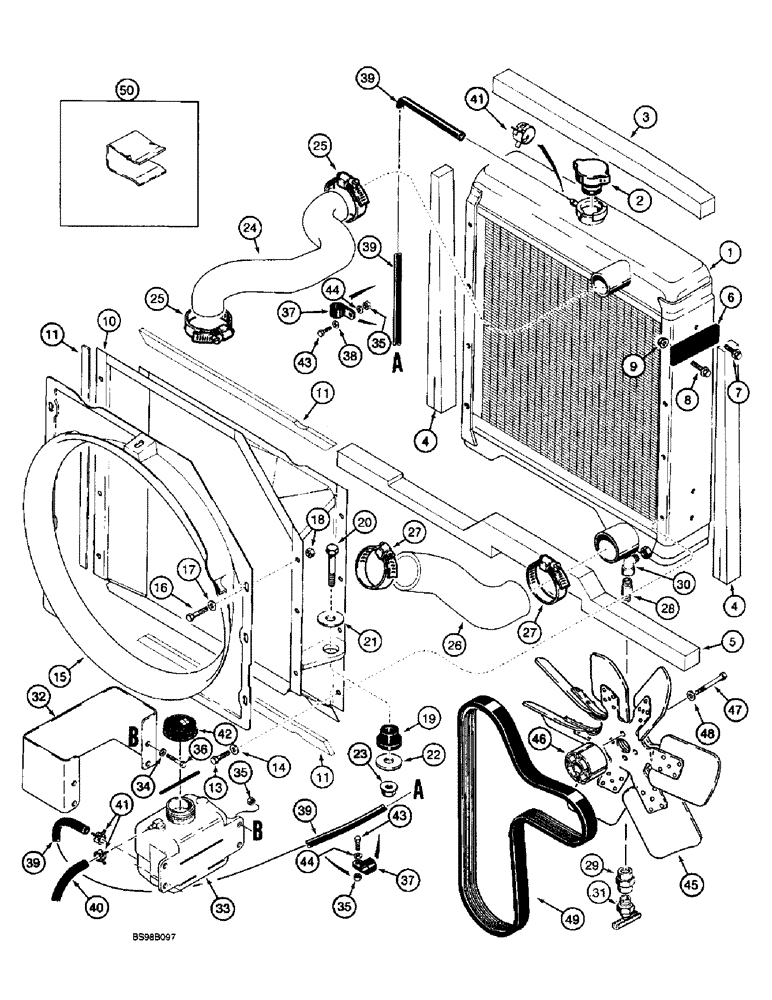

Запчасти Case 660 (2-05A) - RADIATOR, FAN, AND MOUNTING, USED ON MODELS WITH 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

A172038

RADIATOR

- engine coolant, used on engines with J931397 fuel injection pump

1шт.

1

348598A1

RADIATOR

- engine coolant, used on engines with J935677 fuel injection pump

1шт.

2

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi

1шт.

3

H438379

BAFFLE

- radiator, upper

1шт.

4

H438380

BAFFLE

- radiator, sides

2шт.

5

H438381

BAFFLE

- radiator, lower

1шт.

6

H433231

STRAP

- radiator mounting, side

2шт.

7

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

2шт.

8

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

10

H673929

SUPPORT

BRACKET - mounting, radiator and shroud

1шт.

11

A173165

SEALING STRIP

- adhesive-backed, 485 mm (19 inch) long

4шт.

13

614-8014

BOLT,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 14 mm

8шт.

14

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

- flat, 11/32 x 11/16 x 1/16 inch, hardened

8шт.

15

H437551

SHROUD

- fan

1шт.

16

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

7шт.

17

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

7шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

7шт.

19

CASL13142

BUSHING

MOUNT - isolator, rubber

2шт.

20

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

2шт.

21

D64050

WASHER

- flat, special, 1/2 inch

2шт.

22

496-81018

WASHER,0.521" ID x 2" OD x 0.108 Thk, ZND

- flat, 33/64 x 2 x 1/8 inch, hardened

2шт.

23

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

24

H437006

HOSE

- radiator, upper

1шт.

25

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP, HOSE, , Adjustable #32, 1.56/2.50 Type F Worm

2шт.

26

H437007

HOSE

- radiator, lower

1шт.

27

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

CLAMP, HOSE, , Adj #36, 1.81/2.75 Type F Worm

1шт.

28

221-137

PIPE,Nipple, 1/4" NPT x 2"

NIPPLE - straight, 1/4 PT x 2 inch

1шт.

29

217-1101

HYD CONNECTOR,1/4"-18 NPTF, Female

COUPLING - pipe, 1/4 inch, hex

1шт.

30

221-1412

ELBOW,90 Degree, 1/4"-27, NPT

Street 90º, 1/4"-27, NPT

1шт.

31

H434809

COCK, DRAIN

VALVE - drain, radiator drain

1шт.

32

293307A1

SHIELD

- coolant recover bottle

1шт.

33

138189A1

RESERVOIR

BOTTLE - coolant recovery

1шт.

34

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

35

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

6шт.

36

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

37

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type 5/8", Insul, 3/8" Bolt

4шт.

38

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

2шт.

39

311026A1

ENGINE ASSEMBLY

HOSE - 1840 mm (72-7/17 inch) long, coolant, Serial Range: bottle-radiator

1шт.

40

D148394

HOSE

- 500 mm (19-11/16 inch) long, cut from L126767 bulk hose, overflow, see below

1шт.

41

A171099

HOSE CLAMP,13.2mm - 15.4mm

CLAMP - spring-type

3шт.

42

A184079

CAP

- coolant recovery reservoir

1шт.

43

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

44

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

- flat, 11/32 x 11/16 x 1/16 inch, hardened

4шт.

45

1998738C2

FAN

- suction, seven blade

1шт.

46

A184545

SPACER

fan

1шт.

47

828-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

- hex, 10 - 1.5 x 70 mm, class 10.9

4шт.

48

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

49

J903091

V-BELT,3.56 mm W x 1422.40 mm L, 8 Ribs

Fan and Alternator 3.56 mm W x 1422.40 mm L, 8 Ribs

1шт.

50

H438266

FASTENER

- panel

3шт.

L126767

HOSE,7.9mm ID x 2336mm L, SAE 30R6

1шт.
