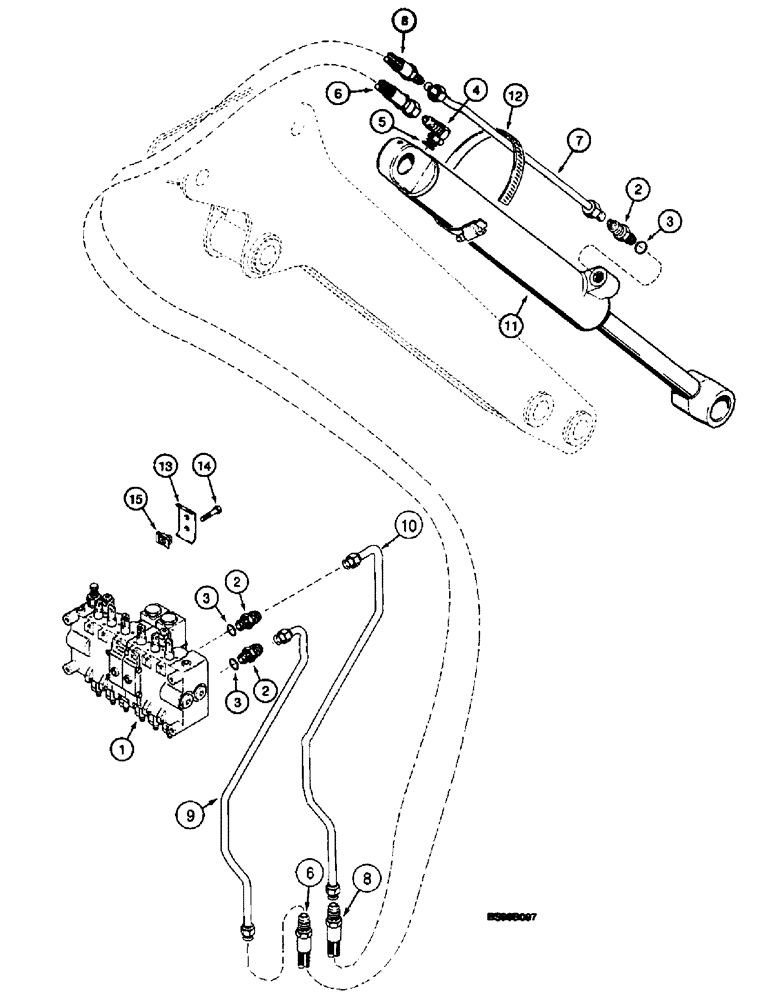

Запчасти Case 660 (8-051A) - BACKHOE BUCKET CYLINDER HYDRAULIC CIRCUIT - D125 BACKHOE, BACKHOE SERIAL NUMBER JAF0218189 AND AFTER (08) - HYDRAULICS

1

H674500

VALVE

ASSEMBLY - control, backhoe, parts list Figs. 8-52 - 8-58, see Fig. 9-22 for mounting

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 3

3шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

H439269

ELBOW

- 90 degree, special, Includes: Ref. 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

256926A1

HOSE ASSY.

HOSE - 3330 mm (131-1/8 inch) long, to closed end of bucket cylinder

1шт.

7

H674567

PIPE,12.7 mm OD x 597 mm L

TUBE - to rod end of bucket cylinder

1шт.

8

256925A1

HOSE,9.52 mm ID x 3310.00 mm

to Tube at Rod End of Bucket Cylinder 9.52 mm ID x 3310.00 mm

1шт.

9

256140A1

TUBE

- valve to closed end of bucket cylinder

1шт.

10

256138A1

TUBE

- valve to rod end of bucket cylinder

1шт.

11

1346397C2

CYLINDER ASSY.

CYLINDER ASSEMBLY - 70 (2-3/4) ID x 559 mm (22 inch) stroke, bucket, parts list Fig. 8-70

1шт.

12

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - adj, 3-1/16 - 4 inch dia

1шт.

13

H45476

CLAMP

- tube

2шт.

14

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

4шт.

15

H346650

NUT

- U-type, 5/16 inch NC

4шт.
