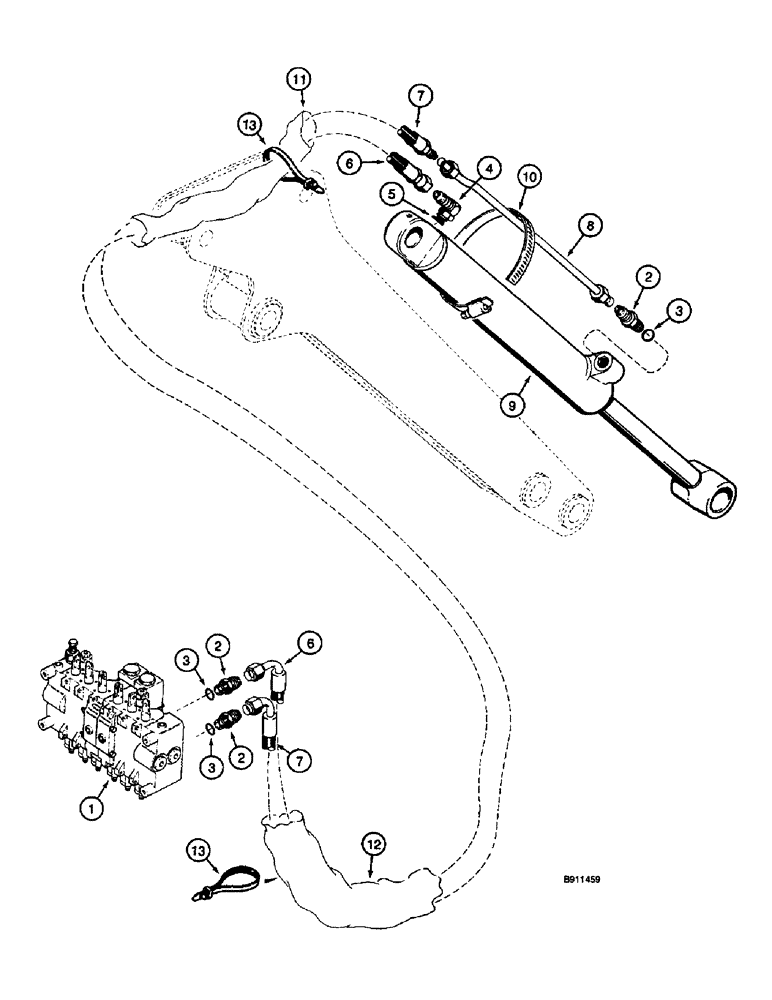

Запчасти Case 660 (8-050) - BACKHOE BUCKET CYLINDER HYDRAULIC CIRCUIT - D125 BACKHOE, PRIOR TO BACKHOE SERIAL NUMBER JAF0218189 (08) - HYDRAULICS

1

H674500

VALVE

ASSEMBLY - control, backhoe, parts list Figs. 8-52 - 8-58, see Fig. 9-22 for mounting

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 3

3шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

H439269

ELBOW

- 90 degree, special, Includes: Ref. 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

H438685

HOSE

- 3600 mm (141-3/4 inch) long, to closed end of bucket cylinder

1шт.

7

H438227

HOSE

- 3700 mm (145-5/8 inch) long, to tube at rod end of bucket cylinder

1шт.

8

H674567

PIPE,12.7 mm OD x 597 mm L

TUBE - to rod end of bucket cylinder

1шт.

9

1346397C2

CYLINDER ASSY.

CYLINDER ASSEMBLY - 70 (2-3/4) ID x 559 mm (22 inch) stroke, bucket, parts list Fig. 8-70

1шт.

10

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - adj, 3-1/16 - 4 inch dia

1шт.

11

D132054

SLEEVE

- hose guard, 500 mm (19-11/16 inch) long, upper boom

1шт.

12

H439063

SLEEVE

- hose protector, lower boom

1шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.
