Запчасти Case 660 (8-049A) - BACKHOE DIPPER CYLINDER HYDRAULIC CIRCUIT - D125 BACKHOE, BACKHOE SERIAL NUMBER JAF0218189 AND AFTER (08) - HYDRAULICS

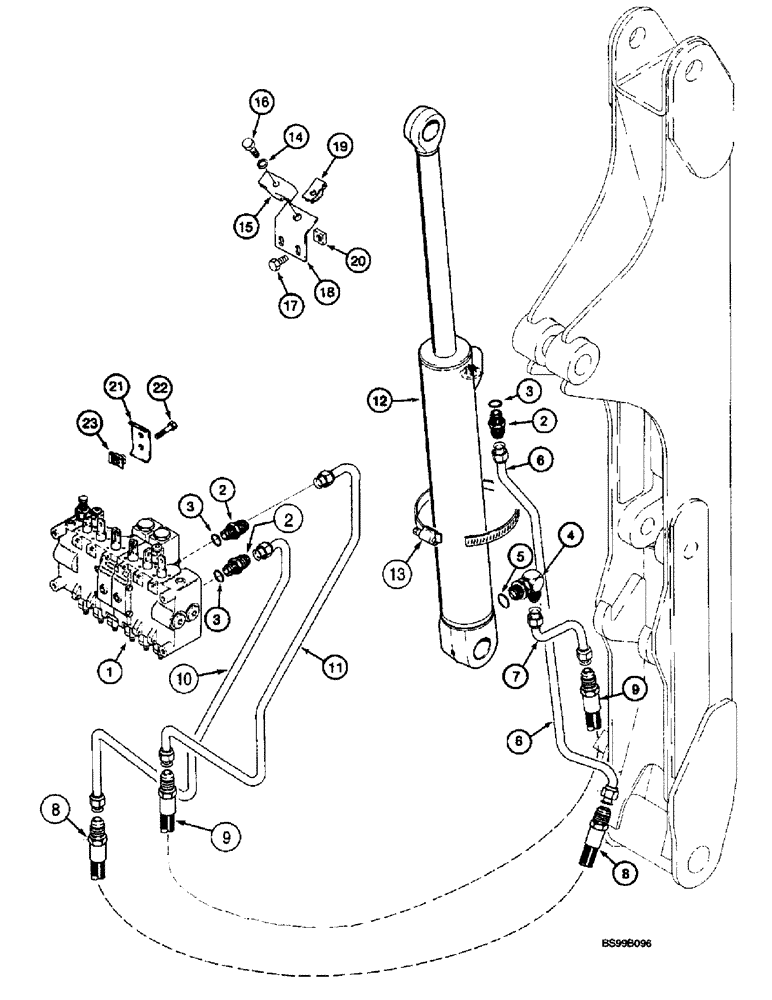

Схема запчастей Case 660 - (8-049A) - BACKHOE DIPPER CYLINDER HYDRAULIC CIRCUIT - D125 BACKHOE, BACKHOE SERIAL NUMBER JAF0218189 AND AFTER (08) - HYDRAULICS
8
2
8
20
6
11
22
1
12
2
3
9
5
6
23
2
14
21
3
16
15
17
10
4
18
9
19
7

Артикул

Название

Примечание

Количество

1

H674500

VALVE

ASSEMBLY - control, backhoe, parts list Figs. 8-52 - 8-58 see Fig. 9-22 for mounting

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 3

3шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

H439269

ELBOW

- 90 degree, special, Includes: Ref. 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

255557A1

TUBE

- at rod end of dipper cylinder

1шт.

7

255556A1

TUBE,116, 88 mm Length

- at closed end of dipper cylinder

1шт.

8

256927A1

HOSE ASSY.

HOSE - 1550 mm (61 inch) long, to rod end of dipper cylinder

1шт.

9

256927A1

HOSE ASSY.

HOSE - 1550 mm (61 inch) long, to closed end of dipper cylinder

1шт.

10

256134A1

TUBE,560, 255 mm Length

- valve to rod end of dipper cylinder

1шт.

11

256136A1

TUBE,595, 225 mm Length

- valve to closed end of dipper cylinder

1шт.

12

1346411C2

CYLINDER ASSY.

CYLINDER ASSEMBLY - 76 (3) ID x 498 mm (19-5/8 inch) stroke, dipper, parts list Fig. 8-68

1шт.

13

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

CLAMP, HOSE, , Adj. #60, 3.31/4.25 Type F Worm

1шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

15

D120613

CLAMP,20mm ID

- tube, spacer type

1шт.

16

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

1шт.

17

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

2шт.

18

253977A1

SUPPORT

BRACKET - clamp

1шт.

19

H346650

NUT

- U-type, 5/16 inch NC

1шт.

20

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

- square, 5/16 inch NC

2шт.

21

H45476

CLAMP

- tube

2шт.

22

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

4шт.

23

H346650

NUT

- U-type, 5/16 inch NC

4шт.
