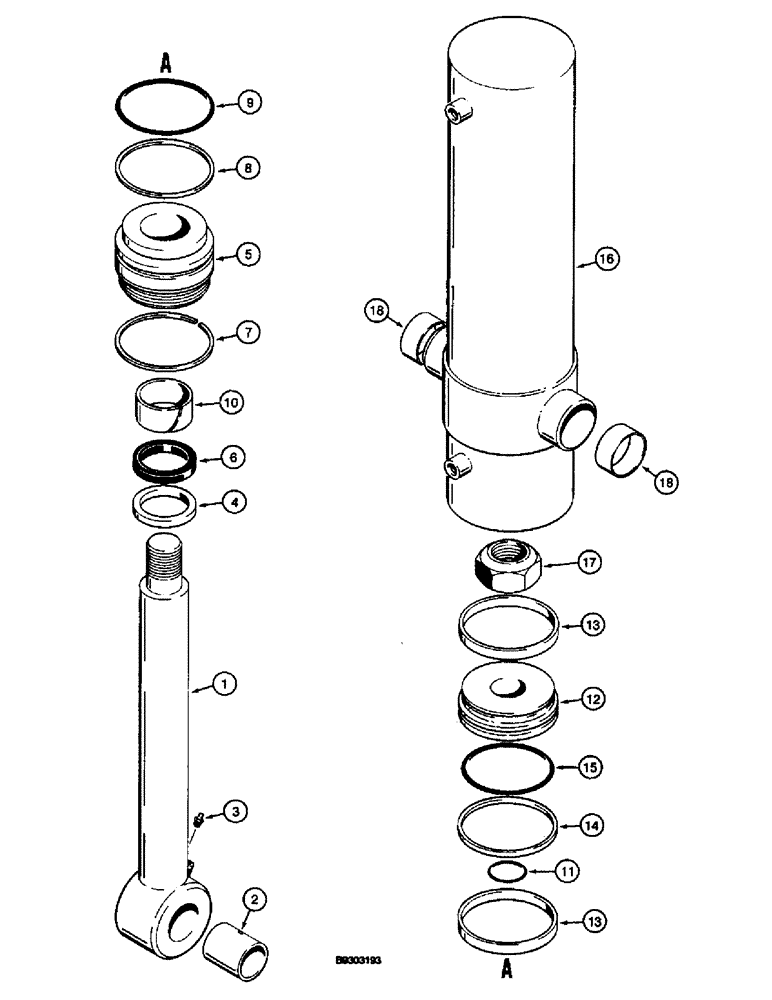

Запчасти Case 660 (8-047A) - BACKHOE BOOM CYLINDER HYDRAULIC CIRCUIT - D125 BACKHOE, BACKHOE SERIAL NUMBER JAF0218189 AND AFTER (08) - HYDRAULICS

1

H674500

VALVE

ASSEMBLY - control, backhoe, parts list Figs. 8-52 - 8-58, see Fig. 9-22 for mounting

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 3

3шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel

1шт.

5

H439269

ELBOW

- 90 degree, special, Includes: Ref. 6

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

7

256130A1

TUBE,506, 198 mm Length

- valve to rod end of boom cylinder

1шт.

8

256820A3

TUBE,343, 110 mm Length

- to rod end of boom cylinder

1шт.

9

256930A1

HOSE ASSY.

HOSE - 2300 mm (91 inch) long, to rod and closed end of boom cylinder

2шт.

10

256816A3

TUBE,12 mm ID, 360 mm Length

- to closed end of boom cylinder

1шт.

11

256132A1

TUBE,675, 290 mm Length

- valve to closed end of boom cylinder

1шт.

12

305352A1

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 551mm Stroke

CYLINDER ASSEMBLY - 76 (3) ID x 551 mm (21-11/16 inch) stroke, boom, parts list Fig. 8-67A

1шт.

13

214-2192

CLAMP,#92, 3.75"-4.06", T-Bolt

- adj, 3-3/4 - 4-1/16 inch dia

1шт.

14

304650A1

CLAMP

- U-Bolt, 3-1/2 inch

1шт.

15

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type 5/8", Insul, 3/8" Bolt

8шт.

16

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

2шт.

17

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

18

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

- square, 5/16 inch NC

2шт.

19

255013A1

SUPPORT

BRACKET - clamp

2шт.

20

A12032

CLAMP

- tube

2шт.

21

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

2шт.

22

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

6шт.

23

H346650

NUT

- U-type, 5/16 inch NC

2шт.

24

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

25

304086A1

SPACER

- clamp

2шт.

26

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

27

H45476

CLAMP

- tube

2шт.

28

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

4шт.

29

H346650

NUT

- U-type, 5/16 inch NC

4шт.
