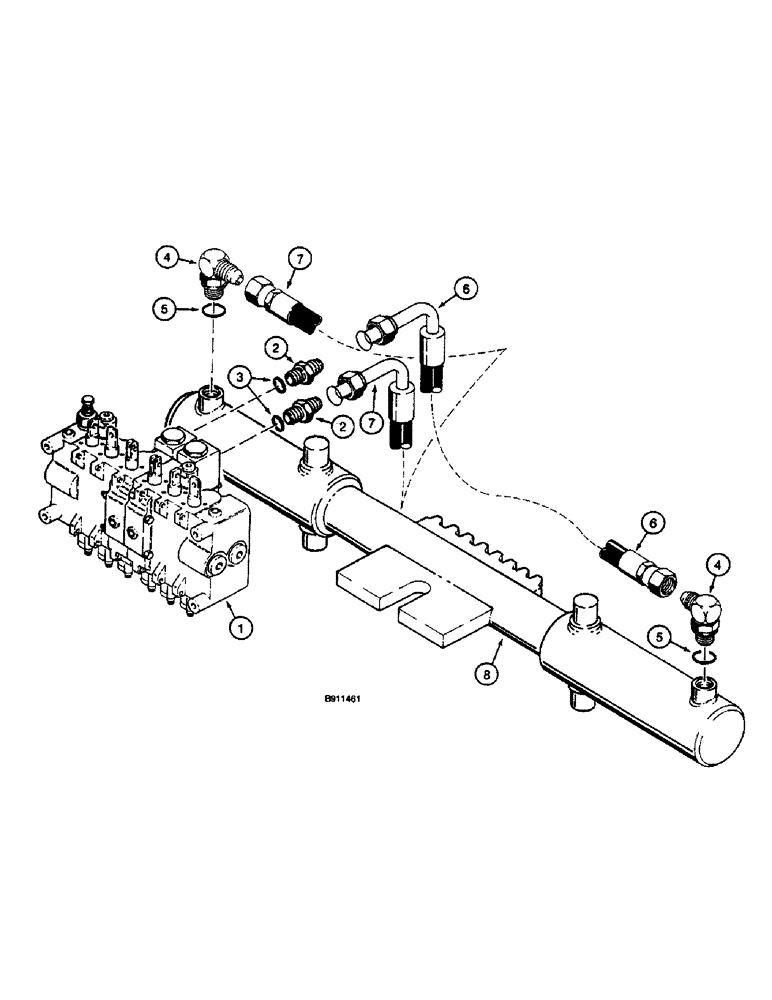

Запчасти Case 660 (8-042) - BACKHOE SWING CYLINDER HYDRAULIC CIRCUIT - D125 BACKHOE, PRIOR TO BACKHOE SERIAL NUMBER JAF0218189 (08) - HYDRAULICS

1

H674500

VALVE

ASSEMBLY - control, backhoe, parts list Figs. 8-52 - 8-58, see Fig. 9-22 for mounting

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

H439269

ELBOW

- 90 degree, special, Includes: Ref. 5

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

H439060

HOSE

- 1270 mm (50 inch) long, to right-hand side of swing cylinder

1шт.

7

H439061

HOSE

- 1040 mm (40-15/16 inch) long, to left-hand side of swing cylinder

1шт.

8

H673149

CYLINDER ASSY.

CYLINDER ASSEMBLY - 70 (2-3/4) ID x 254 mm (10 inch) stroke, swing, parts list Fig. 8-64

1шт.
