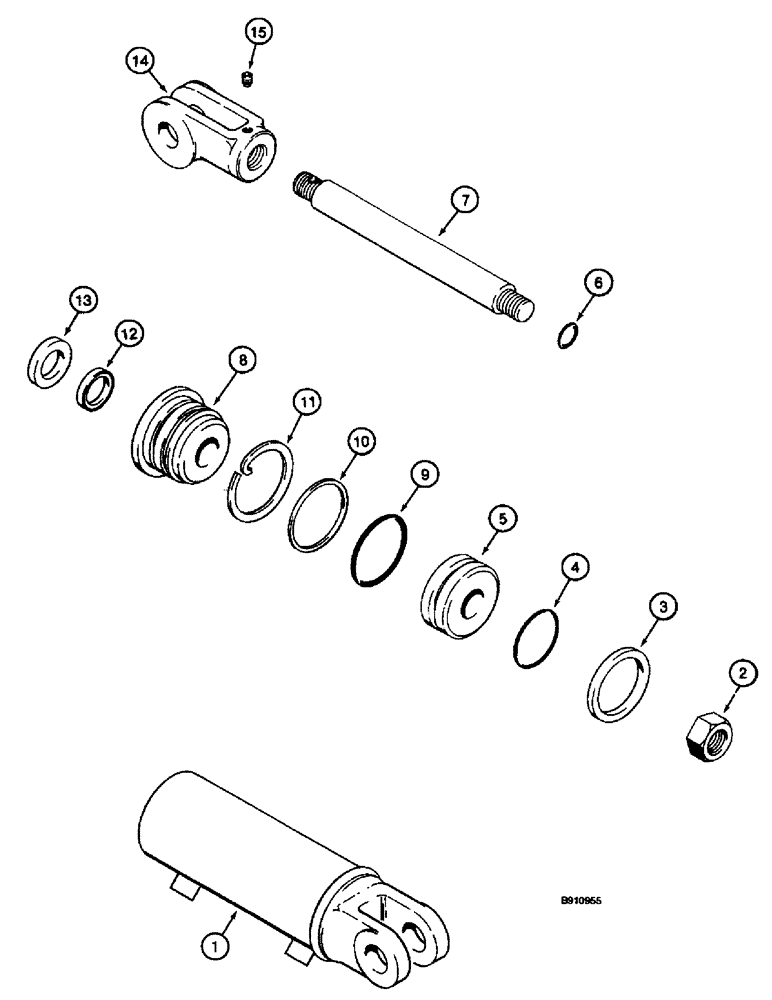

Запчасти Case 660 (8-038) - BACKFILL BLADE TILT CYLINDER - H673747 (08) - HYDRAULICS

H673747

CYLINDER

ASSEMBLY - 63.5 (2-1/2) ID x 89 mm (3-1/2 inch) stroke, backfill blade tilt, see Fig. 9-20 for mounting, Includes: Ref. 1 - 15

1шт.

1

103748A1

CASE

TUBE - cylinder

1шт.

2

232-46112

LOCK NUT,3/4"-16, GC

NUT, LOCK, 3/4"-16, GC

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of Seal Kit, P/N 103751A1

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of Seal Kit, P/N 103751A1

1шт.

5

85261C2

PISTON

- cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of Seal Kit, P/N 103751A1

1шт.

7

103749A1

SHAFT

ROD - piston

1шт.

8

103746A1

HEAD

GLAND - cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of Seal Kit, P/N 103751A1

1шт.

10

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of Seal Kit, P/N 103751A1

1шт.

11

NSS

NOT SOLD SEPARAT

WIRE - locking, gland

1шт.

Part of Seal Kit, P/N 103751A1

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - U-cup, gland

1шт.

Part of Seal Kit, P/N 103751A1

1шт.

13

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of Seal Kit, P/N 103751A1

1шт.

14

103750A1

CLEVIS

- piston rod

1шт.

15

83-1316

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, hex socket, headless, 5/16 NC x 3/8 inch, cup point

1шт.

103751A1

SEAL KIT

KIT - seal, Includes: Ref. 3, 4, 6, and 9 - 13

1шт.
