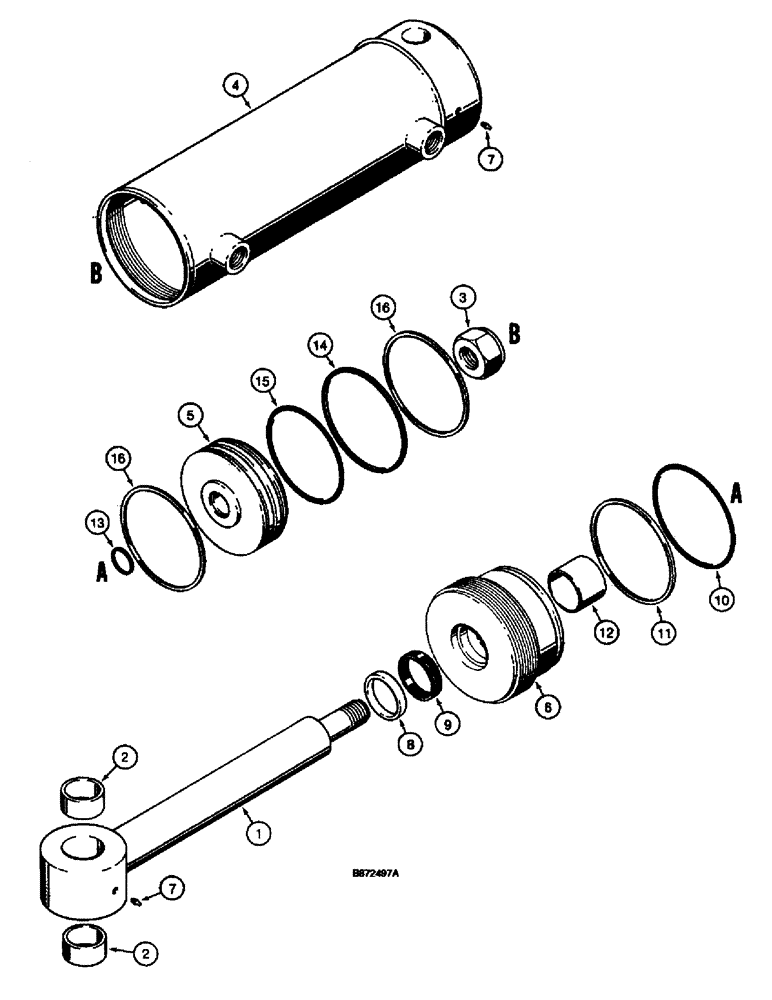

Запчасти Case 660 (8-036) - BACKFILL BLADE ANGLE/PLOW SWING CYLINDER - H673704 (08) - HYDRAULICS

H673704

CYLINDER,101.6 mm ID x 327 mm L

ASSEMBLY - 102 (4) ID x 152 mm (6 inch) stroke, backfill blade angle and plow swing, see Fig. 9-20 for mounting, Includes: Ref. 1 - 16

1-3шт.

1

N14835

PISTON ROD

ROD - piston

1шт.

2

107115A1

BUSHING

- cylinder rod

2шт.

3

232-24020

LOCK NUT,1 1/4"-12, GB

NUT, LOCK, 1 1/4"-12, GB

1шт.

4

H436771

SLEEVE CYLINDER

TUBE - cylinder

1шт.

5

N14850

PISTON

- cylinder

1шт.

6

N14836

GLAND

- cylinder

1шт.

7

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4-28 special threads x 1/2 inch

2шт.

8

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of Seal Repair Kit, P/N N14838

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - U-cup

1шт.

Part of Seal Repair Kit, P/N N14838

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of Seal Repair Kit, P/N N14838

1шт.

11

NSS

NOT SOLD SEPARAT

RING - backup, gland

1шт.

Part of Seal Repair Kit, P/N N14838

1шт.

12

NSS

NOT SOLD SEPARAT

RING - wear, gland

1шт.

Part of Seal Repair Kit, P/N N14838

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of Seal Repair Kit, P/N N14838

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of Seal Repair Kit, P/N N14838

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of Seal Repair Kit, P/N N14838

1шт.

16

NSS

NOT SOLD SEPARAT

RING - wear, piston

2шт.

Part of Seal Repair Kit, P/N N14838

1шт.

N14838

SEAL KIT

KIT - cylinder seal repair, Includes: Ref. 8 - 16

1шт.
