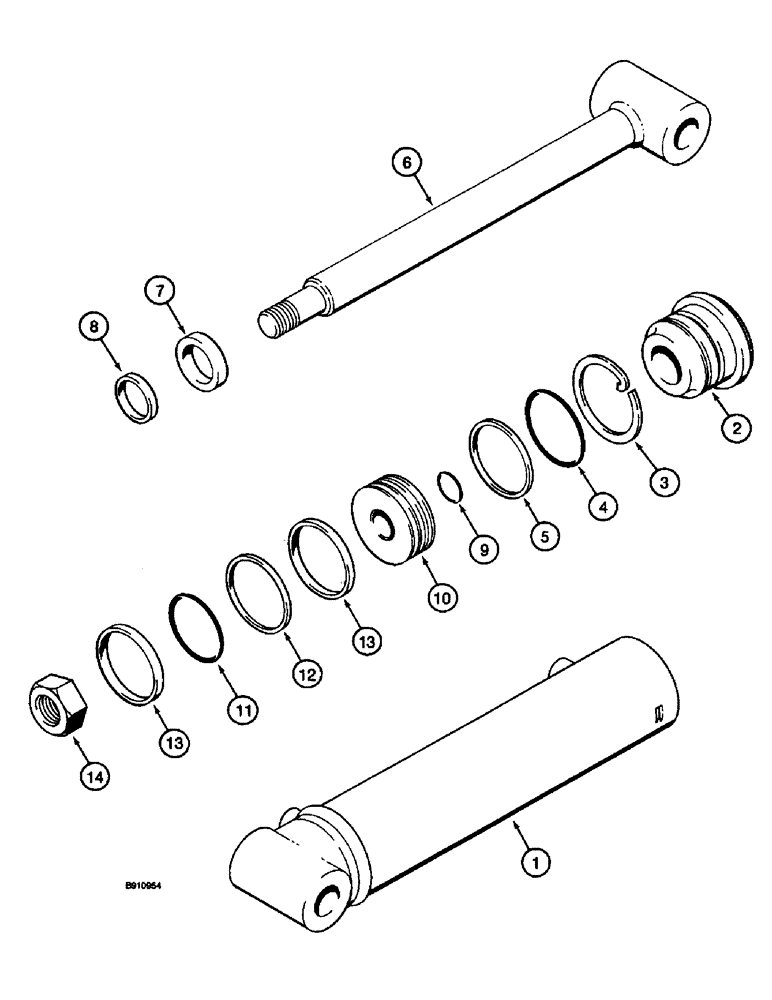

Запчасти Case 660 (8-034) - BACKFILL BLADE LIFT CYLINDER - H674312 (08) - HYDRAULICS

H674312

CYLINDER

ASSEMBLY - 63.5 (2-1/2) ID x 235 mm (9-1/4 inch) stroke, backfill blade lift, see Fig. 9-20 for mounting, Includes: Ref. 1 - 14

1шт.

1

H674937

CYLINDER

TUBE - cylinder assembly

1шт.

2

85260C1

HEAD

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

WIRE - locking, gland

1шт.

Part of Seal Kit, P/N H674939

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of Seal Kit, P/N H674939

1шт.

5

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of Seal Kit, P/N H674939

1шт.

6

H674938

PISTON ROD

ROD - piston

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of Seal Kit, P/N H674939

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - U-cup, piston rod

1шт.

Part of Seal Kit, P/N H674939

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - piston rod, nut end

1шт.

Part of Seal Kit, P/N H674939

1шт.

10

H439025

CYLINDER

PISTON - cylinder

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of Seal Kit, P/N H674939

1шт.

12

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

1шт.

Part of Seal Kit, P/N H674939

1шт.

13

NSS

NOT SOLD SEPARAT

RING - wear, piston

2шт.

Part of Seal Kit, P/N H674939

1шт.

14

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

H674939

GASKET KIT

KIT - seal, Includes: Ref. 3 - 5, 7 - 9, and 11 - 13

1шт.
