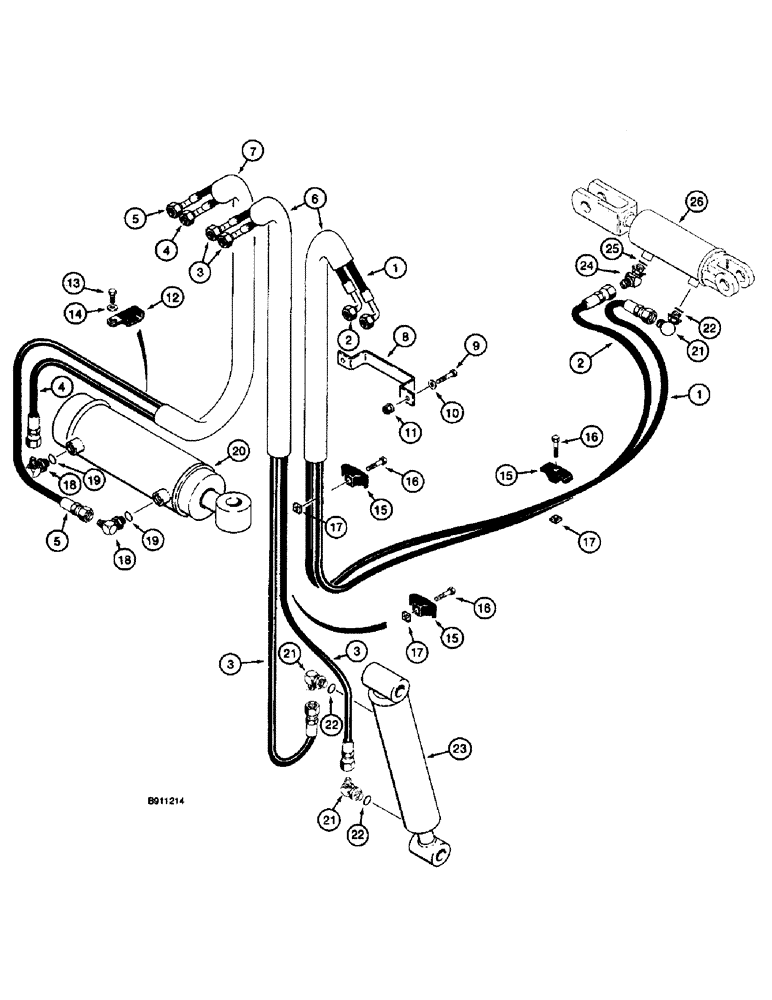

Запчасти Case 660 (8-032) - BACKFILL BLADE HYDRAULIC CIRCUIT, FRONT BULKHEAD PLATE TO CYLINDERS (08) - HYDRAULICS

1

H438496

HOSE

- 1380 mm (54-5/16 inch) long, front bulkhead plate to backfill blade tilt cylinder, rod end

1шт.

2

H438495

HOSE

- 1538 mm (60-1/2 inch) long, front bulkhead plate to backfill blade tilt cylinder closed end

1шт.

3

H438497

HOSE

- 978 mm (38-1/2 inch) long, front bulkhead plate to backfill blade lift cylinder, rod and closed ends

2шт.

4

H438498

HOSE

- 876 mm (34-1/2) long, front bulkhead plate to backfill blade angle cylinder, closed end

1шт.

5

H438499

HOSE

- 1080 mm (42-1/2 inch) long, front bulkhead plate to backfill blade angle cylinder, rod end

1шт.

6

H438137

LINING

SLEEVE - nylon, tilt and lift cylinder hoses

2шт.

7

H438500

SLEEVE

- nylon, angle cylinder hoses

1шт.

8

H438472

BRACKET

- hose retaining

1шт.

9

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

10

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

11

231-5146

FLANGE NUT,3/8"-16

2шт.

12

L71188

CLAMP,15.75mm ID, Coated, 13.46mm Bolt Hole, P Type

- P-type, 5/8 inch diameter

1шт.

13

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

14

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

1шт.

15

H438314

CLAMP

- hose

3шт.

16

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

3шт.

17

224-2206

SQUARE NUT,Sq, 3/8"-16

- square, 3/8 inch NC

3шт.

18

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss, Incl. Ref. 19

2шт.

20

H673704

CYLINDER,101.6 mm ID x 327 mm L

ASSEMBLY - 102 (4) ID x 152 mm (6 inch) stroke, backfill blade angle, parts list Fig. 8-36, see Fig. 9-20 for mounting

1шт.

21

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 22

3шт.

23

H674312

CYLINDER

ASSEMBLY - 63.5 (2-1/2) ID x 235 mm (9-1/4 inch) stroke, backfill blade lift, parts list Fig. 8-34, see Fig. 9-20 for mounting

1шт.

24

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 25

1шт.

26

H673747

CYLINDER

ASSEMBLY - 63.5 (2-1/2) ID x 89 mm (3-1/2 inch) stroke, backfill blade tilt, parts list Fig. 8-38, see Fig. 9-20 for mounting

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
