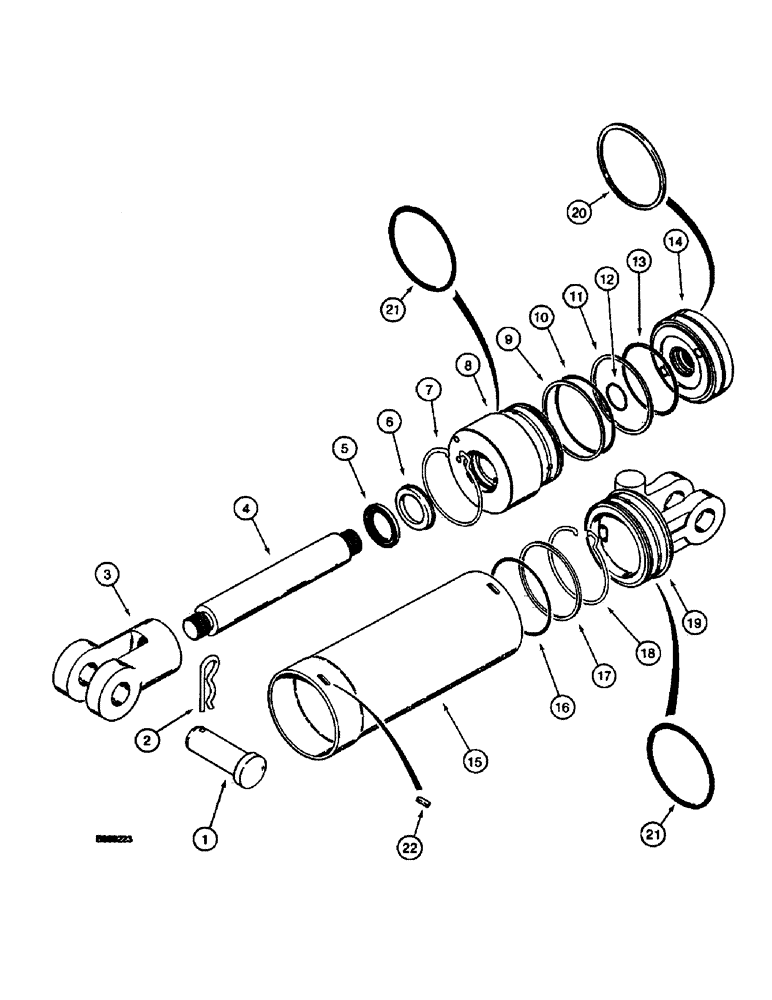

Запчасти Case 660 (8-030) - REEL CARRIER LIFT CYLINDER - 101645A1 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
101645A1
CYLINDER
ASSEMBLY - 64 (2-1/2) ID x 103 mm (8 inch) stroke, reel carrier lift, see Fig. 9-116 for reel carrier, Includes: Ref. 1 - 22
1шт.
1
102910A1
PIN
- upset clevis
2шт.
2
1978738C1
HAIR PIN COTTER
3/16", retaining
2шт.
3
102908A1
END
- piston rod
1шт.
4
102907A1
ROD
- piston
1шт.
5
NSS
NOT SOLD SEPARAT
WIPER - piston rod
1шт.
Part of Seal Repair Kit, P/N H673838.
1шт.
6
NSS
NOT SOLD SEPARAT
SEAL - U-cup, piston rod
1шт.
Part of Seal Repair Kit, P/N H673838.
1шт.
7
NSS
NOT SOLD SEPARAT
RING - locking
1шт.
Part of Seal Repair Kit, P/N H673838.
1шт.
8
102909A1
BEARING
GLAND - cylinder
1шт.
9
NSS
NOT SOLD SEPARAT
RING - backup, gland O-ring
1шт.
Part of Seal Repair Kit, P/N H673838.
1шт.
10
NSS
NOT SOLD SEPARAT
O-RING - gland
1шт.
Part of Seal Repair Kit, P/N H673838.
1шт.
11
A52305
RING, PISTON
SEAL - piston, outer
1шт.
Part of Seal Repair Kit, P/N H673838.
1шт.
12
NSS
NOT SOLD SEPARAT
O-RING - piston rod
1шт.
Part of Seal Repair Kit, P/N H673838.
1шт.
13
NSS
NOT SOLD SEPARAT
O-RING - piston
1шт.
Part of Seal Repair Kit, P/N H673838.
1шт.
14
102905A1
PISTON
- cylinder
1шт.
15
102906A1
TUBE
- cylinder
1шт.
16
NSS
NOT SOLD SEPARAT
O-RING - cylinder tube
1шт.
Part of Seal Repair Kit, P/N H673838.
1шт.
17
NSS
NOT SOLD SEPARAT
RING - backup, cylinder tube O-ring
1шт.
Part of Seal Repair Kit, P/N H673838.
1шт.
18
NSS
NOT SOLD SEPARAT
RING - locking
1шт.
Part of Seal Repair Kit, P/N H673838.
1шт.
19
102904A1
HEAD
- cylinder
1шт.
20
NSS
NOT SOLD SEPARAT
RING - wear, piston
1шт.
Part of Seal Repair Kit, P/N H673838.
1шт.
21
NSS
NOT SOLD SEPARAT
O-RING - tube to gland and head
2шт.
Part of Seal Repair Kit, P/N H673838.
1шт.
22
NSS
NOT SOLD SEPARAT
COVER - slot, locking ring
2шт.
Part of Seal Repair Kit, P/N H673838.
1шт.
H673838
SEAL
KIT - cylinder seal repair, Includes: Ref. 5 - 7, 9 - 13, 16 - 17 and 20 - 22
1шт.
Выбрано товаров: 38
