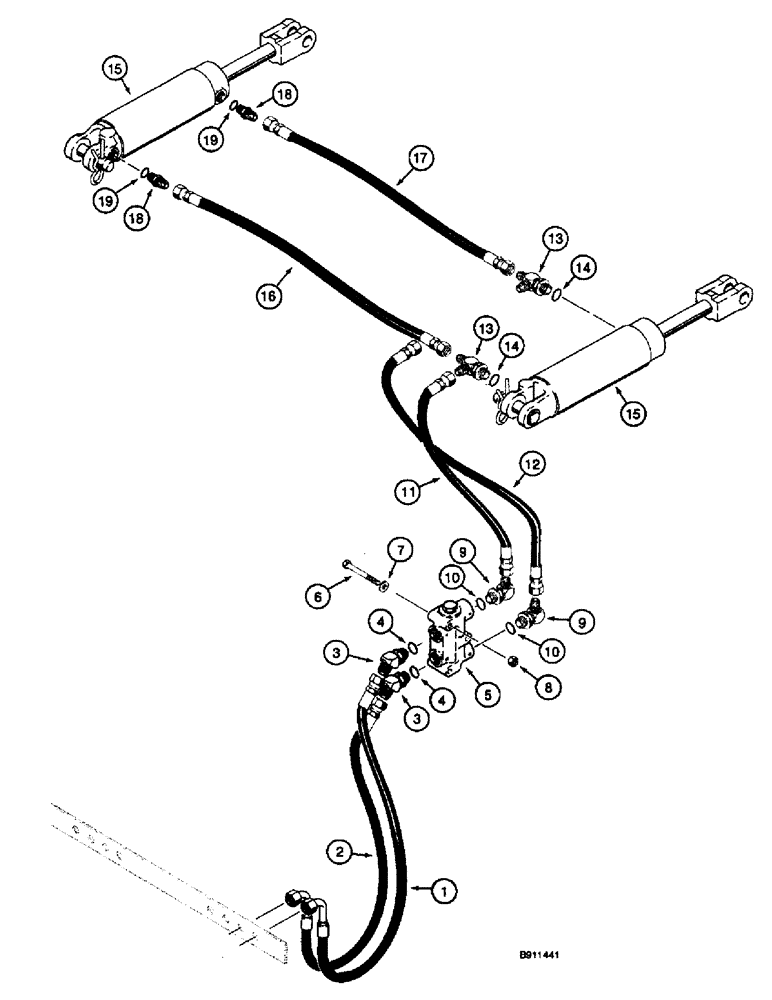

Запчасти Case 660 (8-028) - REEL CARRIER LIFT HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

H439224

HOSE

- 508 mm (20 inch) long, front bulkhead plate to reel carrier lockout valve "B" port

1шт.

2

H439225

HOSE

- 457 mm (18 inch) long, front bulkhead plate to reel carrier lockout valve "A" port

1шт.

3

218-5148

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 45 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss, Includes: Ref. 4

2шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

5

H672547

VALVE

ASSEMBLY - lockout, reel carrier, parts list Fig. 5-16

1шт.

6

413-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

- hex, 1/4 NC x 3 inch

2шт.

7

H426767

WASHER

- flat, 9/32 x 5/8 x 3/64 inch

2шт.

8

232-4114

LOCK NUT,1/4"-20, GC

NUT, LOCK, 1/4"-20, GC

2шт.

9

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss, Incl. Ref. 10

2шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

11

H438085

HOSE

- 267 mm (10-1/2 inch) long, reel carrier lockout valve "D" port to tee at right-hand reel carrier lift cylinder, closed end

1шт.

12

H438086

HOSE

- 540 mm (21-1/4 inch) long, reel carrier lockout valve "C" port to tee at right-hand reel carrier lift cylinder, rod end

1шт.

13

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 9/16-18 inch flare branch x flare x adj O-ring boss, Includes: Ref. 14

2шт.

15

101645A1

CYLINDER

ASSEMBLY - 64 (2-1/2) ID x 203 mm (8 inch) stroke, reel carrier lift, parts list Fig. 8-30

2шт.

16

H438080

HOSE

- 510 mm (20 inch) long, tee at right-hand reel carrier lift cylinder, closed end, to left-hand cylinder, closed end

1шт.

17

H438086

HOSE

- 540 mm (21-1/4 inch) long, tee at right-hand reel carrier lift cylinder, rod end to left-hand cylinder, rod end

1шт.

18

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 19

2шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
