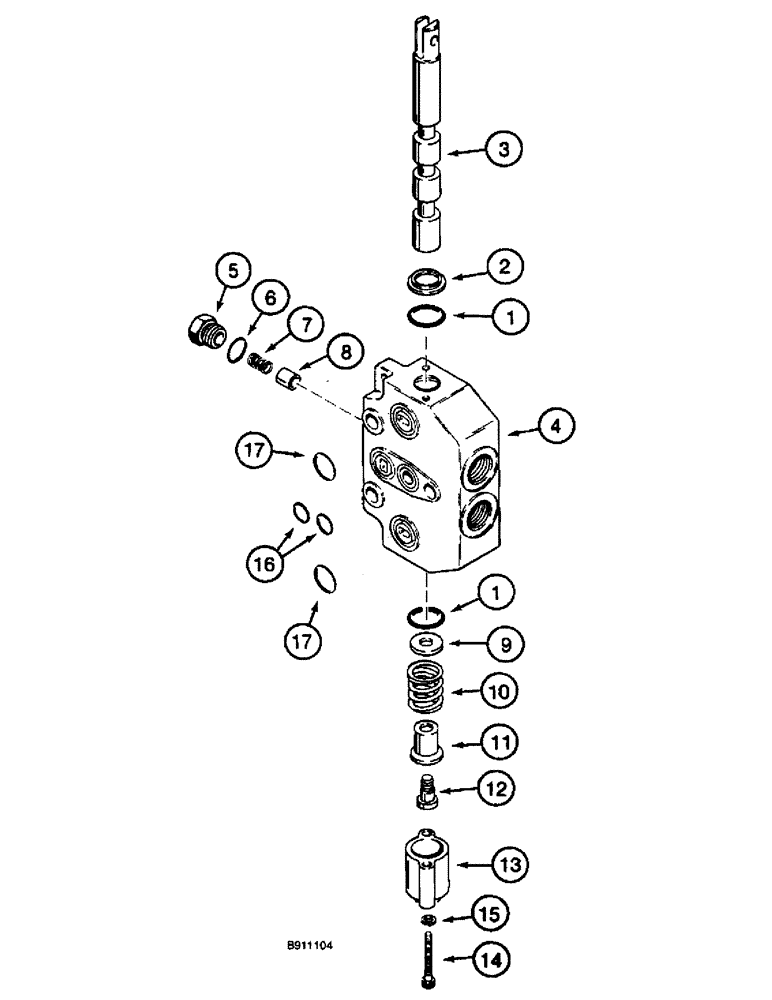

Запчасти Case 660 (8-024) - ATTACHMENT CONTROL VALVE - H674409, REAR STEERING AND ATTACHMENT LIFT SECTIONS (08) - HYDRAULICS

H674409

VALVE

ASSEMBLY - control, attachment and rear steering, parts list Figs. 8-18 - 8-26, Includes: Ref. 1 - 17

1шт.

100414A1

KNIFE SECTION

SECTION ASSEMBLY - rear steering and attachment lift, Includes: Ref. 1 - 15

2шт.

1

H438030

O-RING

- spool

2шт.

2

H438926

WIPER SEAL

WIPER - spool

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve section

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - valve section

1шт.

H438024

SET

KIT - load check, Includes: Ref. 5 - 8

1шт.

5

H438231

PLUG

- load check

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING - load check

1шт.

8

NSS

NOT SOLD SEPARAT

POPPET - load check

1шт.

100416A1

KIT

- spring center, Includes: Ref. 9 - 15

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER - return

1шт.

10

N9539

TENSION SPRING

SPRING - centering

1шт.

11

NSS

NOT SOLD SEPARAT

SPACER - spring

1шт.

12

NSS

NOT SOLD SEPARAT

BOLT - shoulder

1шт.

13

NSS

NOT SOLD SEPARAT

CAP - end

1шт.

14

62-31024

SCREW,Hex Soc Hd, #10-32 x 1 1/2"

BOLT - hex socket, No. 10 NF x 1-1/2 inch

2шт.

15

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

16

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

4шт.

17

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

-017, 70 Duro, .676" ID x .070" Thk

4шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
