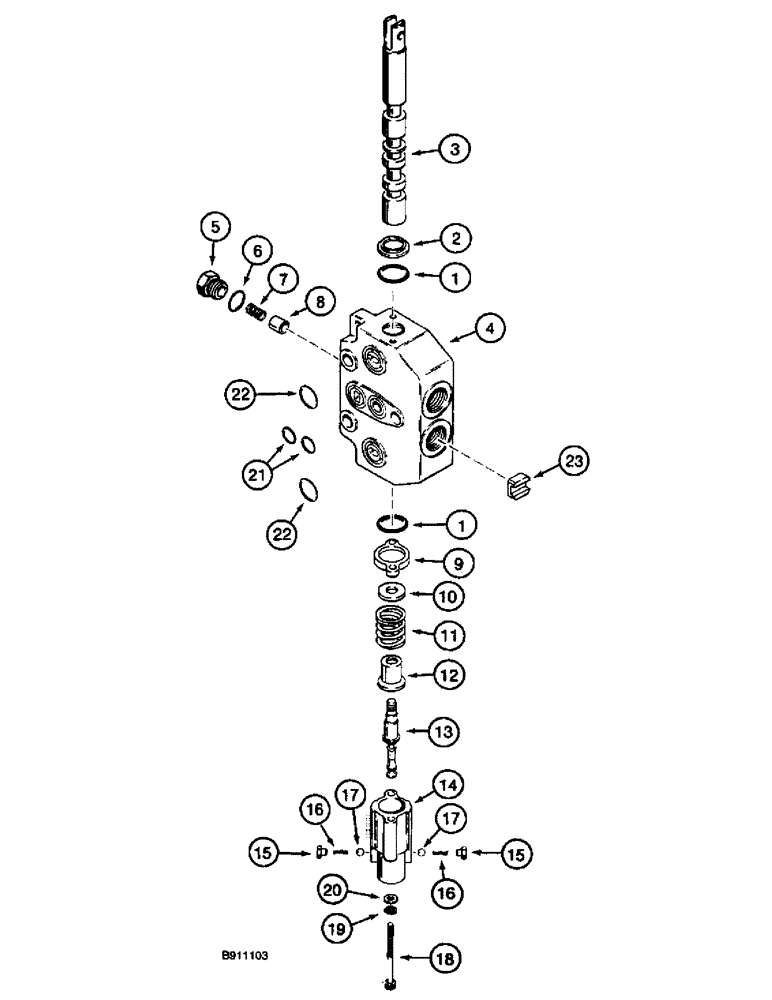

Запчасти Case 660 (8-022) - ATTACHMENT CONTROL VALVE - H674409, BLADE LIFT SECTION (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
H674409
VALVE
ASSEMBLY - control, attachment and rear steering, parts list Figs. 8-18 - 8-26, Includes: Ref. 1 - 23
1шт.
100415A1
KNIFE SECTION
SECTION ASSEMBLY - blade lift, Includes: Ref. 1 - 20
1шт.
1
H438030
O-RING
- spool
2шт.
2
H438926
WIPER SEAL
WIPER - spool
1шт.
3
NSS
NOT SOLD SEPARAT
SPOOL - valve section
1шт.
4
NSS
NOT SOLD SEPARAT
BODY - valve section
1шт.
H438024
SET
KIT - load check, Includes: Ref. 5 - 8
1шт.
5
H438231
PLUG
- load check, Includes: Ref. 6
1шт.
7
NSS
NOT SOLD SEPARAT
SPRING - load check
1шт.
8
NSS
NOT SOLD SEPARAT
POPPET - load check
1шт.
100417A1
KIT
- detent, Includes: Ref. 9 - 20
1шт.
9
NSS
NOT SOLD SEPARAT
SPACER - spool
1шт.
10
NSS
NOT SOLD SEPARAT
WASHER - flat, special
1шт.
11
NSS
NOT SOLD SEPARAT
SPRING - return
1шт.
12
NSS
NOT SOLD SEPARAT
SPACER - spring
1шт.
13
NSS
NOT SOLD SEPARAT
SPOOL - detent
1шт.
14
NSS
NOT SOLD SEPARAT
CAP - detent end
1шт.
15
NSS
NOT SOLD SEPARAT
PLUG - detent
2шт.
16
NSS
NOT SOLD SEPARAT
SPRING - detent
2шт.
17
NSS
NOT SOLD SEPARAT
BALL - steel
2шт.
18
NSS
NOT SOLD SEPARAT
BOLT - cap
2шт.
19
NSS
NOT SOLD SEPARAT
WASHER - lock
2шт.
20
NSS
NOT SOLD SEPARAT
WASHER - flat
2шт.
21
238-5015
O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro
-015, 70 Duro, .551" ID x .070" Thk
2шт.
22
238-5017
O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro
-017, 70 Duro, .676" ID x .070" Thk
2шт.
23
H438941
ORIFICE
PLATE - orifice, 2.388 mm (0.094 inch)
1шт.
6
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
Выбрано товаров: 27
