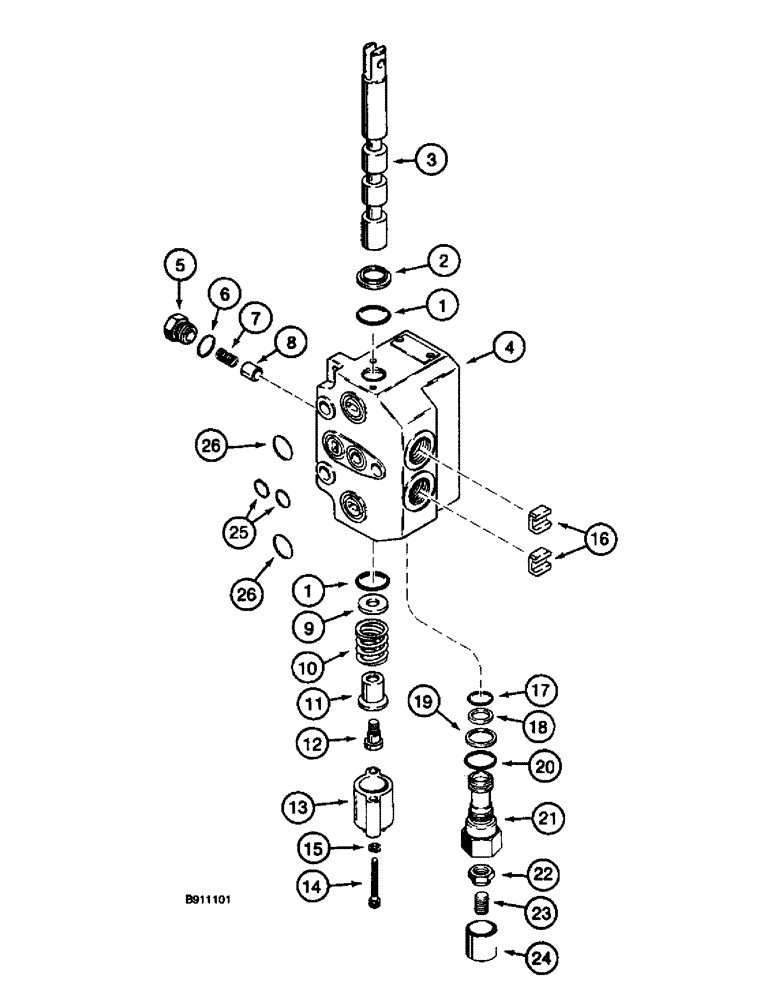

Запчасти Case 660 (8-020) - ATTACHMENT CONTROL VALVE - H674409, INLET AND BLADE TILT SECTION (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
H674409
VALVE
ASSEMBLY - control, attachment and rear steering, parts list Figs. 8-18 - 8-26, Includes: Ref. 1 - 26
1шт.
100412A1
KNIFE SECTION
SECTION ASSEMBLY - inlet and blade tilt, Includes: Ref. 1 - 15
1шт.
1
H438030
O-RING
- spool
2шт.
2
H438926
WIPER SEAL
WIPER - spool
1шт.
3
NSS
NOT SOLD SEPARAT
SPOOL - valve section
1шт.
4
NSS
NOT SOLD SEPARAT
BODY - valve section
1шт.
H438024
SET
KIT - load check, Includes: Ref. 5 - 8
1шт.
5
H438231
PLUG
- load check, Includes: Ref. 6
1шт.
7
NSS
NOT SOLD SEPARAT
SPRING - load check
1шт.
8
NSS
NOT SOLD SEPARAT
POPPET - load check
1шт.
100416A1
KIT
- spring center, Includes: Ref. 9 - 15
1шт.
9
NSS
NOT SOLD SEPARAT
WASHER - return
1шт.
10
N9539
TENSION SPRING
SPRING - centering
1шт.
11
NSS
NOT SOLD SEPARAT
SPACER - spring
1шт.
12
NSS
NOT SOLD SEPARAT
BOLT - shoulder
1шт.
13
NSS
NOT SOLD SEPARAT
CAP - end
1шт.
14
62-31024
SCREW,Hex Soc Hd, #10-32 x 1 1/2"
BOLT - hex socket, No. 10 NF x 1-1/2 inch
2шт.
15
492-11010
LOCK WASHER,#10
WASHER, LOCK, #10
2шт.
16
H438941
ORIFICE
PLATE - orifice, 2.388 mm (0.094 inch)
2шт.
100410A1
VALVE
ASSEMBLY - relief, Includes: Ref. 17 - 24
1шт.
17
238-6015
O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro
1шт.
18
H438044
GASKET
RING - backup
1шт.
19
101493A1
OIL SEAL
RING - backup
1шт.
20
238-6017
O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro
1шт.
21
NSS
NOT SOLD SEPARAT
VALVE - relief
1шт.
22
NSS
NOT SOLD SEPARAT
NUT - seal, special
1шт.
23
NSS
NOT SOLD SEPARAT
SCREW - set
1шт.
24
NSS
NOT SOLD SEPARAT
CAP - end
1шт.
25
238-5015
O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro
-015, 70 Duro, .551" ID x .070" Thk
2шт.
26
238-5017
O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro
-017, 70 Duro, .676" ID x .070" Thk
2шт.
6
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
Выбрано товаров: 31
