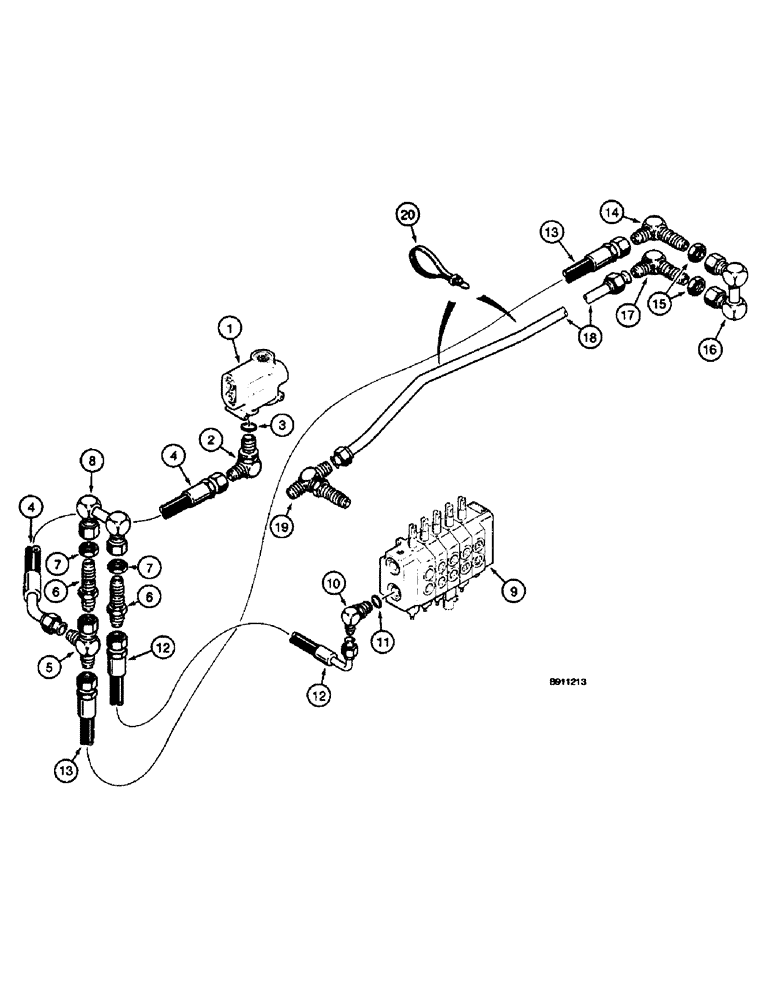

Запчасти Case 660 (8-014) - BASIC HYDRAULIC CIRCUIT, POWER BEYOND CIRCUIT (08) - HYDRAULICS

1

H672904

VALVE

ASSEMBLY - priority flow divider, parts list Fig. 5-14, see Fig. 5-6 for mounting

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

H438111

HOSE ASSY.

HOSE - 381 mm (15 inch) long, prority flow divider valve to tee at bulkhead plate

1шт.

5

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

- 1-1/16-12 inch flare branch x flare x swivel

1шт.

6

218-676

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

ADAPTER - straight, 1-1/16-12 inch flare x bulkhead flare

2шт.

7

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, bulkhead, 1-1/16 inch NF

2шт.

8

H673212

FITTING

- special

1шт.

9

H674409

VALVE

ASSEMBLY - control, attachment and rear steering, parts list Figs. 8-18 - 8-26, see Fig. 8-6 for mounting

1шт.

10

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adj O-ring boss, Includes: Ref. 11

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

12

H437996

HOSE ASSY.

HOSE - 832 mm (32-3/4 inch) long, attachment control valve to rear bulkhead plate

1шт.

13

H437997

HOSE

- 1702 mm (67 inch) long, rear bulkhead plate to right-hand front frame for backhoe supply circuit, see Fig. 8-40 for backhoe control valve supply line

1шт.

14

218-696

ELBOW,90 Degree Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1шт.

15

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, bulkhead, 1-1/16 inch NF

2шт.

16

H673212

FITTING

- special

1шт.

17

H438132

ADAPTER

ELBOW - 90 degree, special

1шт.

18

H675127

TUBE,19.1 mm OD

- backhoe return circuit to filter tee, see Fig. 8-40 for backhoe control valve return line

1шт.

19

218-807

TEE,1 1/16"-12, 37 Degree, Blkhd

- 1-1/16-12 inch bulkhead flare branch x flare x flare

1шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.
