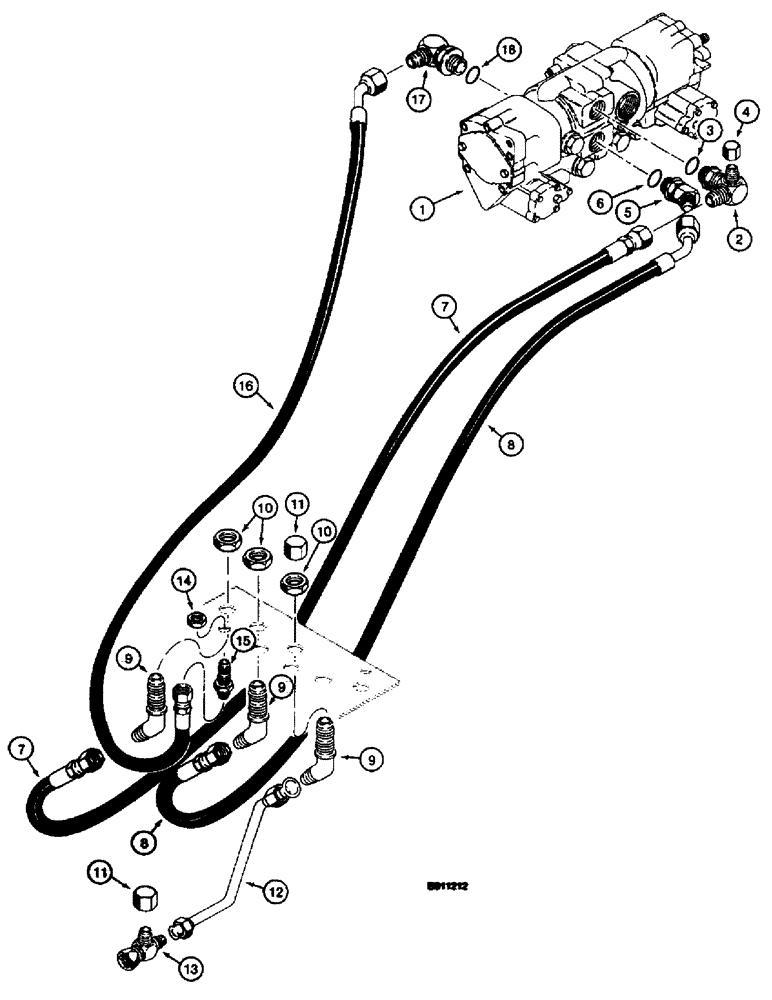

Запчасти Case 660 (8-012) - BASIC HYDRAULIC CIRCUIT, REAR BULKHEAD PLATE SUPPLY AND RETURN LINES (08) - HYDRAULICS

1

H673751

PUMP

ASSEMBLY - tandem, parts list Figs. 6-10 - 6-20, see Fig. 6-6 for mounting

1шт.

2

H438139

ADAPTER

TEE - special, Includes: Ref. 3

1шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

4

218-756

CAP,37 Degree, 7/8"-14

1шт.

5

218-5144

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 45 degree, 1-1/16-12 flare x 1-5/16-12 inch adj O-ring, Includes: Ref. 6

1шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

7

H438013

HOSE ASSY.

HOSE - 787 mm (31 inch) long, tandem pump "C" port to rear bulkhead plate, low loop circuit

1шт.

8

H438014

HOSE ASSY.

HOSE - 842 mm (33-1/8 inch) long, tandem pump "D" port to rear bulkhead plate, high loop circuit

1шт.

9

218-717

ELBOW,45 Degree Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

- 45 degree, 1-1/16-12 flare x bulkhead flare

3шт.

10

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, bulkhead, 1-1/16 inch NF

3шт.

11

218-335

CAP,37 Degree, 1 1/16"-12

- hex, 1-1/16-12 inch

2шт.

12

H675129

TUBE,19.1 mm OD

- rear bulkhead plate to return tee

1шт.

13

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

- 1-1/16-12 inch flare branch x flare x swivel

1шт.

14

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

1шт.

15

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ

1шт.

16

H437995

HOSE ASSY.

HOSE - 699 mm (27-1/2 inch) long, rear bulkhead plate adapter to tandem pump

1шт.

17

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss, Incl. Ref. 18

1шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.
