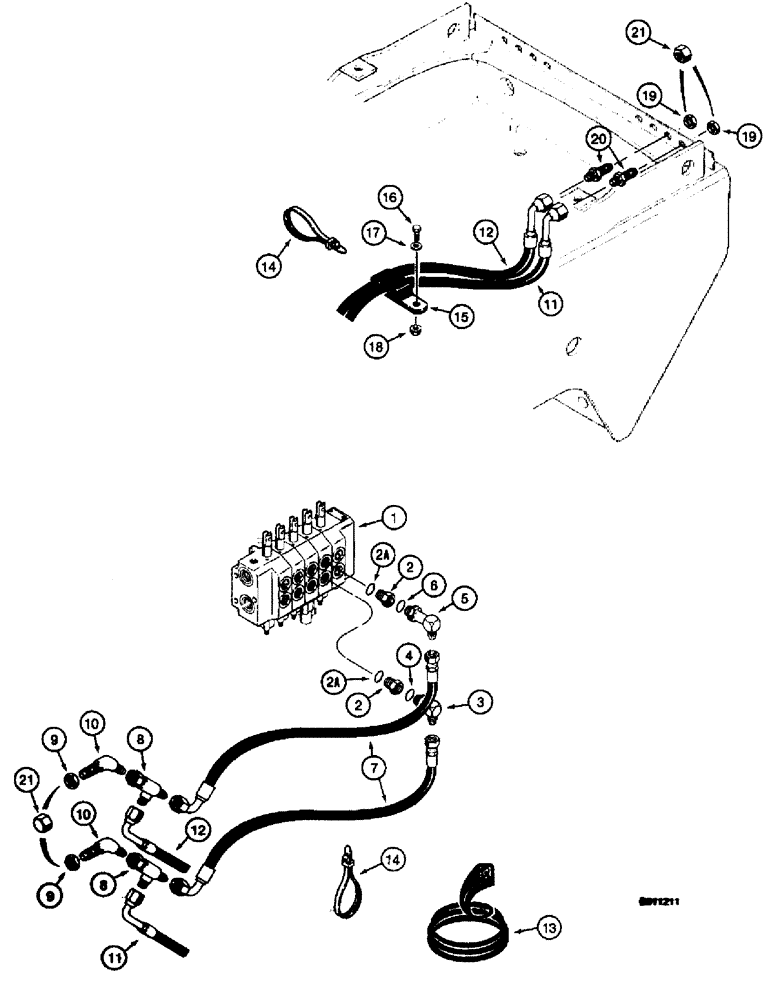

Запчасти Case 660 (8-010) - BASIC HYD. CIRCUIT, ATTACHMENT CNTRL. VALVE TO R.H. REAR CONSOLE, & CONSOLE TO FRONT BULKHEAD PLATE (08) - HYDRAULICS

1

H674409

VALVE

ASSEMBLY - control, attachment and rear steering, parts list Figs. 8-18 - 8-26, see Fig. 8-6 for mounting

1шт.

2

218-5314

ADAPTER,1/2" NPT Male x 1/2" Fem ORB

- straight, 3/4-16 O-ring boss x 9/16-18 inch female O-ring boss, Includes: O-ring

3шт.

3

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 4

1шт.

5

218-5552

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree long, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 6

1шт.

7

H438001

HOSE ASSY.

HOSE - 532 mm (21 inch) long, attachment control valve to right-hand rear console, trencher lift circuit, see Figs. 8-74 - 8-76 for trencher lift hydraulic circuit from console to lift cylinder

2шт.

8

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- swivel, 9/16-18 inch flare branch x flare x swivel

2шт.

9

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF

2шт.

10

218-714

ELBOW,45 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

- 45 degree, 9/16-18 inch flare x bulkhead flare

2шт.

11

H438487

HOSE ASSY.

HOSE - 2668 mm (105 inch) long, console bulkhead to front bulkhead plate, reel carrier raise circuit, see Fig. 8-28 for reel carrier cylinder circuit

1шт.

12

H438488

HOSE ASSY.

HOSE - 2651 mm (104-3/8 inch) long, console bulkhead to front bulkhead plate, reel carrier lower circuit, see Fig. 8-28 for reel carrier cylinder circuit

1шт.

13

H438326

MOLDING

- hose protection

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

15

A180154

CLAMP

- P-type

1шт.

16

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

17

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

1шт.

18

231-5146

FLANGE NUT,3/8"-16

1шт.

19

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF

2шт.

20

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

ADAPTER - straight, 9/16-18 inch flare x bulkhead flare

2шт.

21

218-754

CAP,37 Degree, 9/16"-18

- hex, 9/16-18 inch

4шт.

2

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
