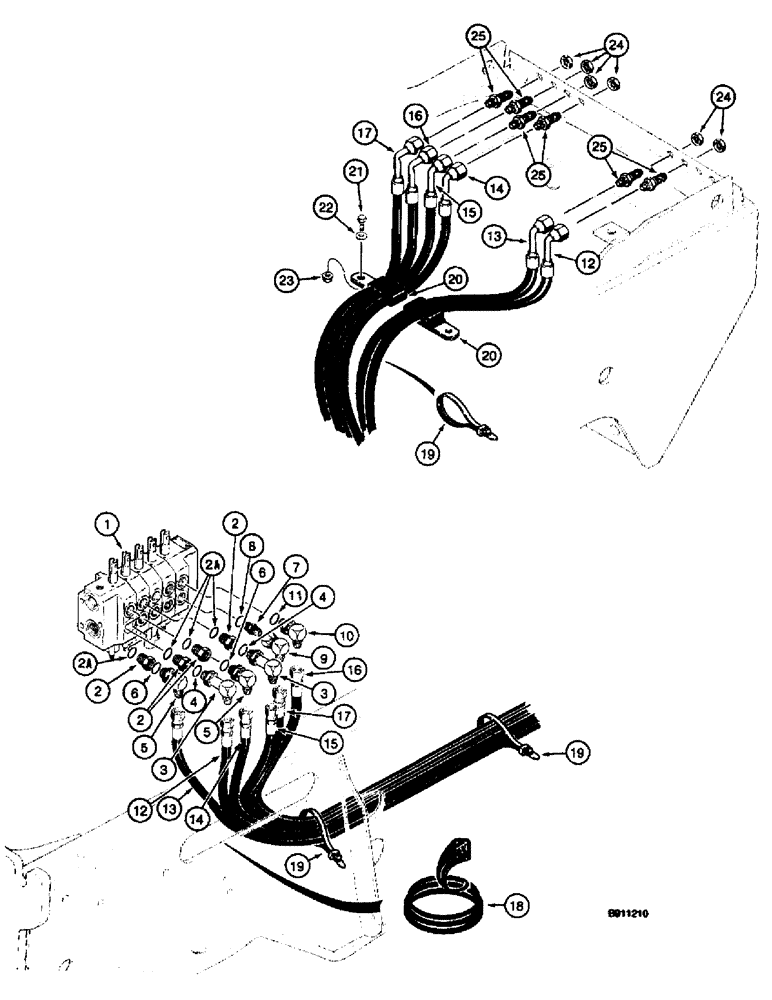

Запчасти Case 660 (8-008) - BASIC HYDRAULIC CIRCUIT, ATTACHMENT CONTROL VALVE TO FRONT BULKHEAD, PLATE FOR BACKFILL HYDRAULICS (08) - HYDRAULICS

1

H674409

VALVE

ASSEMBLY - control, attachment and rear steering, parts list Figs. 8-18 - 8-26, see Fig. 8-6 for mounting

1шт.

2

218-5314

ADAPTER,1/2" NPT Male x 1/2" Fem ORB

- straight, 3/4-16 O-ring boss x 9/16-18 inch female O-ring boss, Includes: O-ring

4шт.

3

218-5552

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree long, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 4

2шт.

5

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 6

2шт.

7

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes: Ref. 8

1шт.

9

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel

1шт.

10

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss, Incl. Ref. 11

1шт.

12

H438489

HOSE ASSY.

HOSE - 2252 mm (88-5/8 inch) long, attachment control valve to front bulkhead plate, backfill blade tilt cylinder circuit, rod end

1шт.

13

H438490

HOSE ASSY.

HOSE - 2268 mm (89-1/4 inch) long, attachment control valve to front bulkhead plate, backfill blade tilt cylinder circuit, closed end

1шт.

14

H438491

HOSE ASSY.

HOSE - 2283 mm (89-7/8 inch) long, attachment control valve to front bulkhead plate, backfill blade lift cylinder circuit, closed end

1шт.

15

H438492

HOSE ASSY.

HOSE - 2346 mm (92-3/8 inch) long, attachment control valve to bulkhead plate, backfill blade angle cylinder circuit, rod end

1шт.

16

H438493

HOSE ASSY.

HOSE - 2527 mm (99-1/2 inch) long, attachment control valve to front bulkhead plate, backfill blade angle cylinder circuit, closed end

1шт.

17

H438494

HOSE ASSY.

HOSE - 2547 mm (100-1/4 inch) long, attachment control valve to front bulkhead plate, backfill blade angle cylinder circuit, rod end

1шт.

18

H438326

MOLDING

- hose protection

1шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

20

A180154

CLAMP

- P-type

2шт.

21

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

22

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

23

231-5146

FLANGE NUT,3/8"-16

2шт.

24

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF

6шт.

25

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

ADAPTER - straight, 9/16-18 inch flare x bulkhead flare

6шт.

2

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
