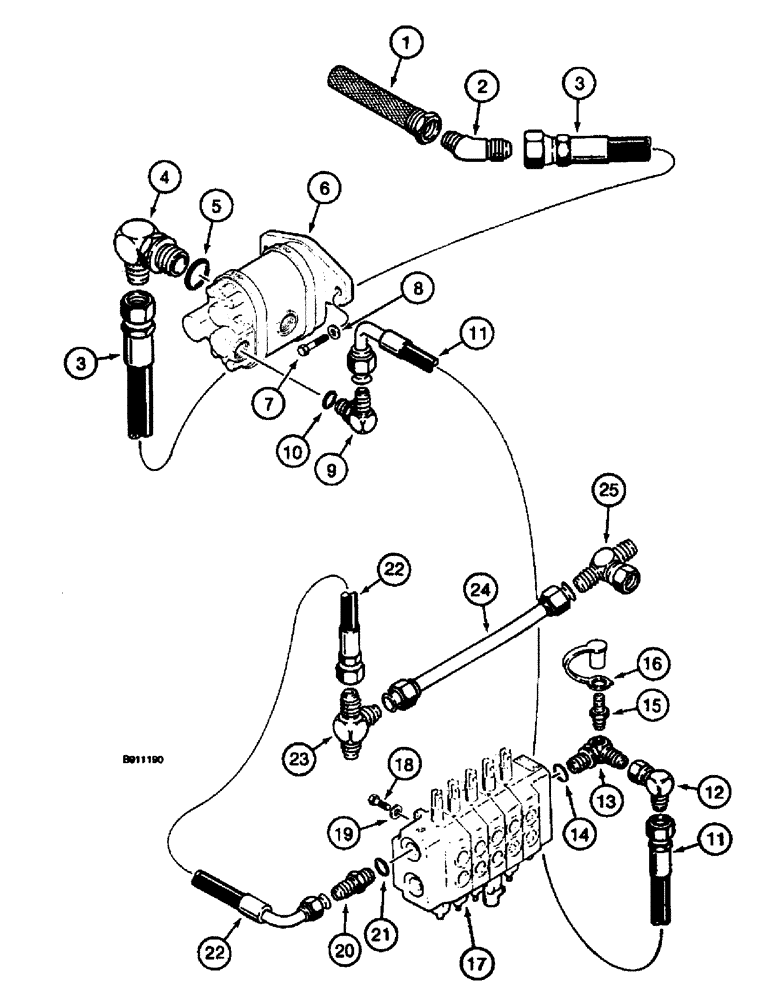

Запчасти Case 660 (8-006) - BASIC HYDRAULIC CIRCUIT, ATTACHMENT CONTROL VALVE SUPPLY AND RETURN LINES (08) - HYDRAULICS

1

H151399

FILTER STRAINER

SCREEN - filter, suction

1шт.

2

218-538

ELBOW,45 Degree, 1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF

- 45 degree, 1-5/16-12 flare x 1 inch PT

1шт.

3

H438015

HOSE ASSY.

HOSE - 687 mm (27 inch) long, suction, Serial Range: reservoir-pump

1шт.

4

218-5275

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

- 90 degree, 1-5/16-12 flare x 1-5/8-12 inch adj O-ring boss, Includes: Ref. 5

1шт.

5

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

6

H673753

PUMP

ASSEMBLY - dual, parts list figure 5-12

1шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

8

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

9

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

H438004

HOSE

- 518 mm (20-3/8 inch) long, dual pump to attachment control valve

1шт.

12

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 7/8-14 inch flare x swivel

1шт.

13

H438130

ADAPTER

ELBOW - 90 degree, special, Includes: Ref. 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

15

H434164

COUPLING

COUPLER - quick check

1шт.

16

H434163

DUST CAP

CAP - dust, coupler

1шт.

17

H674409

VALVE

ASSEMBLY - control, attachment and rear steering, parts list Figs. 8-18 - 8-26

1шт.

18

414-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

3шт.

19

H426775

WASHER

- flat, special, hardened

3шт.

20

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, Incl. Ref 21 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

22

H438276

HOSE ASSY.

HOSE - 406 mm (16 inch) long, attachment control valve to return tee

1шт.

23

H438131

ADAPTER

TEE - special

1шт.

24

H675128

TUBE,19.1 mm OD x 371 mm L

- return, tee to tee, see figure 8-16 for return filter hydraulic circuit from tee to filter

1шт.

25

218-807

TEE,1 1/16"-12, 37 Degree, Blkhd

- 1-1/16-12 inch bulkhead flare branch x flare x flare

1шт.
