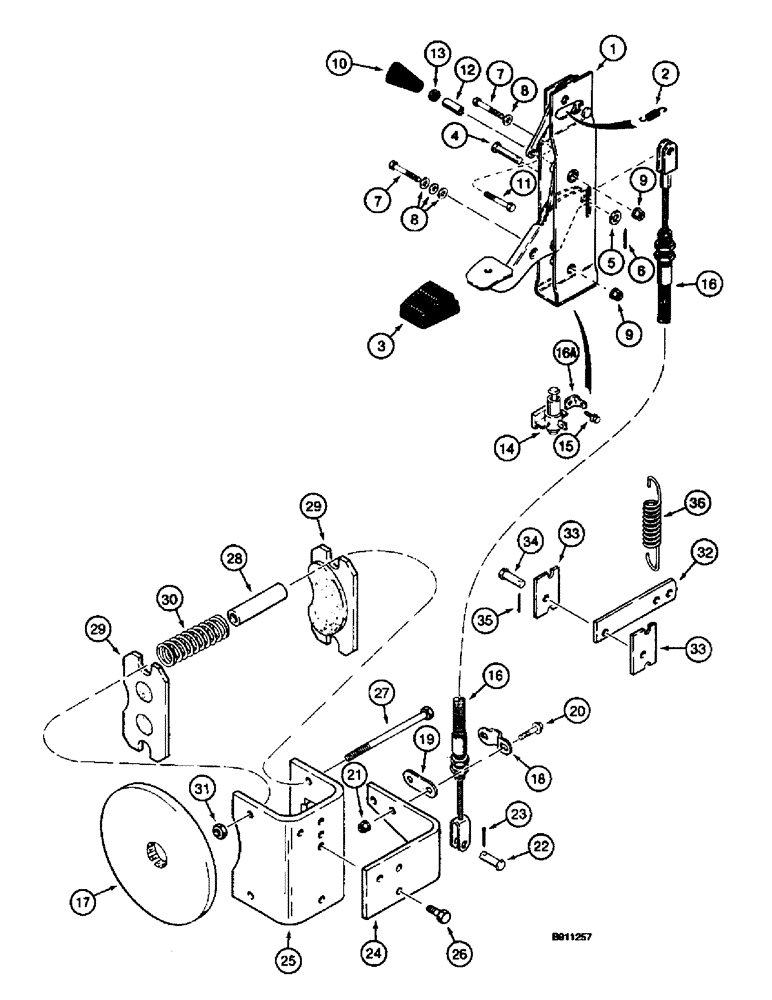

Запчасти Case 660 (7-2) - PARKING/EMERGENCY BRAKE (07) - BRAKES

H674713

LEVER

ASSEMBLY - parking brake, foot pedal actuated, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

LEVER - parking brake, foot pedal actuated

1шт.

2

102687A1

SPRING

- brake lever return

1шт.

3

N8204

PAD

- foot, rubber

1шт.

4

102688A1

PIN

- clevis, special

1шт.

5

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

1шт.

6

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

7

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

8

H426775

WASHER

- flat, special, hardened

8шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

10

F64341

KNOB

- parking brake release

1шт.

11

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

1шт.

12

H404723

SPACER

- parking brake release knob

1шт.

13

230-4214

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

14

N8343

SWITCH

- parking brake indicator, see Fig. 4-16 for wiring harness and connections

1шт.

15

281-34414

SELF-TAP SCREW,Hex Wash Hd, #8 x 7/8"

SCREW - self-tapping, hex washer head, No. 8 NC x 7/8 inch

1шт.

16

H673999

CABLE ASSY.

CABLE - parking brake

1шт.

16

H439264

PLATE, LOCKING

TAB - terminal

1шт.

17

A168790

DISC

- brake

1шт.

18

D121608

CLAMP

- cable

1шт.

19

D129747

PLATE

- oval spacer, plated

1шт.

20

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

22

H44206

CLEVIS COUPLING,7.94mm OD x 27.78mm L

PIN - clevis, 5/16 x 1 inch

1шт.

23

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

A182779

BRAKE

ASSEMBLY - park, Includes: Ref. 24 - 36

1шт.

24

A52380

BRACKET

- mounting, cable

1шт.

25

A52256

HOUSING

- brake

1шт.

26

413-712

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

- hex, 7/16 NC x 3/4 inch

3шт.

27

A52263

BOLT

- retaining, brake

2шт.

28

A52261

SPACER

- stator

2шт.

29

A182740

BRAKE PAD

PAD - brake

2шт.

30

A52262

SPRING

- compression

2шт.

31

NSS

NOT SOLD SEPARAT

NUT - hex jam, 7/16 inch NC (Discard)

2шт.

32

A52379

LEVER

- actuating

1шт.

33

A52257

PIVOT

PLATE - pivot

2шт.

34

A52259

PIN

- clevis, pivot

1шт.

35

A52260

PIN

- retainer, pivot pin

1шт.

36

A52264

SPRING

- extension

1шт.
