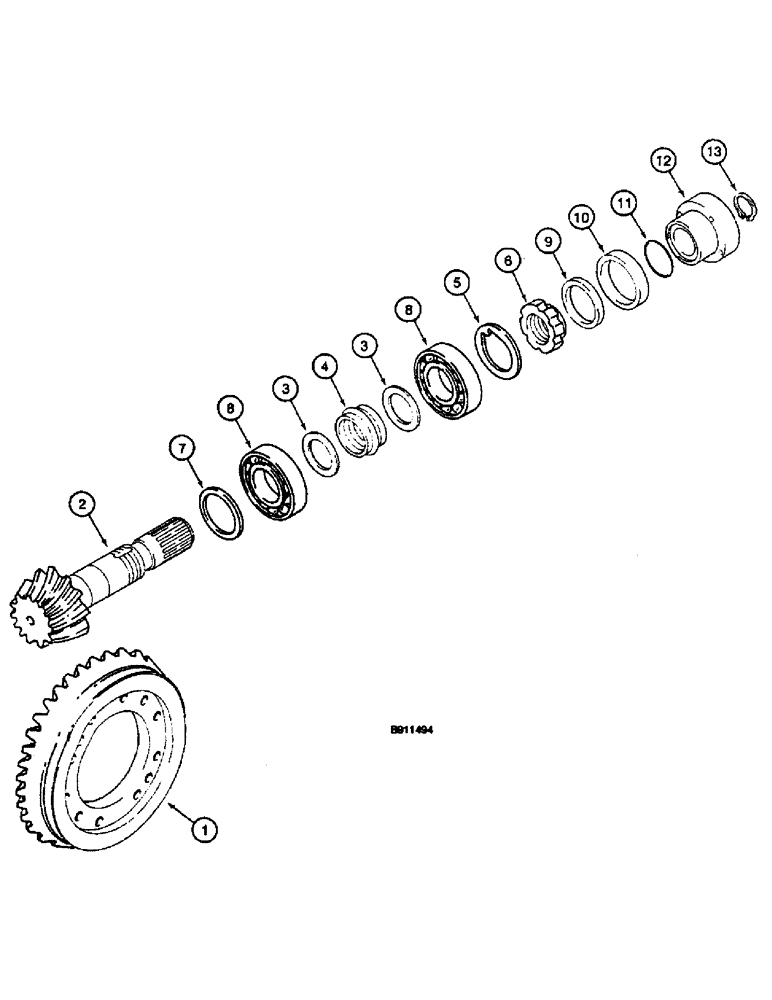

Запчасти Case 660 (6-50) - FRONT AND REAR DRIVE AXLE - H672824, RING AND PINION GEAR SET (06) - POWER TRAIN

H672824

CENTER AXLE

AXLE ASSEMBLY - front and rear drive, parts list Figs. 6-38 - 6-50, see Fig. 6-26 for mounting, Includes: Ref. 1 - 13

2шт.

1967004C1

GEAR, BEVEL

GEAR - set, ring and pinion, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR - ring, differential

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR - pinion, differential

1шт.

3

1984946C1

WASHER

- spacer

2шт.

4

1537627C1

SPACER

- collapsible

1шт.

5

1966574C1

WASHER

- special

1шт.

6

1966573C1

RING NUT

RING - nut, pinion gear

1шт.

7

1966172C1

SHIM

- 2.50 mm thick

1шт.

7

1966173C1

SHIM

- 2.60 mm thick

1шт.

7

1966174C1

SHIM

- 2.70 mm thick

1шт.

7

1966175C1

SHIM

- 2.80 mm thick

1шт.

7

1966176C1

SHIM

- 2.90 mm thick

1шт.

7

1966177C1

SHIM

- 3.00 mm thick

1шт.

7

1966178C1

SHIM

- 3.10 mm thick

1шт.

7

1966179C1

SHIM

- 3.20 mm thick

1шт.

7

1966180C1

SHIM

- 3.30 mm thick

1шт.

7

1966181C1

SHIM

- 3.40 mm thick

1шт.

8

3232726R91

TAPERED BEARING

- tapered roller, pinion gear

2шт.

9

1966264C1

THRUST WASHER

WASHER - thrust

1шт.

10

1966194C1

OIL SEAL

SEAL - oil

1шт.

11

100537A1

O-RING,0.103" Thk x 1.174" ID, -123, Cl 5, 75 Duro

- seal

1шт.

12

1966270C1

FLANGE

- differential

1шт.

13

800-1130

SNAP RING,M30, Ext

- Retaining M30, Ext

1шт.
