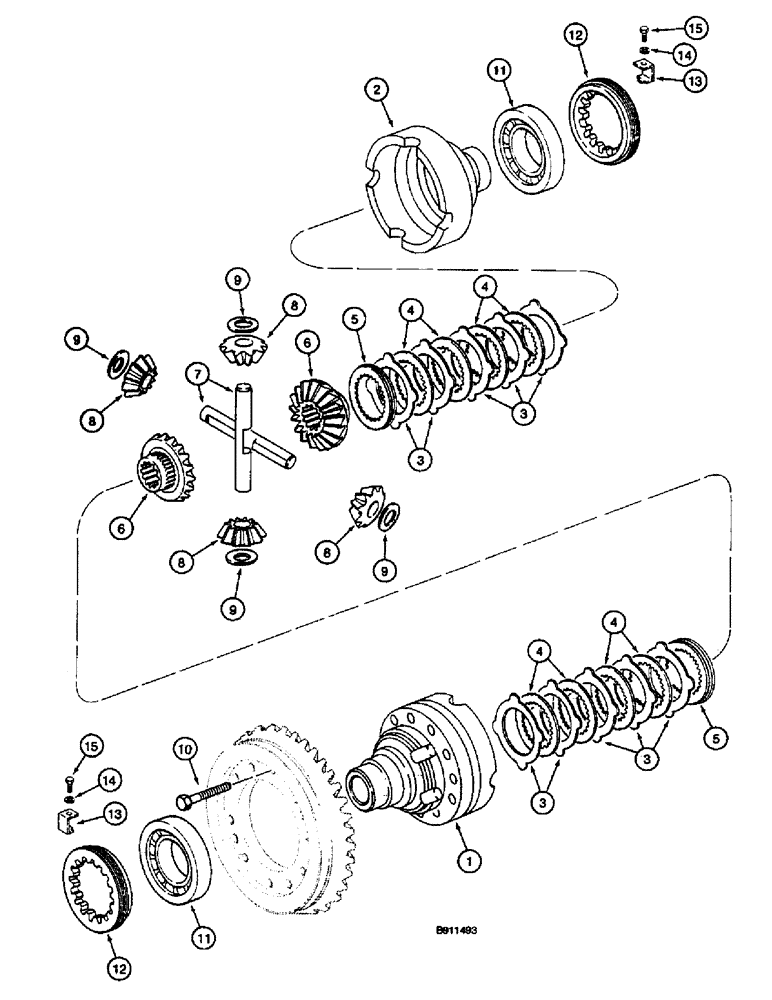

Запчасти Case 660 (6-48) - FRONT AND REAR DRIVE AXLE, DIFFERENTIAL (06) - POWER TRAIN

H672824

CENTER AXLE

AXLE ASSEMBLY - front and rear drive, parts list Figs. 6-38 - 6-50, see Fig. 6-26 for mounting, Includes: Ref. 1 - 15

2шт.

100540A1

DIFFERENTIAL

ASSEMBLY - front and rear drive axle, Includes: Ref. 1 - 15

1шт.

100542A1

HOUSING

ASSEMBLY - self-locking differential, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - differential, flange half

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - differential, plain half

1шт.

3

1966155C1

PLATE

- drive, friction, outer, differential housing

10шт.

4

1966156C1

WASHER

PLATE - driven, friction, inner, differential housing

8шт.

5

1966154C1

PLATE

- backing

2шт.

6

275765A1

SET OF PARTS

GEAR - pinion, differential, set of 2

1шт.

7

230508A1

SHAFT

- pinion gear

2шт.

8

1966152C1

SUN GEAR

GEAR - pinion, differential

4шт.

9

1966560C1

THRUST WASHER

WASHER - thrust, pinion gear

4шт.

10

827-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9

- hex, 10 - 1.5 x 75 mm, class 10.9

12шт.

11

3124682R1

BALL BEARING

- ball, differential

2шт.

12

1966559C1

NUT

RING, LOCKING

2шт.

13

1966153C1

LOCKING PLATE

BRACKET - lock

2шт.

14

892-11006

LOCK WASHER,M6

WASHER, LOCK, , Special M6

2шт.

15

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.
