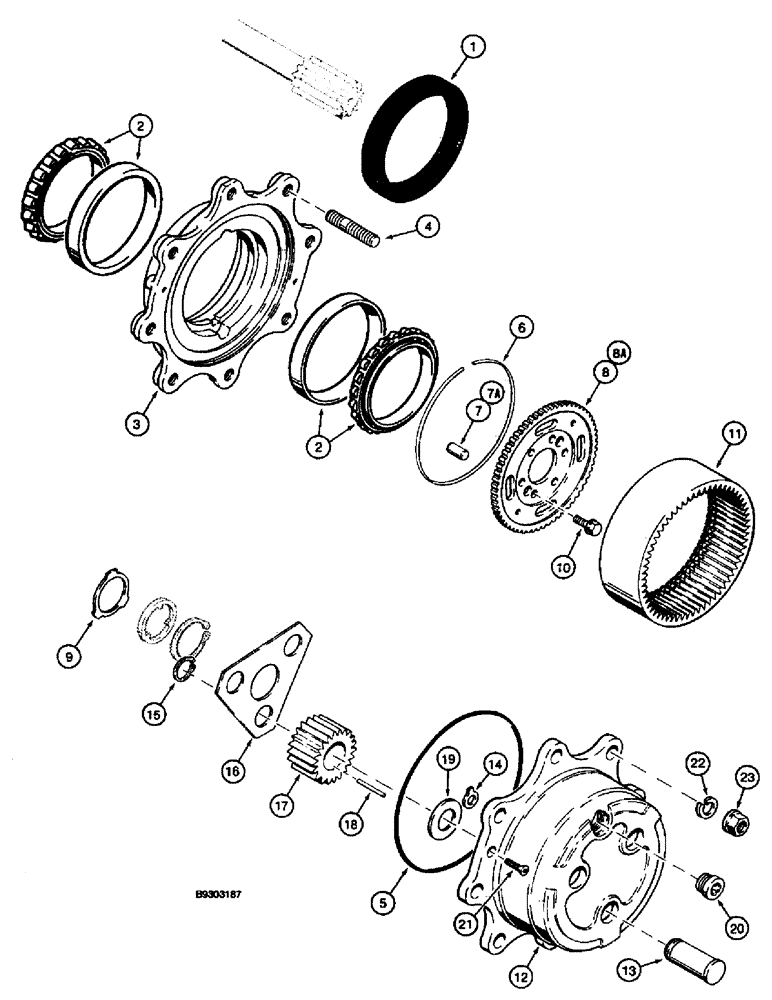

Запчасти Case 660 (6-46) - FRONT AND REAR DRIVE AXLE - H672824, PLANETARY (06) - POWER TRAIN

H672824

CENTER AXLE

AXLE ASSEMBLY - front and rear drive, parts list Fig. 6-38 - 6-50, see Fig. 6-26 for mounting, Includes: Ref. 1 - 23

2шт.

1

1984938C1

OIL SEAL

SEAL - oil, hub

2шт.

2

1966169C1

BEARING CONE,95 mm ID x 135 mm OD x 20 mm

BEARING - tapered roller, hub

4шт.

3

100558A1

HUB

- wheel attaching

2шт.

4

100556A1

STUD

- hub, special

16шт.

5

100552A1

O-RING,215.57mm ID x 220.81mm OD x 2.62mm Thk

- wheel hub

2шт.

6

100559A1

SPECIAL RING

RING - backup, wheel hub O-ring

2шт.

7

100560A1

PIN,16mm OD x 30mm L

- centering, prior to axle S.N. XH/0771

4шт.

7a

116426A1

BUSHING

- axle S.N. XH/0771 and after

4шт.

8

100564A1

PINION

PLATE - reaction, prior to axle S.N. XH/0771

2шт.

8

116427A1

GEAR

CARRIER - ring gear, axle S.N. XH/0771 and after

2шт.

9

100505A1

VALVE

PLATE - thrust

2шт.

10

5194169

BOLT,Hex Flg, M12 x 33, 12.9

BOLT - hex flange, 12 x 33 mm, class 12.9, Special

12шт.

11

100561A1

GEAR

- ring, planetary

2шт.

100554A1

PINION CARRIER

PLANETARY ASSEMBLY - drive axle, front and rear, Includes: Ref. 12 - 20A

2шт.

100553A1

HOUSING ASSY.

CARRIER ASSEMBLY - planetary, Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

CARRIER - planetary

1шт.

13

NSS

NOT SOLD SEPARAT

SHAFT - pinion gear

3шт.

14

1966579C1

WASHER

- thrust, replaced by K395093 lock pin, axle SN 1465 and after

3шт.

15

800-1134

SNAP RING,M34, Ext

RING, SNAP, , Retaining M34, Ext

3шт.

16

100555A1

LARGE PLATE

RETAINER - pinion gear

1шт.

17

100562A1

GEAR, PLANETARY

GEAR - pinion, planetary

3шт.

18

114295A1

10 NEEDLE BRG KIT

BEARING - needle, planetary gear, packet of 10

9шт.

19

K395091

THRUST WASHER

WASHER, THRUST, Pinion gear, Outer

3шт.

20

100557A1

PLUG, DRAIN,M30 x 2

PLUG - drain

1шт.

20a

238-6121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

Used with drain plug, Ref. 20, not shown -121, 90 Duro, 1.049" ID x .103" Thk

1шт.

21

K395082

SCREW,M8 x 20mm

- special, planetary cover plate

4шт.

22

K395083

WASHER,18.5mm ID x 29mm OD x 7mm Thk

- lock, special, special

16шт.

23

K395089

WHEEL NUT

- hex, special, special

16шт.
