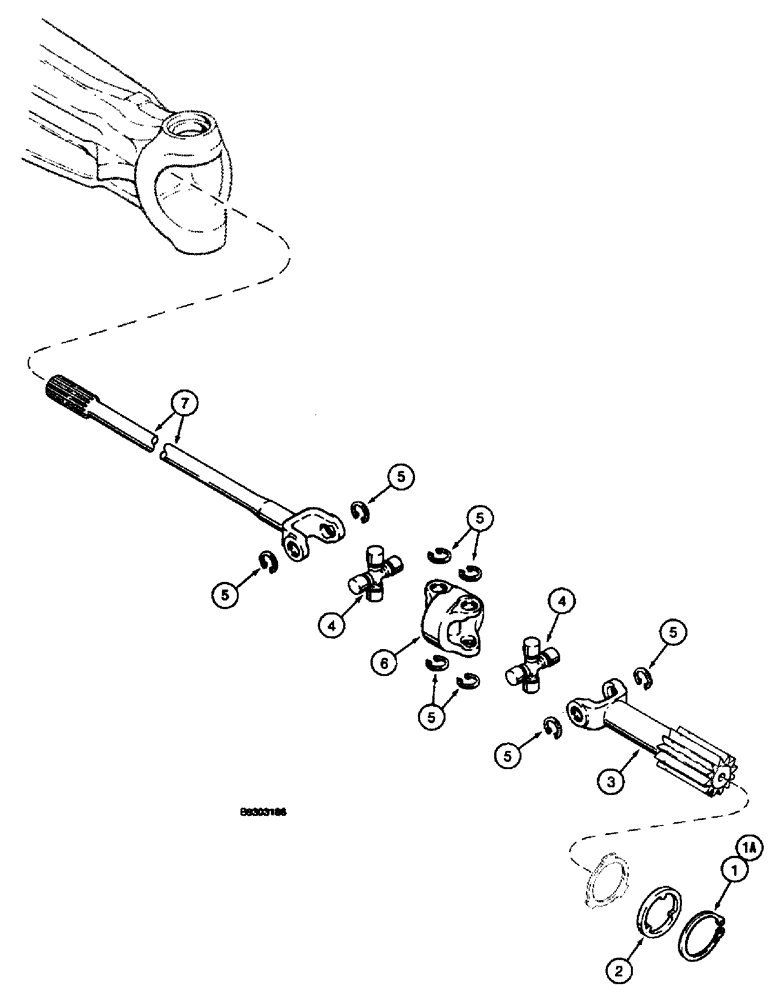

Запчасти Case 660 (6-44) - FRONT AND REAR DRIVE AXLE, AXLE SHAFTS (06) - POWER TRAIN

H672824

CENTER AXLE

AXLE ASSEMBLY - front and rear drive, parts list Figs. 6-38 - 6-50, see Fig. 6-26 for mounting, Includes: Ref. 1 - 7

2шт.

100549A1

SHAFT

ASSEMBLY - axle, front and rear, Includes: Ref. 1 - 7

2шт.

1

100543A1

CIRCLIP

RING - snap, axle shaft, prior to axle S.N. XH/0771

2шт.

1

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

RING - snap, axle shaft, axle S.N. XH/0771 and after

2шт.

2

100550A2

THRUST WASHER

WASHER - thrust, axle shaft

2шт.

3

100544A1

HALF SHAFT

SHAFT - axle, wheel side, short

2шт.

4

100546A1

U-JOINT SPIDER

JOINT - universal, axle shaft, cross, Includes: Ref. 5

4шт.

5

100548A1

CIRCLIP

RING - snap, universal joint

4шт.

6

100545A1

BODY

- connecting

2шт.

7

100547A1

SHAFT

- axle, differential side, long

2шт.
