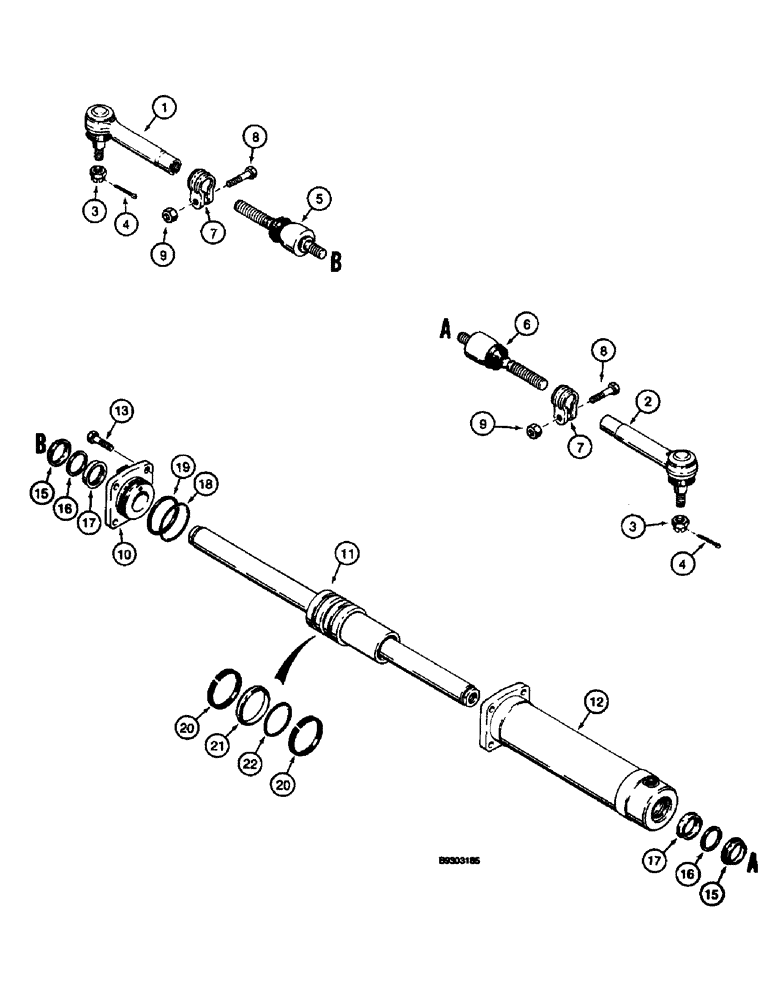

Запчасти Case 660 (6-42) - FRONT AND REAR DRIVE AXLE - H672824, STEERING CYLINDER (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
H672824
CENTER AXLE
AXLE ASSEMBLY - front and rear drive, parts list Figs. 6-39 - 6-50, for mounting see Fig. 6-26, Includes: Ref. 1 - 22
2шт.
1966246C1
BALL JOINT
JOINT ASSEMBLY - ball, left-hand, Includes: Ref. 1, 3, 4, 5, 7, 8 and 9
1шт.
1966203C1
BALL JOINT
JOINT ASSEMBLY - ball, right-hand, Includes: Ref. 2, 3, 4, 6, 7, 8 and 9
1шт.
1
1966128C1
BALL JOINT
JOINT - ball, left-hand
1шт.
2
1966129C1
BALL JOINT
JOINT - ball, right-hand
1шт.
3
905879R1
CROWN NUT
- hex, slotted, ball joint
1шт.
4
1966613C1
PIN, SPLIT (COTTER)
PIN - cotter
1шт.
5
1966127C1
BALL JOINT
ROD - tie, steering, adjuster, left-hand
1шт.
6
1966125C1
BALL JOINT
ROD - tie, steering, adjuster, right-hand
1шт.
7
1966130C1
CLAMP
- ball joint to tie rod
2шт.
8
1966640C1
BOLT
- hex, special
2шт.
9
1966126C1
LOCK NUT
- hex
2шт.
100530A1
STEERING CYLINDER
CYLINDER ASSEMBLY - steering, order 100525A1 kit to service seals, see below, Includes: Ref. 9 - 22
1шт.
10
100528A1
HEAD
GLAND - cylinder
1шт.
11
100527A1
ROD
- piston
1шт.
12
100526A1
TUBE
- cylinder
1шт.
13
114296A1
BOLT
BOLT - self-locking, special, steering cylinder
4шт.
15
NSS
NOT SOLD SEPARAT
WIPER - rod
2шт.
Part of Seal Kit, P/N 100525A1
1шт.
16
NSS
NOT SOLD SEPARAT
RING - backup
2шт.
Part of Seal Kit, P/N 100525A1
1шт.
17
NSS
NOT SOLD SEPARAT
SEAL - rod
2шт.
Part of Seal Kit, P/N 100525A1
1шт.
18
NSS
NOT SOLD SEPARAT
O-RING - gland
1шт.
Part of Seal Kit, P/N 100525A1
1шт.
19
NSS
NOT SOLD SEPARAT
RING - backup, gland O-ring
1шт.
Part of Seal Kit, P/N 100525A1
1шт.
20
NSS
NOT SOLD SEPARAT
RING - wear
2шт.
Part of Seal Kit, P/N 100525A1
1шт.
21
NSS
NOT SOLD SEPARAT
SEAL - piston
1шт.
Part of Seal Kit, P/N 100525A1
1шт.
22
NSS
NOT SOLD SEPARAT
O-RING - expander
1шт.
Part of Seal Kit, P/N 100525A1
1шт.
100525A1
SET
KIT - seal, steering cylinder, for rod, gland and piston, Includes: Ref. 15 - 22
1шт.
Выбрано товаров: 34
