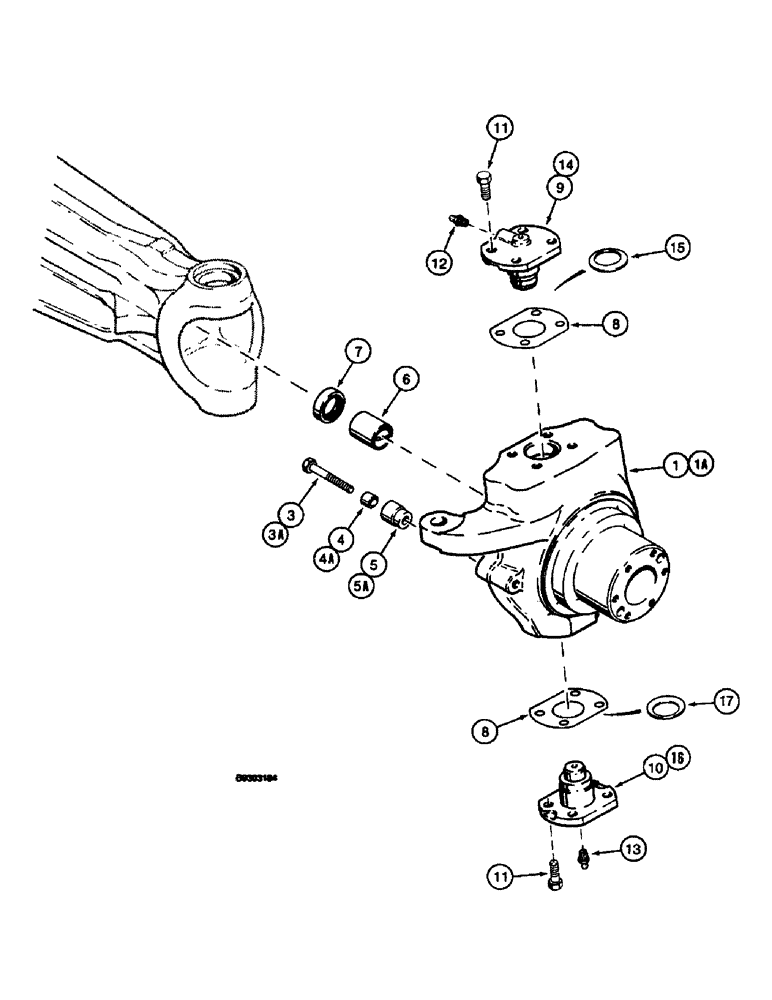

Запчасти Case 660 (6-40) - FRONT AND REAR DRIVE AXLE - H672824, SWIVEL HOUSING (06) - POWER TRAIN

H672824

CENTER AXLE

AXLE ASSEMBLY - front and rear drive, parts list Figs. 6-38 - 6-50, see Fig. 6-26 for mounting, Includes: Ref. 1 - 17

2шт.

1

100534A1

HOUSING

- swivel, right-hand front and left-hand rear, prior to axle S.N.XH/0771

1шт.

1

116429A1

LINK

HOUSING - swivel, right-hand front and left-hand rear,axle S.N. XH/0771 and after

1шт.

2

100535A1

HOUSING

- swivel, left-hand front and right-hand rear, prior to axle S.N. XH/0771, not shown

1шт.

2

116428A1

HOUSING

- swivel, left-hand front and right-hand rear, axle S.N. XH/0771 and after, not shown

1шт.

3

81859C1

BOLT,M14 x 2 x 75mm

- 14 mm, special, steering stop, prior to axle S.N. XH/0000

2шт.

3

1537664C1

BOLT,M16 x 100mm

BOLT - 16 mm, special, steering stop,axle S.N. XH/0000 and after

2шт.

4

D142909

BUSHING,15mm ID x 24.5mm OD x 10.5mm L

SPACER - steering stop bolt, prior to axle S.N. XH/0131

2шт.

4

105812A1

BUSHING

SPACER - steering stop bolt, axle S.N. XH/0000 and after

2шт.

5

81862C1

BUSHING

- steering stop bolt, prior to axle S.N. XH/0000

2шт.

5

105811A1

BUSHING

- steering stop bolt, axle S.N. XH/0000 and after

2шт.

6

100532A1

BUSHING

- swivel housing

2шт.

7

100529A1

OIL SEAL,45mm ID x 65mm OD x 12mm Thk

SEAL - oil, swivel housing

2шт.

8

1966187C1

SHIM,46mm ID x 86mm OD x 0.1mm Thk

- 0.10 mm thick, swivel cap, prior to axle S.N. XH/0000

1шт.

8

1966188C1

SPACER

SHIM - 0.19 mm thick, swivel cap, prior to axle S.N. XH/0000

1шт.

8

1966189C1

SPACER

SHIM - 0.35 mm thick, swivel cap, prior to axle S.N. XH/0000

1шт.

9

100531A1

PIN

- king, swivel housing cap, upper, prior to axle S.N. XH/0000

2шт.

10

1966190C1

PIN

- king, swivel housing cap, lower, prior to axle S.N. XH/0000

2шт.

11

100533A1

BOLT,Self-Lock, M12 x 30mm

- hex, special, 12 - 1.75 x 30 mm

16шт.

12

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

NIPPLE, LUBE, , Swivel cap M6 x 1, 16mm lg

2шт.

13

105813A1

NIPPLE, LUBE

FITTING - grease, 45 degree, 6 x 1 mm

2шт.

14

122265A1

PIN,35mm / 45mm OD x 45.5mm L

King, Swivel housing cap, Upper, Axle S/N XH/0000 and after

2шт.

15

122270A1

BELLEVILLE WASHER,36mm ID x 71mm OD x 2mm Th

- Belleville, upper, axle S.N. XH/0000 and after

2шт.

16

122264A1

PIN

King, Swivel housing cap, Lower, Axle S/N XH/0000 and after

2шт.

17

122268A1

BELLEVILLE WASHER

- Belleville, lower, axle S.N. XH/0000 and after

2шт.
