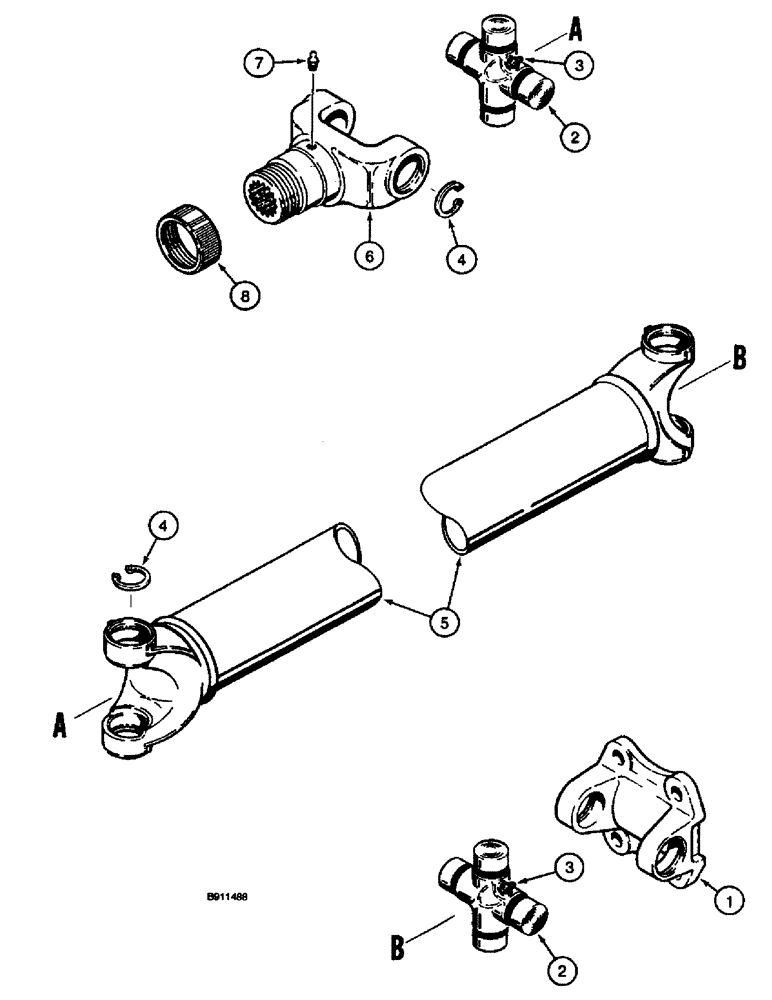

Запчасти Case 660 (6-36) - FRONT AND REAR DRIVE SHAFT- H674201 (06) - POWER TRAIN

H674201

DRIVE SHAFT

SHAFT ASSEMBLY - drive, front and rear, see Fig. 6-26 for mounting, Includes: Ref. 1 - 8

2шт.

1

122250A1

FORK

BRACKET - flange

1шт.

2

D70629

U-JOINT SPIDER

KIT - universal joint, Includes: Ref. 3 and 4

2шт.

3

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch

1шт.

4

11256

SNAP RING

- retaining, bearing

4шт.

5

H674827

SHAFT

- drive, front and rear

1шт.

6

H438701

FORK

YOKE - drive shaft

1шт.

7

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch

1шт.

8

H674826

CAP

- dust seal retaining

1шт.
