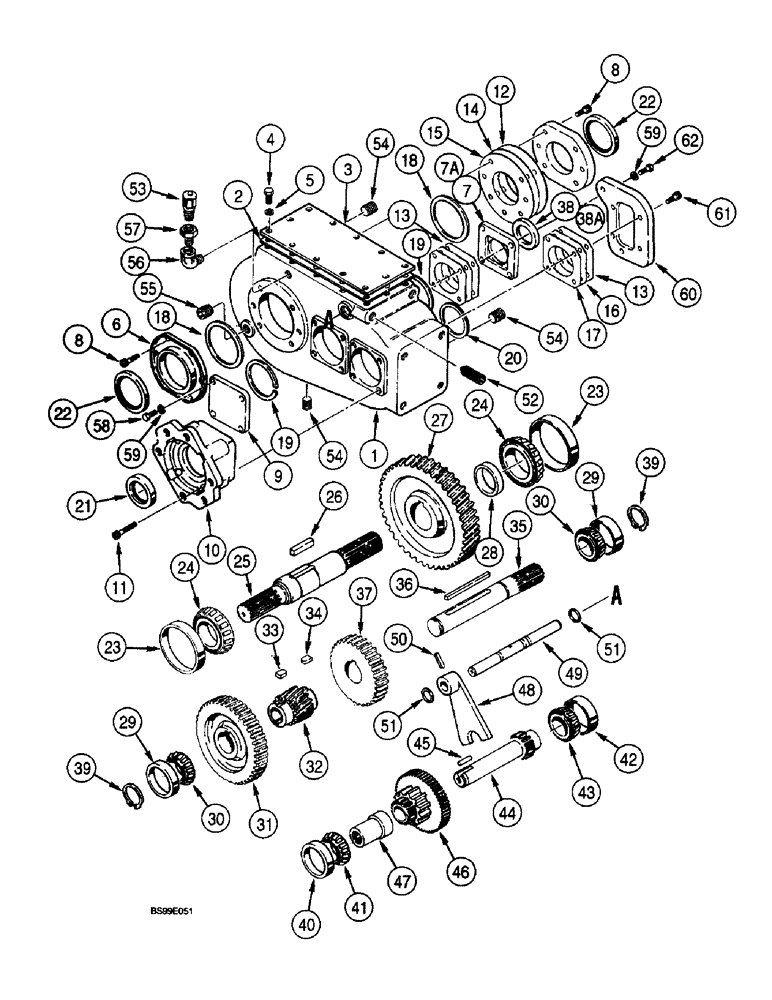

Запчасти Case 660 (6-33A) - TRANSMISSION ASSEMBLY - 112558A2 (06) - POWER TRAIN

112558A2

CASE

TRANSMISSION ASSEMBLY - ground drive, P.I.N. JAF0140589 and after, replaces H673650, see Fig. 6-26 for transmission mounting, Includes: Ref. 1 - 62

1шт.

1

103146A1

HOUSING

- transmission

1шт.

2

H362715

GASKET

- cover

1шт.

3

H362590

COVER

- housing

1шт.

4

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

12шт.

5

492-11038

LOCK WASHER,3/8"

12шт.

6

H393900

COVER

- output gear access

2шт.

7

117030A1

COVER

- intermediate gear access, open, cast, no longer available, order H438661 cover and H438666 seal, see Ref. 38A, Fig. 6-33A

1шт.

7a

H438661

COVER

- intermediate gear access, open, stamped steel

1шт.

8

165-144

BOLT,5/16" - 18 x 3/4"

- hex socket, 5/16 x 3/4 inch

12шт.

9

117028A1

COVER

- intermediate gear access, flange side, cast, no longer available, order H403022 cover

1шт.

9

H403022

COVER

- gear access, flange side, stamped steel

1шт.

10

103149A1

FLANGE

- input

1шт.

11

61-33824

HEX SOC SCREW,3/8"-16 x 1 1/2"

BOLT - hex socket, 3/8 NC x 1-1/2 inch

4шт.

12

H394817

SHIM,.005" Thk

(0.13 mm) .005" Thk

3шт.

13

H403139

SHIM,.005" Thk

(0.13 mm) .005" Thk

3шт.

14

H394833

SHIM,.007" Thk

(0.18 mm) .007" Thk

1шт.

15

H394841

SHIM,.020" Thk

(0.51 mm) .020" Thk

1шт.

16

H403147

SHIM,.007" Thk

(0.18 mm) .007" Thk

1шт.

17

H403154

SHIM,.020" Thk

(0.51 mm) .020" Thk

1шт.

18

H394866

BEARING

SPACER - ring, output bearing

2шт.

19

H403428

SNAP RING,#262, 2.475, Ext

SPACER - ring, intermediate gear bearing

2шт.

20

A150145

RING

- retaining, external

1шт.

21

H362731

SEAL

- input shaft

1шт.

22

H438662

SEAL

- output shaft

2шт.

23

130503H

BEARING CUP

CUP - tapered roller bearing, 3-17/64 inch OD

2шт.

24

636826R91

BEARING ASSY,44.45 mm ID x 51 mm OD x 25.4 mm

CONE - tapered roller bearing, 1-3/4 inch ID

2шт.

25

H438657

SHAFT

- output, transmission

1шт.

26

H373209

KEY

- 3/8 x 1-7/8 inch

1шт.

27

H403063

GEAR

- 56 teeth, output shaft

1шт.

28

H438663

SPACER

- output shaft

1шт.

29

A26746

BEARING CUP

CUP - tapered roller bearing

2шт.

30

A31229

CONE

- tapered roller bearing

2шт.

31

H389494

GEAR

- 55 teeth, intermediate

1шт.

32

H403055

GEAR SHAFT

GEAR - 14 teeth, intermeidate shaft

1шт.

33

H389650

KEY

- 1/4 x 3/8 x 3/4 inch, intermediate shaft gear

1шт.

34

H389668

KEY

- 1/4 x 3/8 x 1/2 inch, intermediate shaft gear

1шт.

35

H438658

SHAFT

- transmission, intermediate

1шт.

36

FH156620

KEY

- 1/4 x 3 inch, intermediate shaft

1шт.

37

103148A1

GEAR

- 39 teeth, intermediate

1шт.

38

117031A1

SEAL

- intermediate shaft, splined end, 1.628 inch OD, used with 117030A1 cast gear access cover, see Ref. 7 on Fig. 6-33A

1шт.

38a

H438666

SEAL

- intermediate shaft, splined end, 1.756 inch OD, used with H438661 stamped steel gear access cover, see Ref. 7A on Fig. 6-33A

1шт.

39

103-11112

SNAP RING,#112, Ext

Ring, Snap, , Intermediate shaft bearing #112, Ext

2шт.

40

G57451

BEARING, CUP

CUP - tapered roller bearing, outer

1шт.

41

G57452

ROLLER BEARING

CONE - tapered roller bearing, 1-3/8 inch ID, outer

1шт.

42

54630H

BEARING ASSY,1.25" ID x 2.5" OD x 0.8125"

CUP - tapered roller bearing

1шт.

43

40388

BEARING ASSY,26.987 mm ID x 20.64 mm

CONE - tapered roller bearing

1шт.

44

H438660

SHAFT

- transmission input

1шт.

45

H438664

PIN

- dowel, input shaft

1шт.

46

103147A1

GEAR

- cluster, input shaft

1шт.

47

H438659

BUSHING

- drive

1шт.

48

H374835

FORK

YOKE - cluster gear

1шт.

49

136259A1

ROD

- shifting

1шт.

50

438-11220

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

1шт.

51

116482A1

SEAL

- shifting rod

2шт.

52

H403436

PLUNGER

- spring

1шт.

53

A50096

VALVE

- relief

1шт.

54

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

- hex socket headless, 3/8 inch PT

3шт.

55

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

- hex socket headless, 1/2 inch PT, Oil level

1шт.

56

221-413

ELBOW,90 Degree, 3/8"-18, NPT

- street, 90 degree, 3/8 inch PT

1шт.

57

221-85

REDUCER,Hex, 3/8" x 1/8" NPT

- pipe, 3/8 male x 1/8 inch female

1шт.

58

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

59

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

60

117027A1

COVER

- closed, transmission input

1шт.

61

61-33116

HEX SOC SCREW,5/16"-18 x 1"

SCREW, , Closed cover Hex Soc Hd, 5/16"-18 x 1"

4шт.

62

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.
