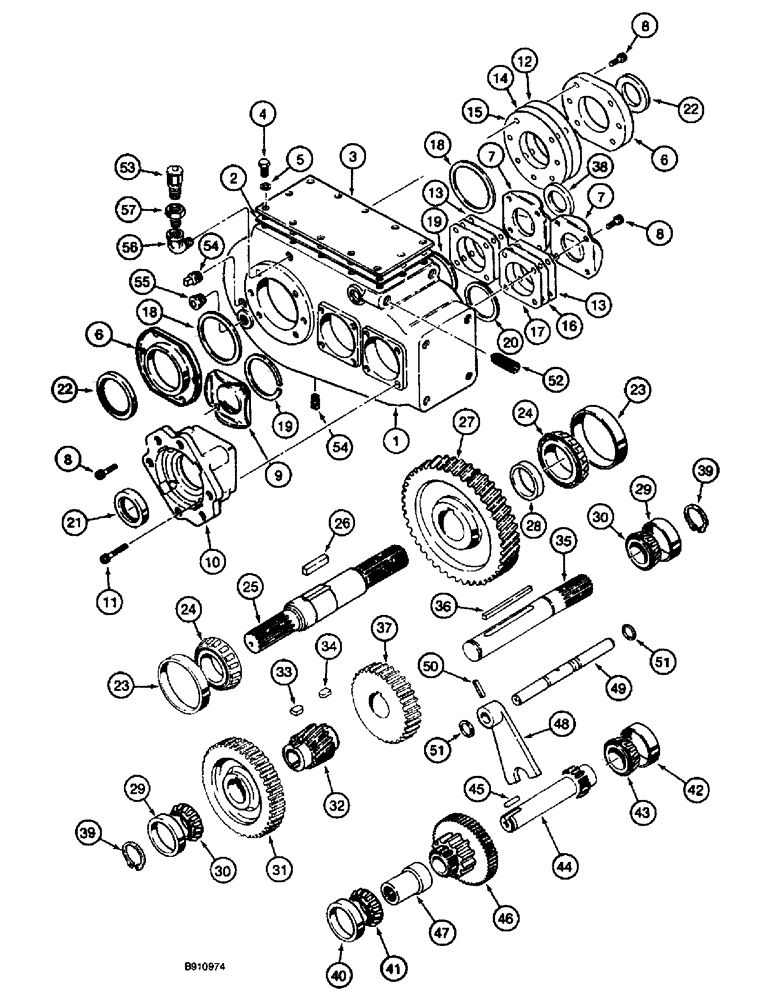

Запчасти Case 660 (6-30) - TRANSMISSION ASSEMBLY - H673650 (06) - POWER TRAIN

H673650

TRANSMISSION

ASSEMBLY - ground drive, prior to P.I.N. JAF0140589, replaced by 112558A2 transmission, Fig. 6-33A, see Fig. 6-26 for transmission mounting, Includes: Ref. 1 - 55

1шт.

1

103146A1

HOUSING

- transmission

1шт.

2

H362715

GASKET

- cover

1шт.

3

H362590

COVER

- housing

1шт.

4

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

12шт.

5

492-11038

LOCK WASHER,3/8"

12шт.

6

H393900

COVER

- output gear access

2шт.

7

H438661

COVER

- intermediate gear access

2шт.

8

165-144

BOLT,5/16" - 18 x 3/4"

- hex socket, 5/16 x 3/4 inch

24шт.

9

H403022

COVER

- gear access, flange side

1шт.

10

103149A1

FLANGE

- input

1шт.

11

61-33824

HEX SOC SCREW,3/8"-16 x 1 1/2"

BOLT - hex socket, 3/8 NC x 1-1/2 inch

4шт.

12

H394817

SHIM,.005" Thk

(0.13 mm) .005" Thk

3шт.

13

H403139

SHIM,.005" Thk

(0.13 mm) .005" Thk

3шт.

14

H394833

SHIM,.007" Thk

(0.18 mm) .007" Thk

1шт.

15

H394841

SHIM,.020" Thk

(0.51 mm) .020" Thk

1шт.

16

H403147

SHIM,.007" Thk

(0.18 mm) .007" Thk

1шт.

17

H403154

SHIM,.020" Thk

(0.51 mm) .020" Thk

1шт.

18

H394866

BEARING

SPACER - ring, output bearing

2шт.

19

H403428

SNAP RING,#262, 2.475, Ext

SPACER - ring, intermediate gear bearing

2шт.

20

A150145

RING

- retaining, external

1шт.

21

H362731

SEAL

- input shaft

1шт.

22

H438662

SEAL

- output shaft

1шт.

23

130503H

BEARING CUP

CUP - tapered roller bearing, 3-17/64 inch OD

2шт.

24

636826R91

BEARING ASSY,44.45 mm ID x 51 mm OD x 25.4 mm

CONE - tapered roller bearing, 1-3/4 inch ID

2шт.

25

H438657

SHAFT

- output, transmission

1шт.

26

H373209

KEY

- 3/8 x 1-7/8 inch

1шт.

27

H403063

GEAR

- 56 teeth

1шт.

28

H438663

SPACER

- output shaft

1шт.

29

A26746

BEARING CUP

CUP - tapered roller bearing

2шт.

30

A31229

CONE

- tapered roller bearing

2шт.

31

H389494

GEAR

- 55 teeth, intermediate

1шт.

32

H403055

GEAR SHAFT

GEAR - 14 teeth, intermediate

1шт.

33

H389650

KEY

- 1/4 x 3/8 x 3/4 inch, intermediate shaft gear

1шт.

34

H389668

KEY

- 1/4 x 3/8 x 1/2 inch, intermediate shaft gear

1шт.

35

H438658

SHAFT

- transmission, intermediate

1шт.

36

FH156620

KEY

- 1/4 x 3 inch, intermediate shaft

1шт.

37

103148A1

GEAR

- 39 teeth, intermediate

1шт.

38

H438666

SEAL

- intermediate shaft, splined end

1шт.

39

103-11112

SNAP RING,#112, Ext

Ring, Snap, , Intermediate shaft bearing #112, Ext

2шт.

40

G57451

BEARING, CUP

CUP - tapered roller bearing, outer

1шт.

41

G57452

ROLLER BEARING

CONE - tapered roller bearing, 1-3/8 inch ID, outer

1шт.

42

54630H

BEARING ASSY,1.25" ID x 2.5" OD x 0.8125"

CUP - tapered roller bearing

1шт.

43

40388

BEARING ASSY,26.987 mm ID x 20.64 mm

CONE - tapered roller bearing

1шт.

44

H438660

SHAFT

- transmission input

1шт.

45

H438664

PIN

- dowel, input shaft

1шт.

46

103147A1

GEAR

- cluster, input shaft

1шт.

47

H438659

BUSHING

- drive

1шт.

48

H374835

FORK

YOKE - cluster gear

1шт.

49

H438665

ROD

- shifting

1шт.

50

438-11220

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

1шт.

51

N9503

OIL SEAL

SEAL - shifting rod

2шт.

52

H403436

PLUNGER

- spring

1шт.

53

219-436

BREATHER,3/8" - 18 NPT, Short, W/ Washer

- straight, 3/8 PT x 1-1/2 inch, transmission

1шт.

54

221-3

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - square, 2 inch PT

2шт.

55

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

- hex socket headless, 1/2 inch PT

1шт.

56

221-413

ELBOW,90 Degree, 3/8"-18, NPT

- street, 90 degree, 3/8 inch PT, 90 degree, not included with transmission assembly

1шт.

57

221-85

REDUCER,Hex, 3/8" x 1/8" NPT

- pipe, 3/8 male x 1/8 inch female, not included with transmission assembly

1шт.
