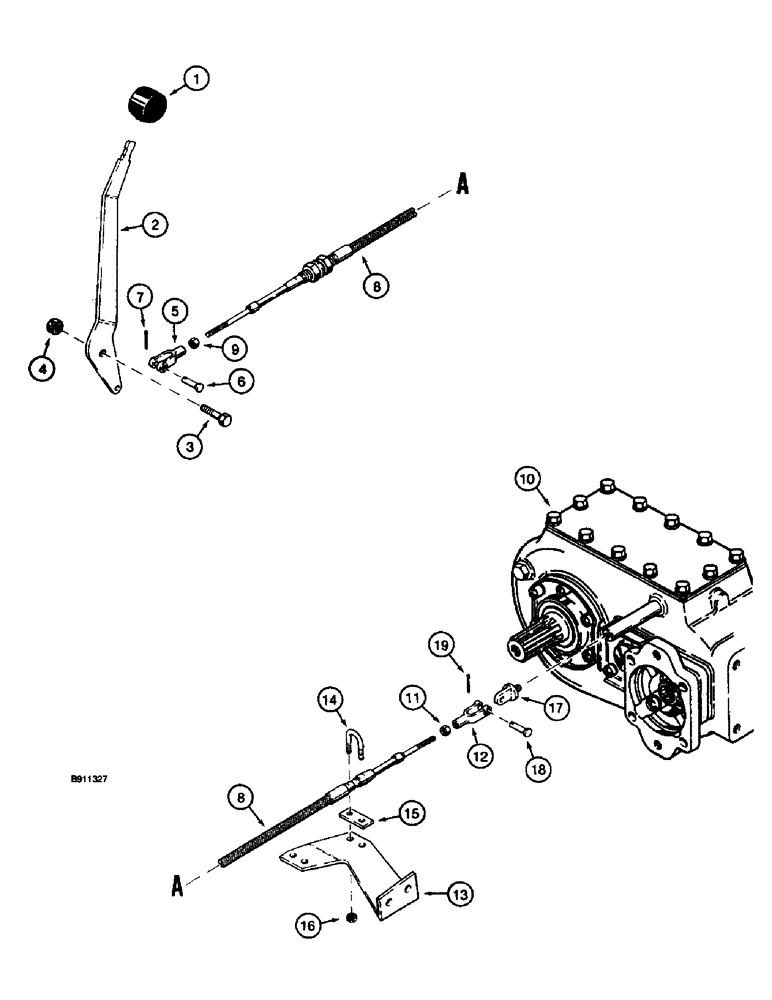

Запчасти Case 660 (6-28) - TRANSMISSION SHIFT CONTROL (06) - POWER TRAIN

1

A177438

KNOB

- transmission control lever

1шт.

2

H438602

HANDLE

LEVER - control, transmission

1шт.

3

H127357

BOLT

BOLT - hex, 3/8 NF x 1-5/16 inch, grade 8

1шт.

4

131-1326

JAM NUT,Jam, 3/8"-24

NUT - hex, jam, self-locking, 3/8 inch NF

1шт.

5

213-114

ADJUSTABLE CLEVIS,1/4" - 28

CLEVIS - adjustable, 1/4 inch NF

1шт.

6

427-4077

CLEVIS PIN,1/4" x .770"

PIN, CLEVIS, , Hardened 1/4" x .770"

1шт.

7

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

8

102693A1

CABLE

- transmission shift

1шт.

9

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam, 1/4 inch NF

1шт.

10

H673650

TRANSMISSION

ASSEMBLY - ground drive, parts list Figs. 6-30 and 6-32

1шт.

11

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam, 1/4 inch NF

1шт.

12

213-114

ADJUSTABLE CLEVIS,1/4" - 28

CLEVIS - adjustable, 1/4 inch NF

1шт.

13

H439332

BRACKET

- cable mounting

1шт.

14

H166421

HARDWARE

U-BOLT - 1/4 inch NC

1шт.

15

H373779

LARGE PLATE

SPACER - cable

1шт.

16

232-4114

LOCK NUT,1/4"-20, GC

NUT, LOCK, 1/4"-20, GC

2шт.

17

H317206

BOLT

- 5/16 NF x 1-1/4 inch

1шт.

18

427-4077

CLEVIS PIN,1/4" x .770"

PIN, CLEVIS, , Hardened 1/4" x .770"

1шт.

19

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.
